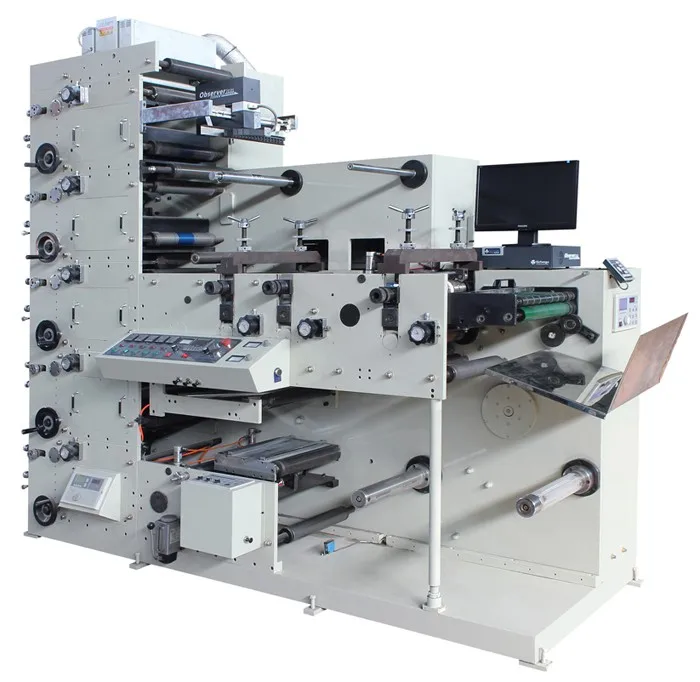

RY-320-5D 5-colour Flexo Label Printing Machine

Product details
Dimensions(L*W*H):mm;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Weight:3500kg;
Color & Page:Multicolor;Max.Web width:320mm;
Printing speed:60m/min;Plate Type:Flatbed Printer;
Certification:CE;Printing girth:175-355 mm;
Gross Power:10.5kw;Port:shanghai;
Place of Origin:Zhejiang China;Max.Printing width:310mm;
Packaging Detail:wooden case each RY-320-5D 5-colour Flexo Label Printing Machine;Type:Flexographic Printer;
Automatic Grade:Automatic;Printing colour:5 Colours;
Supply Ability:12 Set/Sets per Month;Voltage:380V;
Usage:Label Printer;Brand Name:Printyoung;
Name:RY-320-5D 5-colour Flexo Label Printing Machine;Payment Terms:L/C,T/T;
Product Description

  RY-320-5D 5-colour Flexo Label Printing Machine



Characteristics:

1.Adopt the anilox roller to spread ink.

2.Unwinding and rewinding are controlled by magnetic power brake,cluth.

3.Each printing unit adopt 360°for registration.

4.Each printing unit have one IR drier.

5.The rubber roller can break away automatically while parking,and running at a low speed,in order to avoid ink being dry.

6.The main motor is adopted the import stepless regulation of frequency conversion.

7.Unwinding,web guiding,printing,IR drying,varnishing(UV),laminating,rotary die cutting,discharging the

waste and rewinding can be finished in me process.This is an ideal machine for printing factories to print

many kinds of labels.



Main Technical Variables:



Model

RY-320-5D

Printing speed

60m/min

Printing colour

5 Clolours

Max.Web width

320mm

Max.Printing width

310mm

Max.Unwinding diameter

600mm

Max.Rewinding diameter

550mm

Printing girth

175-355 mm

Precision of chromatography

±0.10mm

Machine weight

3500kg

Total paver

10.5kw
