FM7.5 Self-loading Concrete Cement Mixer

Product details
After-sales Service Provided:No overseas service provided;Gross:16000kg;
Warranty:1 year;Supply Ability:1000 Set/Sets per Month Concrete mixer truck;
Chassis:Off Road, China top brand axle;Power(W):85kW/2200rpm;
Tire:6.5m/R;Brake:Hydraulic Brake;
Certification:ISO SGS CE;Port:Qingdao,Shanghai,Ningbo,Shenzhen;
Place of Origin:Shandong China;Rotation Speed:10~16r/min;
Net:8800kg;Dimension(L*W*H):7011x2441x3310(mm);
Transmission:Hydraulic;Wheelbase:2155mm;
Payment Terms:L/C,D/P,T/T,Western Union;Brand Name:China Coal;
Condition:New;Packaging Detail:carton box, plastic bags, wooden cases or as your requirement;
Weight:8800kg;
Product Description



Introduction of FM7.5 Self-loading Concrete Cement Mixer

1.The blades of FM7.5 Self-loading Concrete Cement Mixer are made of high-strength 16Mn plate, well anti-wear performance, good

spiral curve homogeneity, upper leaves with curve and weld reinforcement to increase

the life of blades.

2. High strength steel plate, enhance vehicle load capacity.

3. Small capacity mixing drum design, the angle is lower than same profession, effectively

reduce the gravity of vehicles , improve the driving safety.

4. Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed

faster and mixing performance better.

5. Widely adopts the automatic welding, weld thickness reduction of nearly 15%, the vehicle

with high stability.

6. Using professional mature chassis, to ensure the vehicle with high-efficiency performance.

7. Focus on detail, humanized design, fully meet the personalized requirements of customers.

Parameter of FM7.5 Self-loading Concrete Cement Mixer



Self-loading concrete cement mixer technical details

Mixing drum

Mixer capacity 7.5m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 300 degree.



Engine details

Cummings model 4BTA3.9-C110, rated power/turns: 82kw (110HP)/ 2200rpm.



Drive  system

hydraulic component( variable stroke pump) : Danvers
two grades gear transmission : road/off road, 4 wheel drive

Speed

low gear speed: 0-9.5km/h, high gear speed : 0-28km/h

Cabin

front cabin with rops &fops design

Hydraulic sytem

2 variable stroke pumps provide power separately to car drive and mixer.

2 constant rate pumps provide power to drum slewing , brake, water.

cooling: water/air

Joystick

all working operation designed in one joystick

Bucket

capacity: 0.6m3 hydraulic controlled door

Chute

adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement

Water sytem

water pump with high pressure washing gun

Climbing angle

30degree with full load

Brake

wet brake, parking brake with gear box

Tires

off-road engineering tire 16/70-20 PR16

Steering

front axle steering, all hydraulic

inner steering radius: 1988mm/4130mm

outer steering radius:3767 mm/6030mm

Electric system

battery :2X12V 120Ah, provide lighting and ignition

Fuel tank

110L

Hydraulic oil tank

80L

Carframe

all steel welding

Weight

off load:8t, full load :18t

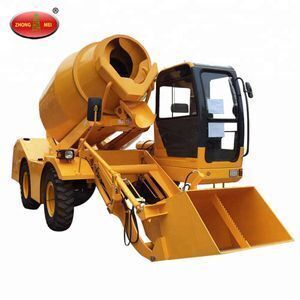

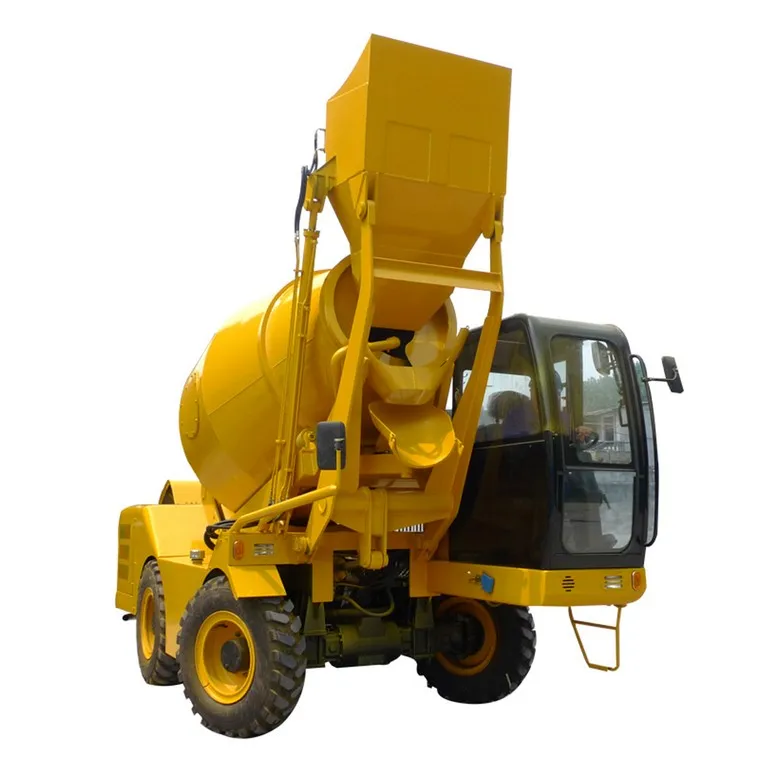

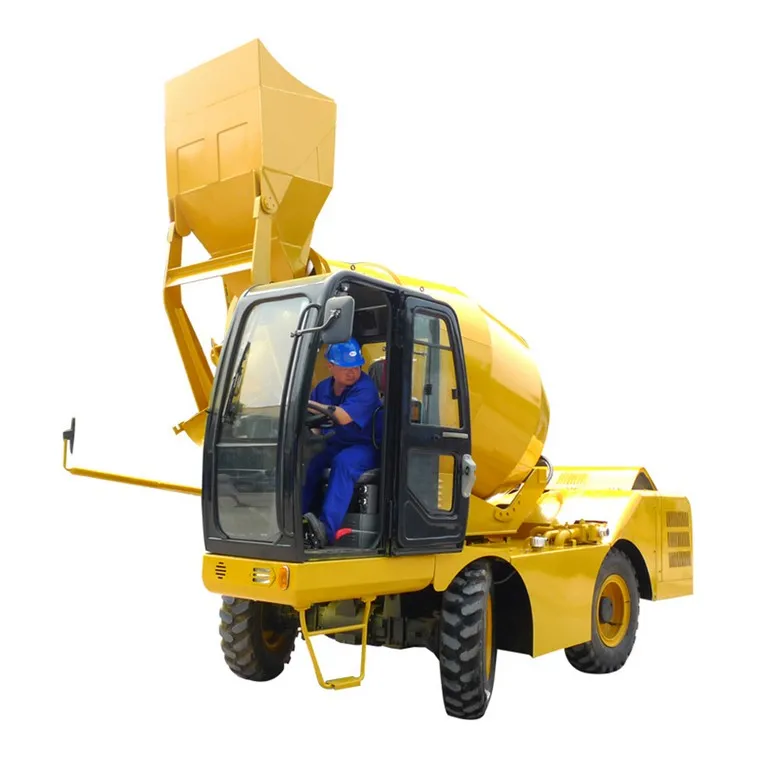

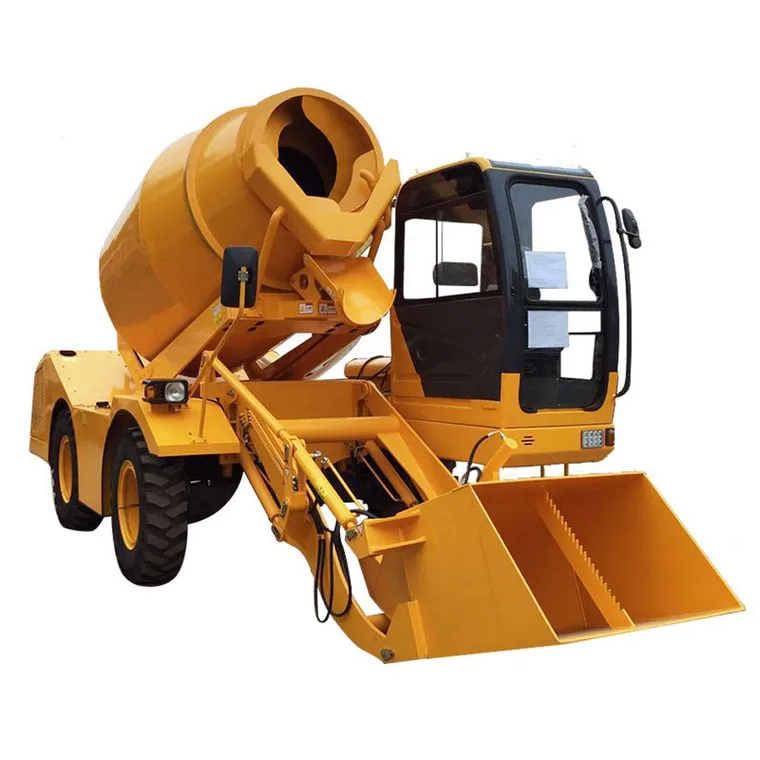

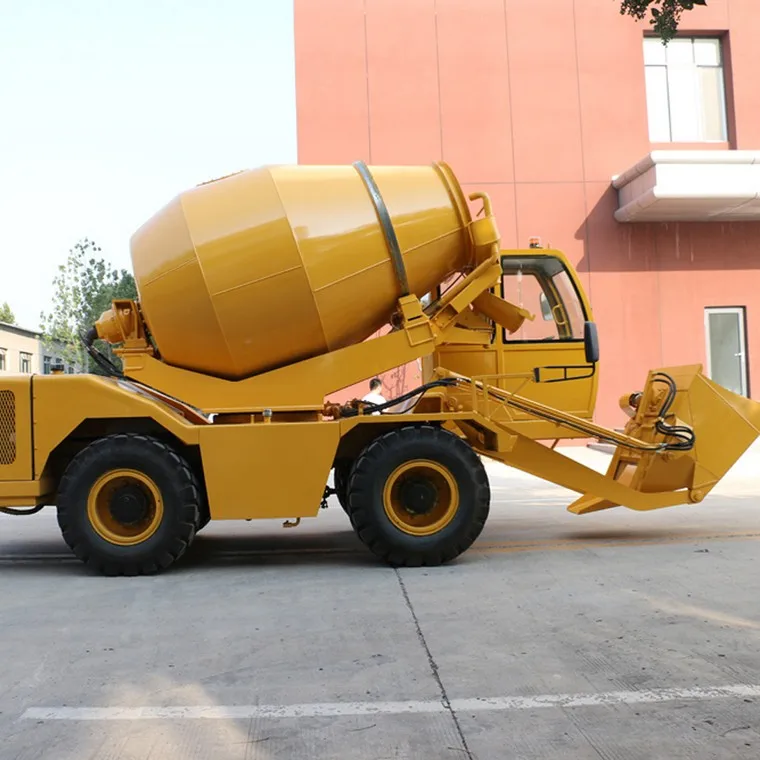

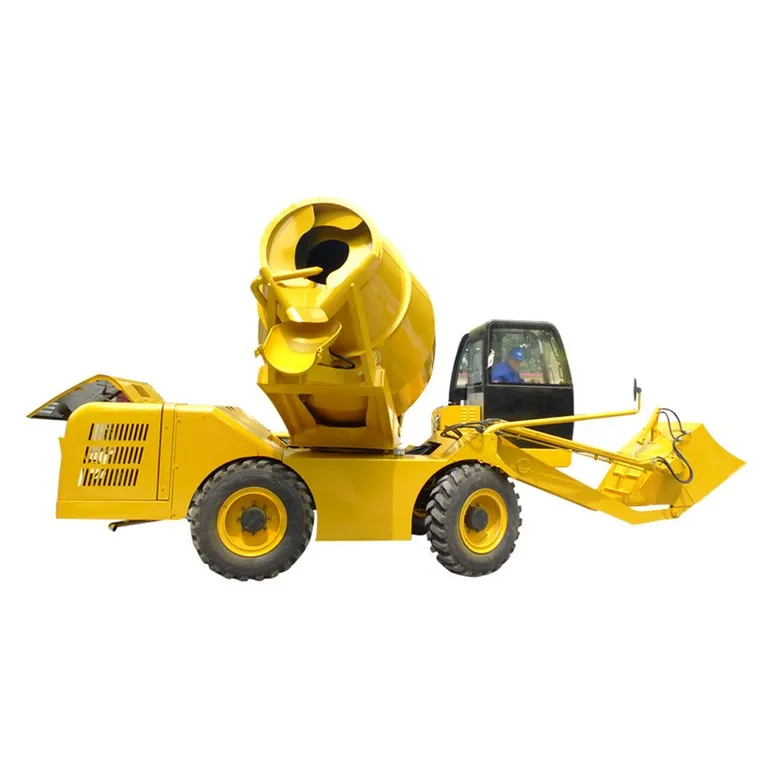

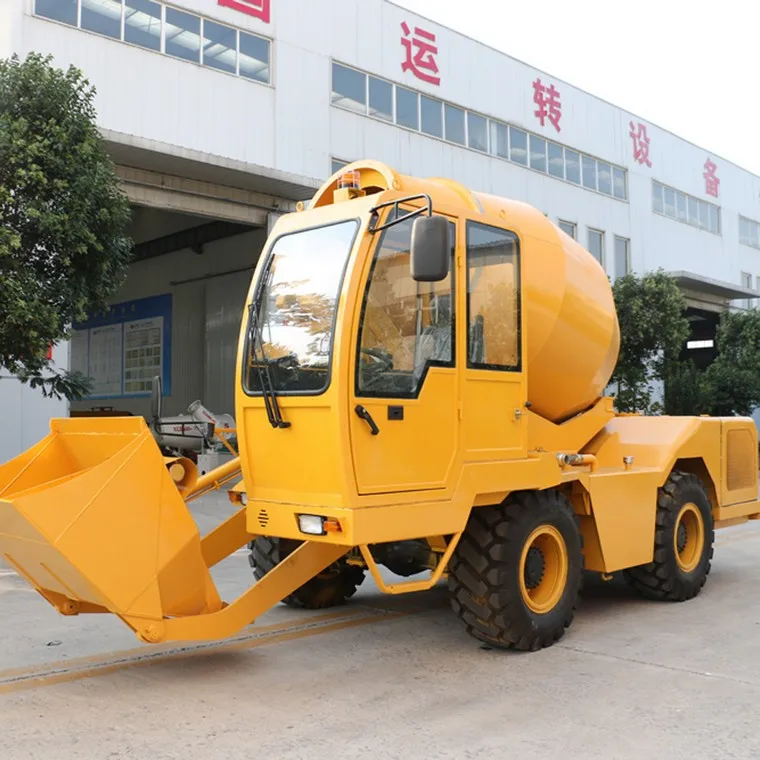

Pictures of FM7.5 Self-loading Concrete Cement Mixer
