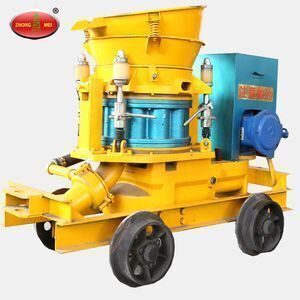

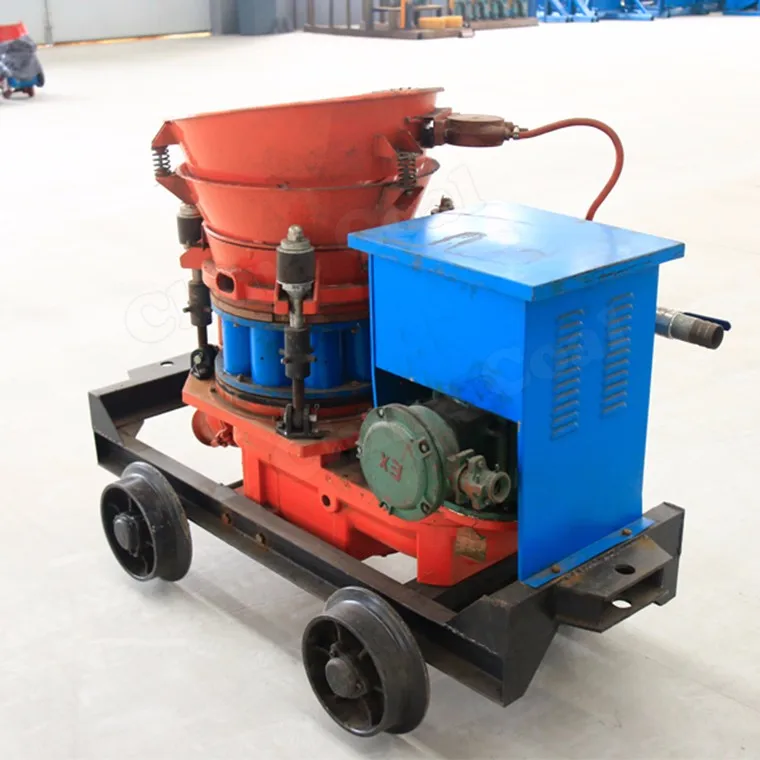

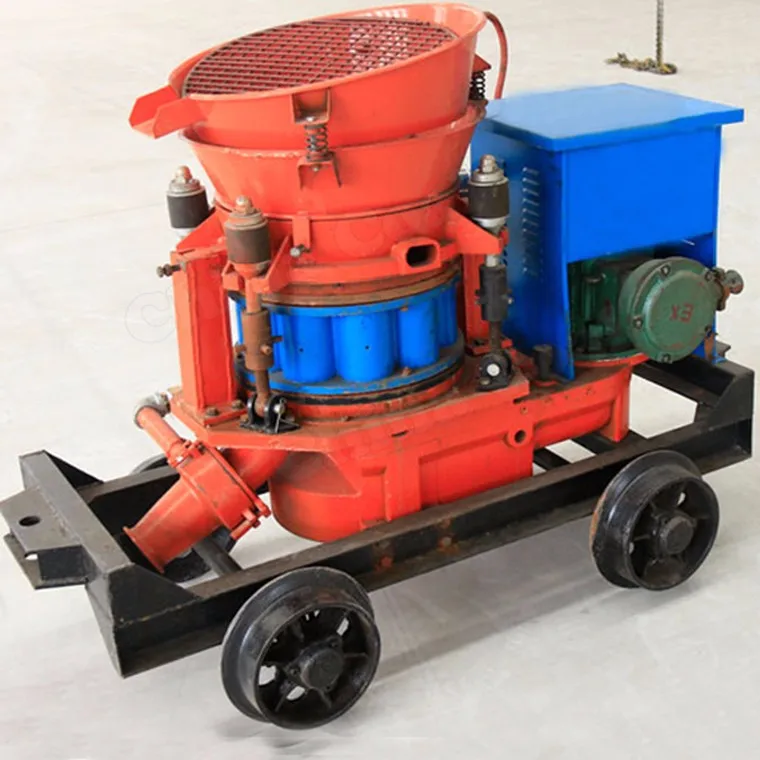

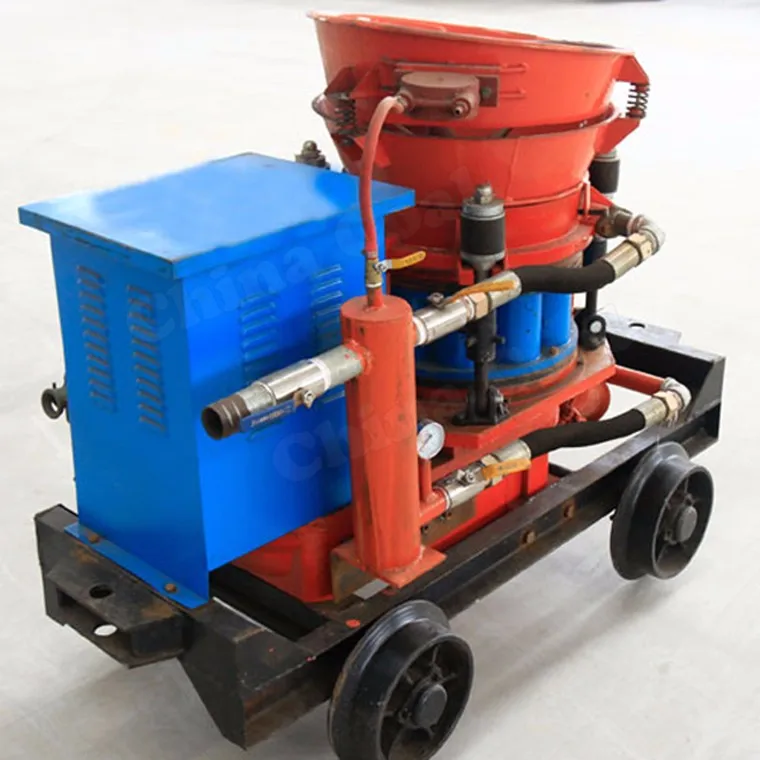

PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine

Supplier: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Region: Shandong, China
Contact: Ms Julien Zhu
Price: $1500.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Port:	Qiingdao;	Max. Conveying Distance:	Horizontal:200m Vertical: 20m;
Condition:	New;	Brand Name:	China Coal;
Shotcrete Machine:	Shotcrete Machine;	Packaging Detail:	standard export packaging for PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine;
Air Consumption:	8-10;	Payment Terms:	T/T;
UNIQUE SELLING POINT:	High operating efficiency;	Max Aggregate Size:	20;
After-sales Service Provided:	Video technical support;	Supply Ability:	5000 Set/Sets per Month PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machi;
Hose Inner Diameter:	64 mm;	Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;
Place of Origin:	Shandong China;	Warranty:	12 Months;
Weight:	700kg;	Dimension(LWH):	15007001280;
Certification:	ISO,TUV,BV;	Power(W):	7.5kw;
Voltage:	380,660;	After-sales Service Provided:	No overseas service provided;

PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine Introduction

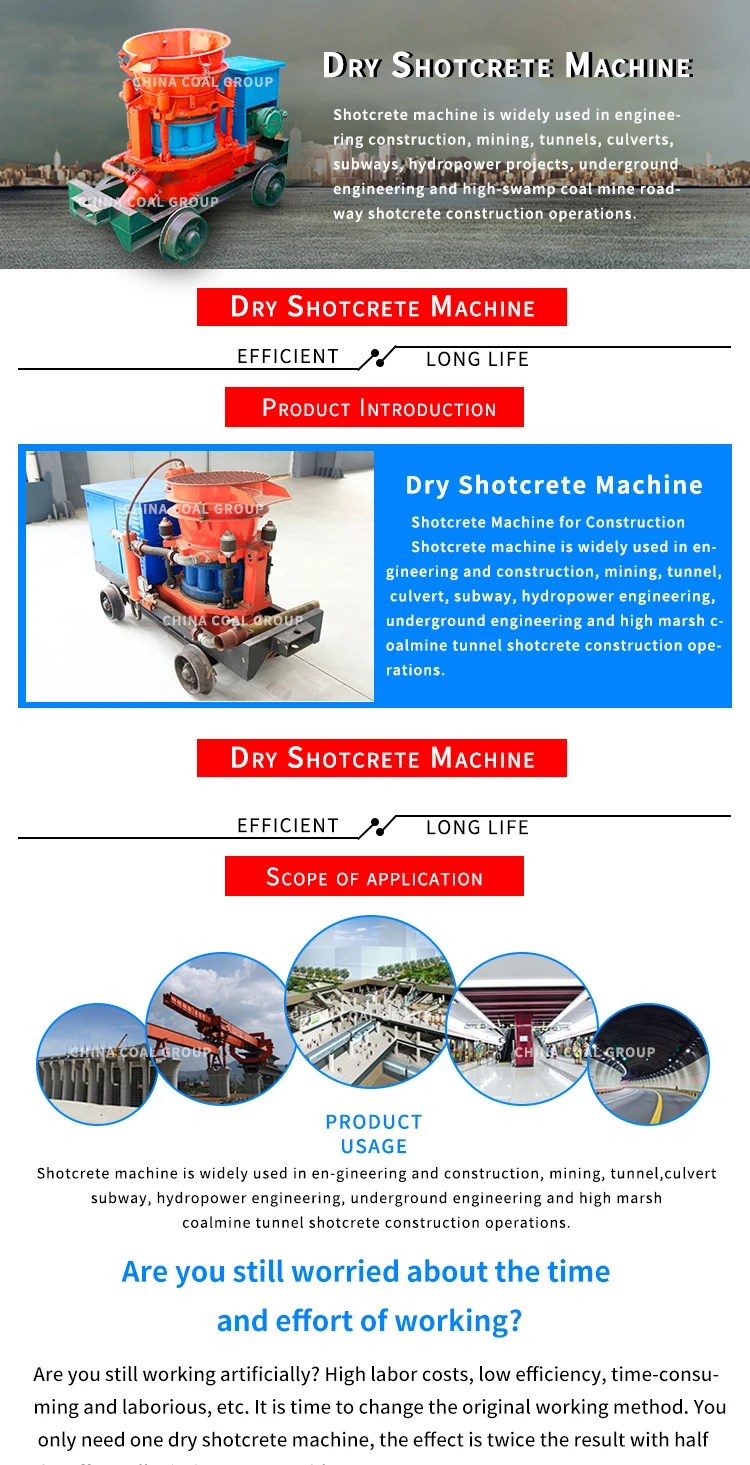

PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine Special for the coal mine and construction

Adopting Special Anti-explosion Motor zmwm01

Factory Price

-ODM Offer

This is a kind of Coal Mining Gunite Equipment-Shotcrete Machine,especially for mine.

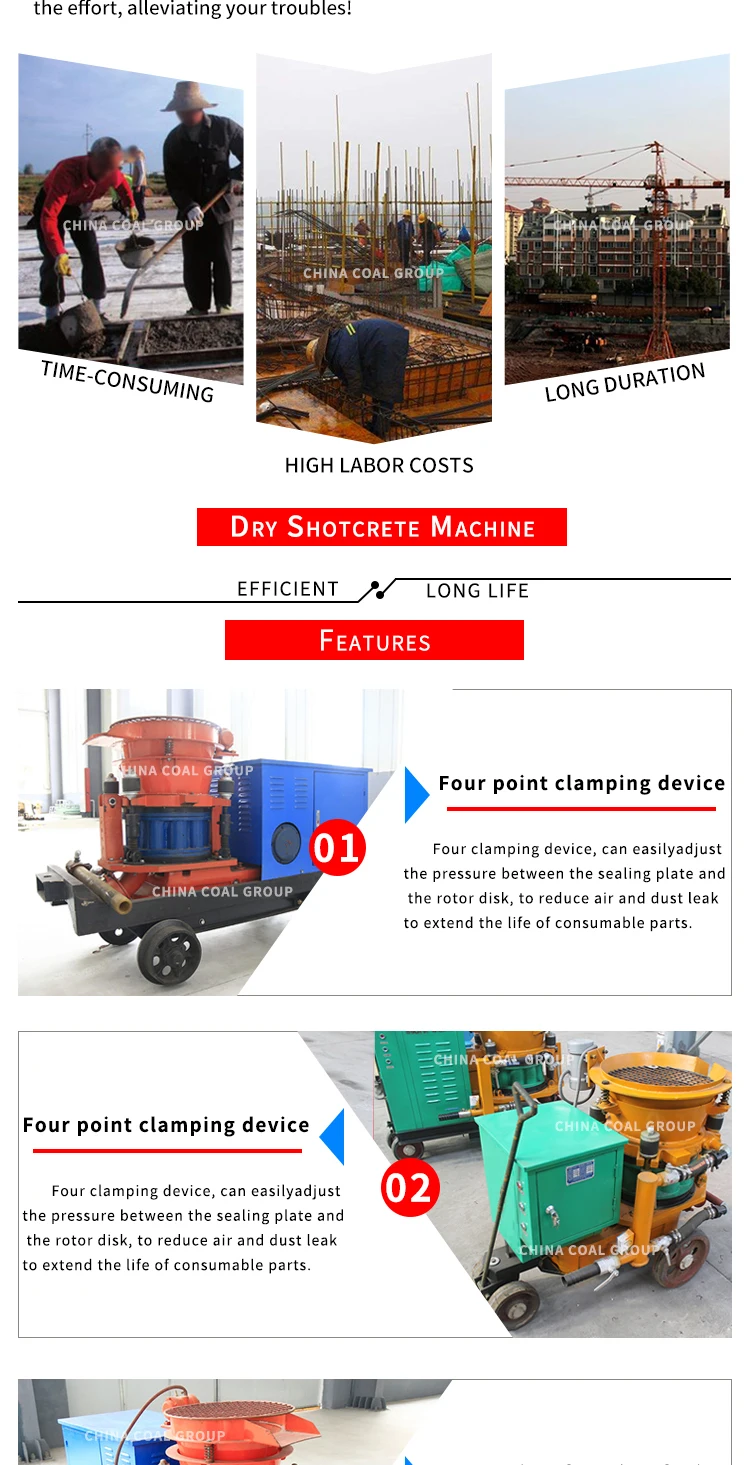

PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine Feature

1. Environmental:It can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers’ health.

2. rebound less to strengthen sprayed layer.
3. It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.

4.Unique vibrating hopper feeds the concrete into the dosing system smoothly.
5.Standardized dosing pump can add exactly concrete accelerator.

6. We can change the color according to your actual requirements.

7. Custom the voltage motor based on your country.
8 .The tread of mine rail wheel have 600mm or 900mm for your choice.

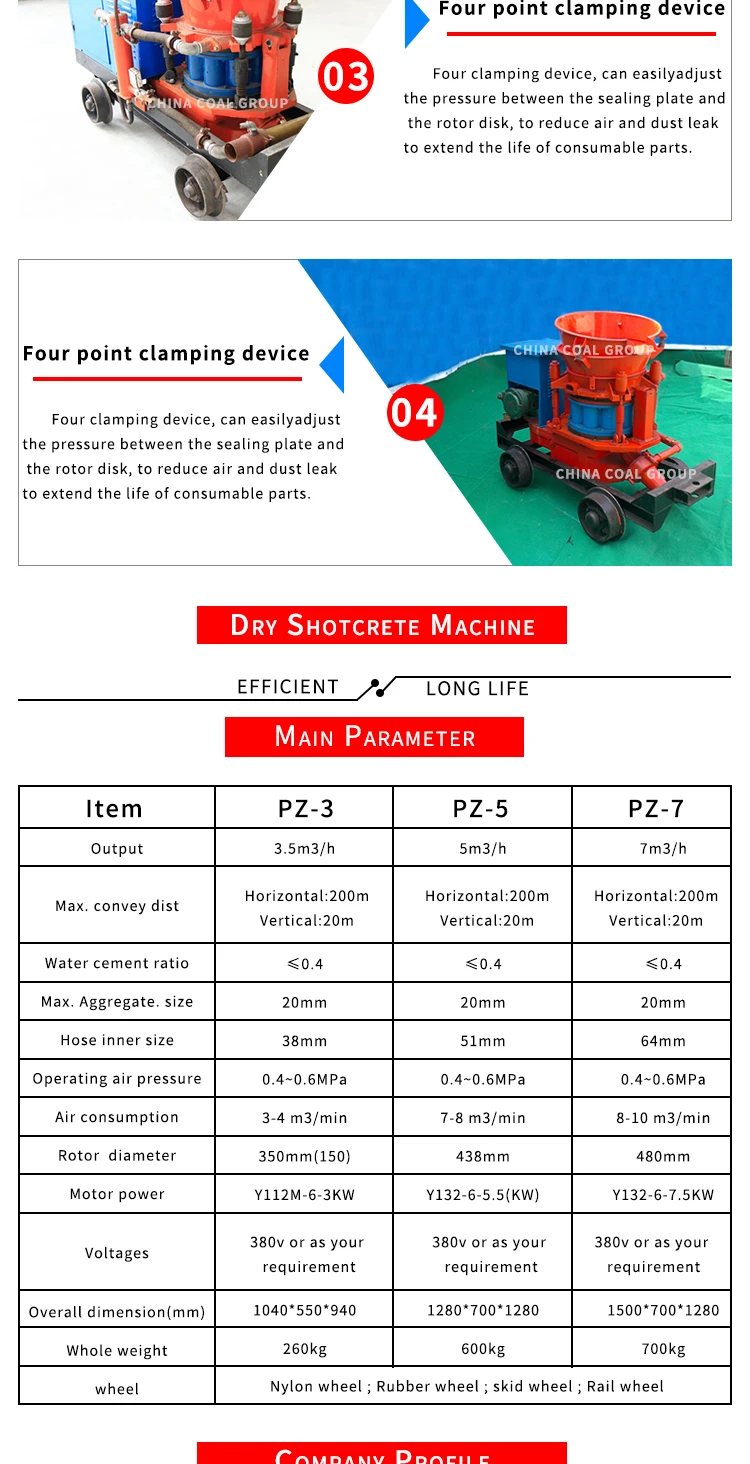

PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine Technical Parameter

PZ Series Dry Mix Concrete Cement Gunite Machine Shotcrete Machine
Model	PZ-3	PZ-5	PZ-7
Capacity (m3/h)	3.5	5	7
Max. Conveying Distance (Horizontal,Vertical m)	200,20	200,20	200,20
Use material ratio(Cement/Sand)	2001-3-5	2001-3-5	2001-3-5
Use material water-cement ratio	≤0.4	≤0.4	≤0.4
Max. Aggregate Diameters (mm)	20	20	20
Feeding pipe inner diameters(mm)	38	51	64
Rotor Diameter(mm)	350	438	480
Working pressure (MPa)	0.4-0.6	0.4-0.6	0.4-0.6
Air consumption (m3/min)	3-4	7-8	8-10
Motor Model	Y112M-6-3KW	Y132-6-5.5KW	Y132-6-7.5KW
Voltage(V) (according to customer's special requirement)	380,660,etc	380,660,etc	380,660,etc
Overall size (mm)	1040550940	12807001280	15007001280
Overall weight (kg)	260	600	700
