Mining Electric Locomotive / Electric Locomotive Motor On Sale

Supplier: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Region: Shandong, China
Contact: Ms Julien Zhu
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	8 TON;	Controller:	AC frequency conversion;
Model:	CAY/CTY;	Transmission:	Single level Spur gearing;
Max. speed:	20km/h;	Speed (km/h):	10km/h;
Loading Port:	Qingdao;	Place of Origin:	China;
Wheel Diameter:	680;	Horsepower:	2*22;
Payment Terms:	D/P,T/T,Western Union;	Service:	OEM Service;
Brand Name:	chinacoal;	Packaging Detail:	Export packaging, or according to customer needs of electric locomotive;
Color:	Customer's Requirement;	Product Name:	electric locomotive;
Dimensions (L x W x H) (mm):	446010601590;	Supply Ability:	500 Set/Sets per Month;
Port:	tianjin/qingdao/shanghai/ningbo/dalian;	Fuel Type:	Electric;

Introduction of mining electric locomotive/electric locomotive motor

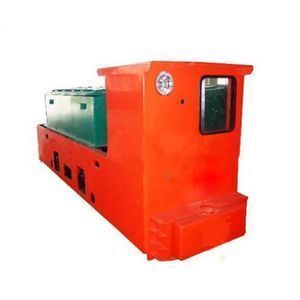

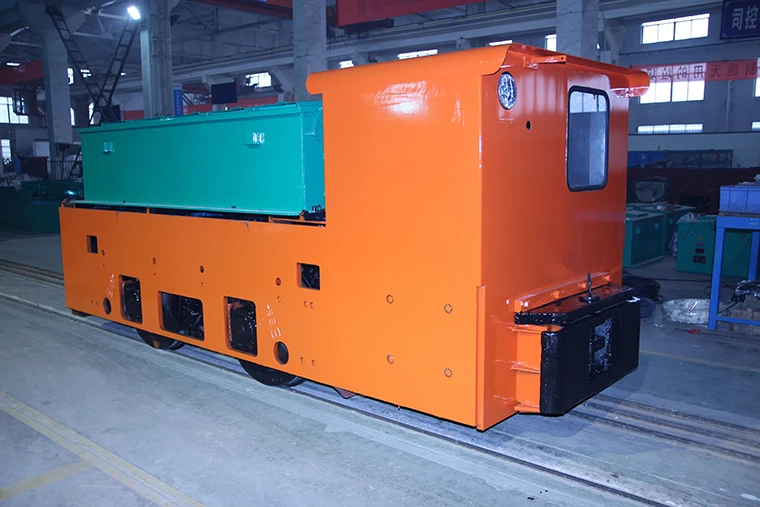

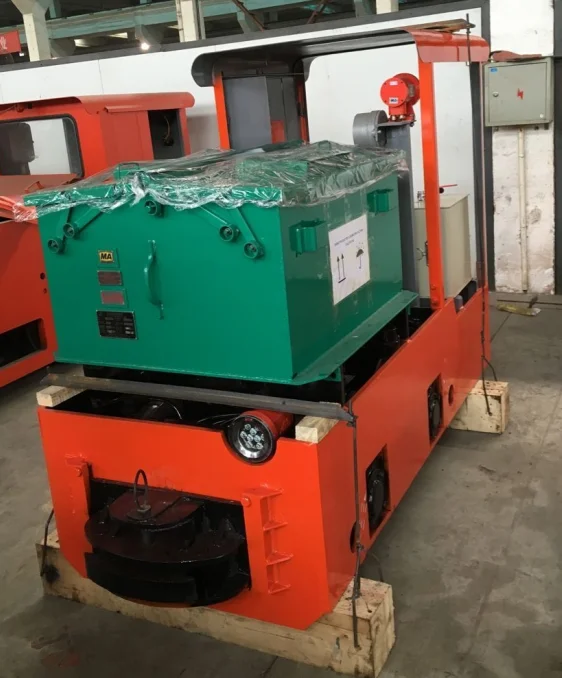

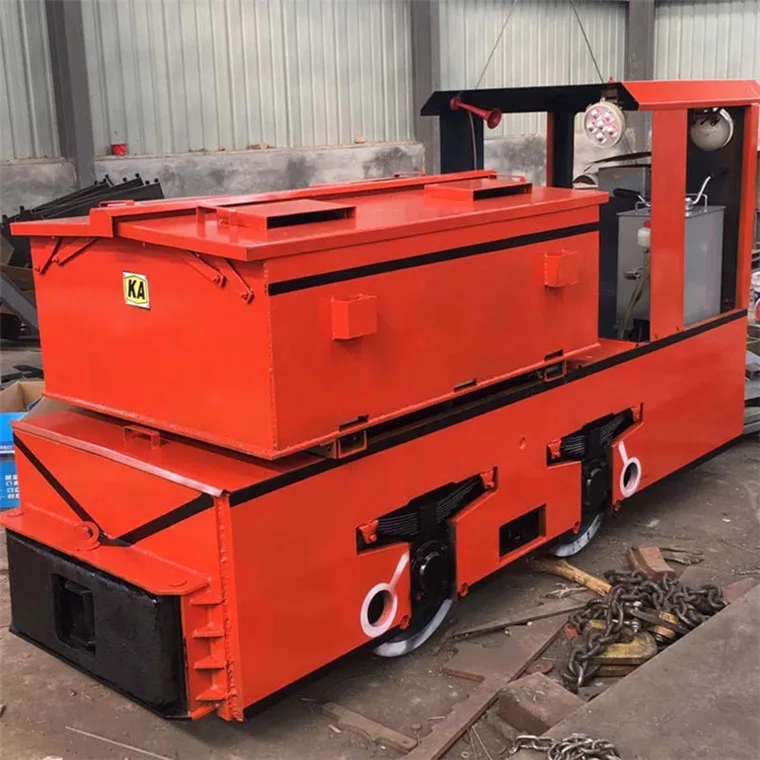

8 ton Underground Mine Battery Locomotive for mine is powerful with great tractive effort , heavy duty loading capacity and climbing and moving smoothly .

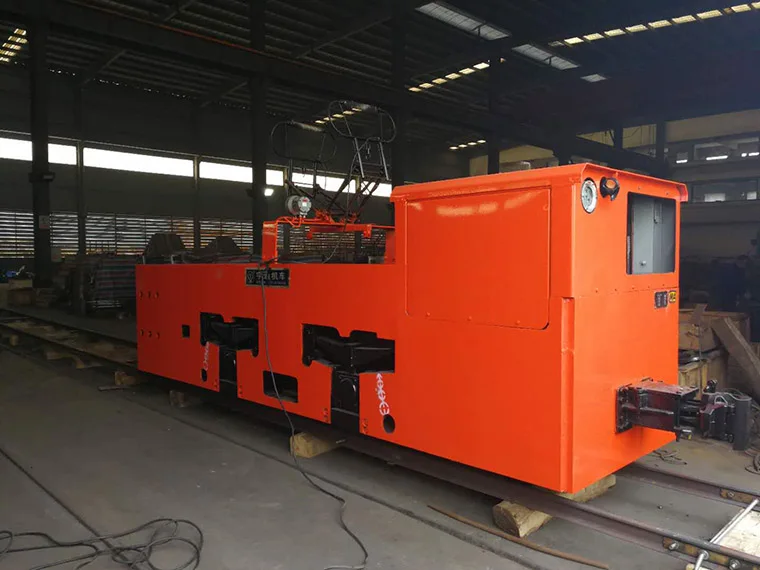

Basing on special advantage in the field of mining equipment control system and advanced technology of AC frequency conversion , we have developed wide range of electrical locomotives :battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm. with the unique feature such as the cab available in three designs : one side type , central type and in Tandem Operation type ; Locomotives with Radio Remote Control ; and Explosion proof locomotive. some of Models passed MA certificate , mainly service for tunneling , mining , shield construction and related industrial applications . All locomotives are track tested prior to shipment to ensure reliable operation and safe control.
Braking control system is safe , intelligent , reliable and easy to operate .
Less maintenance requirements.
Energy-saving , up to 25-30% energy saving compared to DC driving type.
Eco-Friendly because its less emission .

Parameter of mining electric locomotive/electric locomotive motor

locomotive Model No. specifications	CAY8/6GP	CAY8/7GP	CAY8/9GP
Adhesive / total weight (t)	8	8	8
Track gauge (mm)	600	762	900
Wheelbase (mm)	1100	1100	1100
Wheel diameter over tread	680	680	680
Coupler height over Steel rail (mm)	320/430	320/430	320/430
Min Curve radius (m)	7	7	7

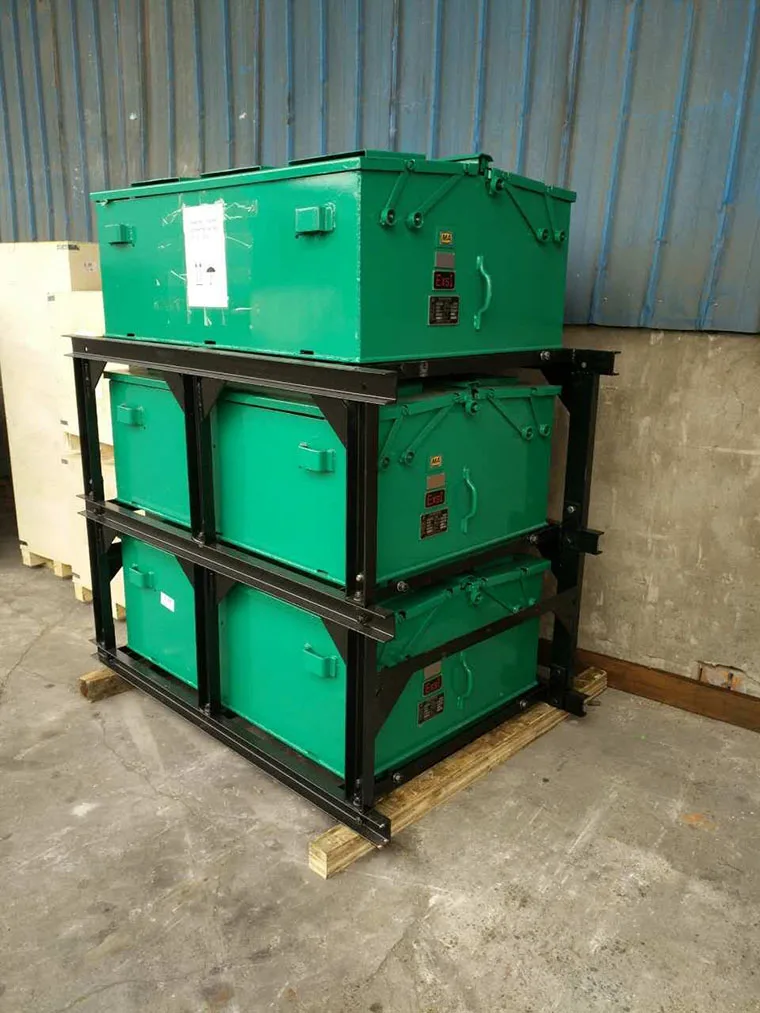

Battery volt rating (V)	132(440Ah)	140(440Ah)	192(440Ah)
Braking method	Mechanical and electrical	Mechanical and electrical	Mechanical and electrical
Max tractive effort (KN)	22	22	22
Max speed (km/h)	20	20	20
Rated speed per hour (km/h)	10	10	10
Power of traction Motor (KW)	2*22	2*22	2*22
Transmission	Single level Spur gearing	Single level Spur gearing	Single level Spur gearing
Controller	AC frequency conversion	AC frequency conversion	AC frequency conversion
Over all dimensions (mm)	446010601590	440013401590	446013401590

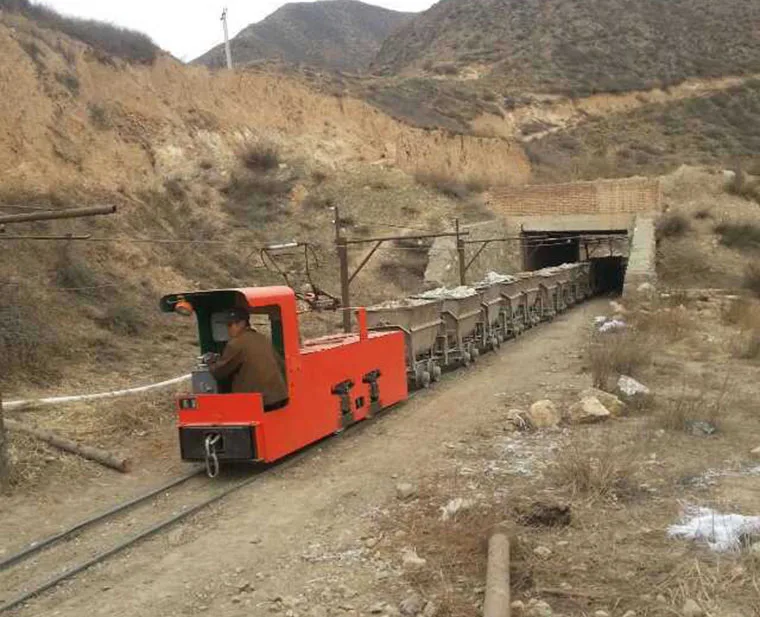

Service & Application	Mucking in mining & tunneling	Mucking in mining & tunneling	Mucking in mining & tunneling
