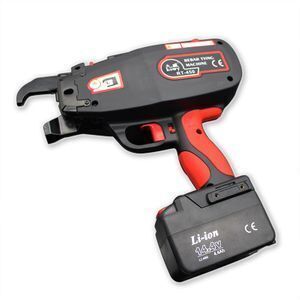

Top supplier super electric machine portable cordless rebar strapping machine

Supplier: Ninghai Three Yuan Electric Tools Co., Ltd.
Region: Zhejiang, China
Price: $400.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Battery Type:	Li-ion;	Wraps per knot:	2-3 Wraps;
Selling Units:	Single item;	Applicable Rebar Size:	4-45mm;
Single package size:	48.5X38.5X13.5 cm;	Machine Net Weight:	2.67kg;
Charging Time:	70 minutes;	Name:	electric rebar strapping machine;
Wire length per tying:	60-82cm;	Single gross weight:	8 KG;
Each charge can be knotted:	3500knots;	Machine Size:	283010.5cm;

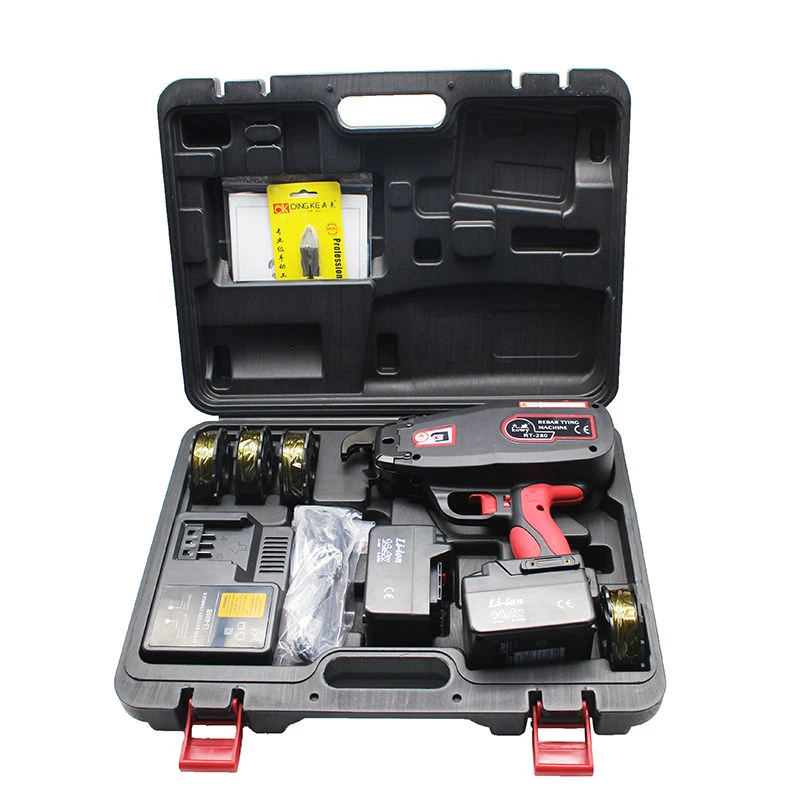

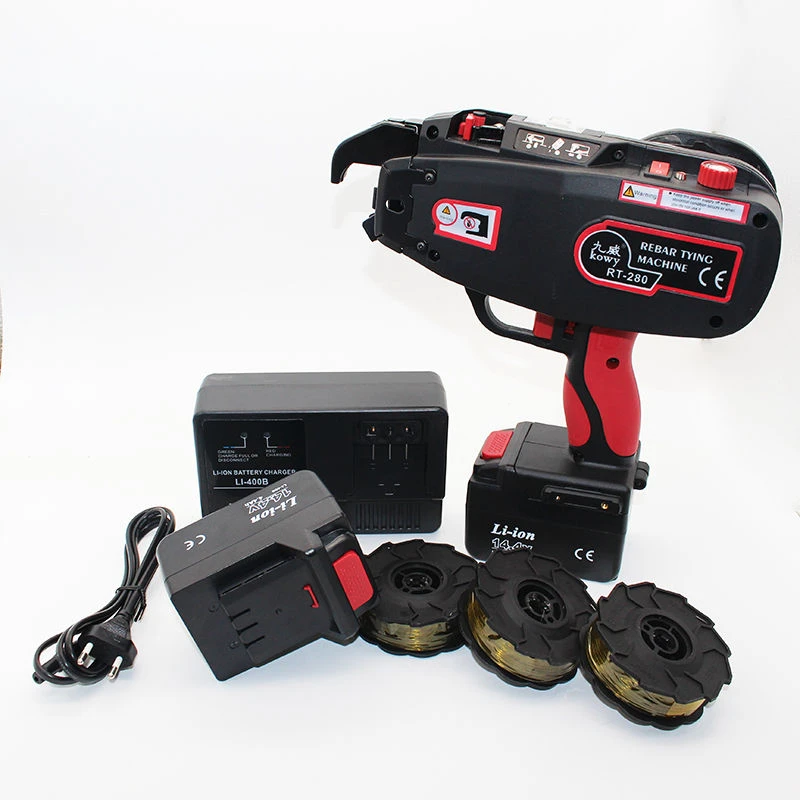

Package Type:	1.one year warranty for the machine with CE certificate 2.One set package includes: one machine two pcs batteries one charger one user manual one pliers four rolls of wire coils one plastic box one gift box 3.The package: after plastic box is a small carton then 3 or 2 pcs into a big carton.;

Product Description

Product Application

Our rebar-tying machine has nice appearance,fimcyional, it is handhold battery type and smartrebar tying machine.The chips was built-in,it could be tying the rebar automatically .widely used in the construction site to replace the handwork. The feature of the product ti moree rapidly,safer,simple and substantiallu to lower the strength of hard working.It is the best machine in construction site for tying the rebar.

Large assortment hand strapping machine steel tying tools
Model No.	RT280	RT450	RT580
Net Weight	2.6kg	2.66kg	2.76kg
Gross Weight	7.8kg	8kg	8kg
Battery type	LI-ion	LI-ion	LI-ion
Charging time	70 minutes	70 minutes	70 minutes
Wire diameter	0.8 mm	0.8 mm	0.8 mm
Length per coil	95-100 m	95-100 m	95-100 m
Weight per coil	0.40 kg	0.40 kg	0.40 kg
Wraps per knot	2 wraps-3wraps	2 wraps-3wraps	2 wraps-4wraps
Applicable rebar size	4-28 mm	8-45 mm	8-58 mm
Wire length per tying	43-58 cm	60-82cm	102-128 cm
Ties per roll of wire	230 knots	180 knots	95 knot
Ties per charging	3500 knots	3500 knots	3500 knots

Main Features

Automatic rebar strapping machine is a hand-held battery rapid rebar strapping tools. Can be widely used in the field of construction engineering, instead of manual binding steel. Respectively using 9.6v Ni-MH battery and 14.4v lithium battery, hit a knotlashing time of about 0.8 seconds,andcould be work3500 knots per time charging. Battery charging time of about 70 minutes. A plate of wire length of about 100 meters. Rebar strapping greatest feature is fast and convenient, and its efficiency is 5-6 times the efficiency of workers, you can save a lot of manpower, but also greatly reduce labor intensity.

Certifications

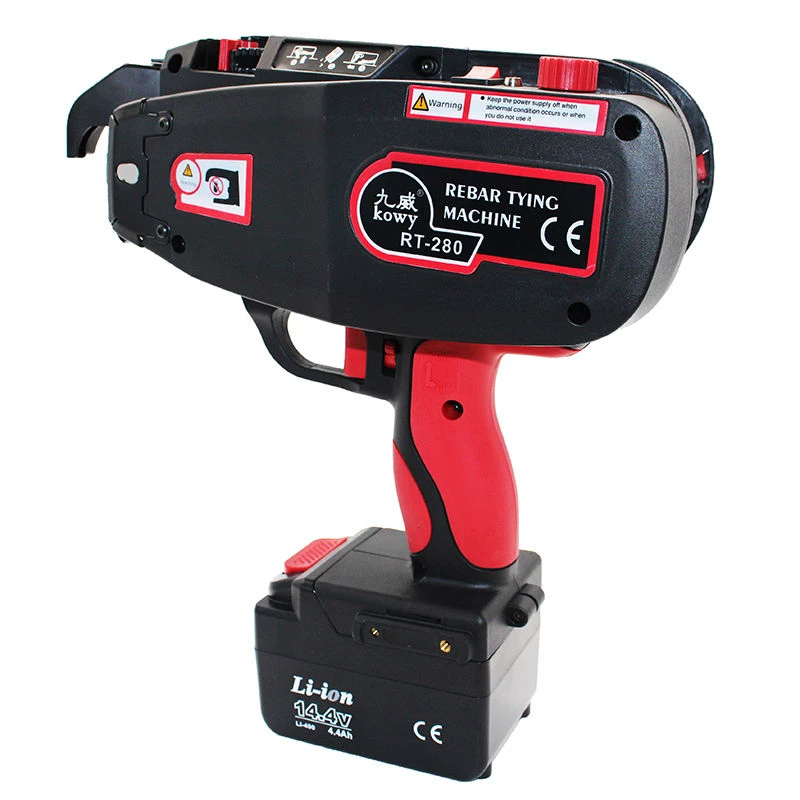

Detailed Images

^{THE MACHINE USE DC 14.4V LI-ION BATTERY AND COULD BE WORK 3500KNOTS PER TIME CHARGING.}

^{THE CHARGE TIME IS 70MINUTES. THE TOTAL LENGTH OF WIRE ROLL IS 100. THE BIGG EST FEATURE OF THE MACHINE IS EFFICIENT,CONVENIENT;THE EFFICIENCY OF THE MACHINE IS 2-3 TIMES AS LABOR WORK.THE PRODUCT COULD DRASTICALLY TO LOWER THE WORK STRENGTH AND SAVE THE MANPOWER.}

DICS MOUNTING PORT

CONVENINT,TIME-SAVING AND LABOR-SAVING

ADJUSTING KNOB

_{CAN ADJUST THE NUMBER OF WRAPS 2 0R 3 WRAPS.}

_{AND EACH WRAPS HAD 5 GEARS OF TENSION. POSITION 1 IS LOOSE, AND POSITION 5 IS THE TIGHTEST.}

WIRE ROLL SIZE

100 METERS LONG, 0.8MM DIAMETER

PRODUCT OPERATION

^{PRESS THE WIRE FEEDING ARM FORWARD ,SO THAT THE WIRE FEEDING BELL IS OPEN}

_{THE EROTHE ERONT END OF THE STRAPPING MACHINE IS CLOSE TO THE STEEL BAR WHICH NEEDS TO BE TIED ,THE ANGLE OF THE BAYONET AND STEEL BAR IS 45 DEGREES .AND IS PERPENDICULAR TO THE SURFACE OF THE STEEL BARNT END OF THE STRAPPING MACHINE IS CLOSE TO THE STEEL BAR WHICH}

company profile

FAQ

1. Q: Are you a factory or a trading company ?
A: We are a factory.

2. Q: Can you provide samples ?
A:Yes,we are able to offer samples.

3.Q: How can I have a Proforma Invioce/Quotation?
A: You can have Proforma Invoice/Quotation either by providing us the list of your requirements through fax email or by sending an enquiry.

4.Q: What options do I have for paying the freight charges?
A: We make the Proforma Invoice as per the clients’instructions like FOB & EXW.

5.Q: What are your payment terms?
A: All payments should be made in US dollarsunless specified in the quotation sent to you.
