SINOPLAST Engineers Available To Service Automatic Plastic Thermoforming Making Machine For Disposable Cup

Product details
Weight:3500KG;Packaging Detail:Plastic Film, Oil And Wooden Case;
Approx. Sheet width for feeding:500 -660 mm in rolls;Sheet Feeding Servomotor:2.2KW;
Oil Pump Motor Power:11KW;Mould Driving Method:Cam Disposable Cup Thermoforming Machine;
Certification:CE,CSA;Applicable Industries:Food & Beverage Factory;
Forming Area:Can be designed Plastic Cup Making Equipment;Payment Terms:L/C,T/T,Western Union;
Processing Type:Plastic Thermoforming Machine;Material:PP, PS, PET, PVC,PLA;
Supply Ability:5 Set/Sets per Month Plastic Cup Making Machine Price;Place of Origin:Zhejiang China;
Product Type:Plastic Cup;Dimension(L*W*H):3.4X1.5X2.2;
Voltage:380V/60HZ;Approx. Running Speed:15-30 Stroke / min approx. during production;
Brand Name:Sinoplast;Electrical Part Brand:Can be designed Cup Making Machine;
After-sales Service Provided:Online support;Product Name:Cup Making Machine Price;
Condition:New;Port:Ningbo or Shanghai;
Power(W):35KW;Mode of cutting arrangement.:In mould automatic;
Warranty:1 Year;

You are here:Home>>Plastic Cup Making Machine

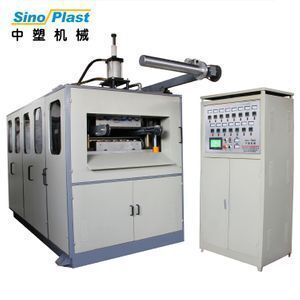

 SINOPLAST Engineers Available To Service Automatic Plastic Thermoforming  Making Machine For Disposable Cup

Product Description

Model

SPC-660D

Mould Driving Method

Cam

Approximate Max. Forming Area

660 x 300 mm

Approx. Running Speed

15-30 Stroke / min  approx. during production

Approx. Sheet width for feeding

500 – 660 mm in rolls.

Mode of cutting arrangement.

In mould automatic

Sheet thickness Range

0.20 – 2.0 mm

Material

PP, PS, PET, PVC,PLA

Max. Draw depth, (i.e. cup length)

140 mm (Could be special design)

Oil Pump Motor Power

11KW

Sheet Feeding Servomotor

 2.2KW

Max. Sheet roll diameter.

800 mm

Heating arrangement

Top + bottom

heating with IR Ceramic Heater

Temperature Controller & Thermocouple.

PID  K-Type

Type of Mould

Multi cavity

1 – 3 row.

Approx. Electrical Consumption

45KW/hr

Approximate Dimension

L3750×W1550×H2500 (mm)

Approximate Weight

4000Kg

Our Products

Our Advantage



Product Categories



Company Information

Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to

supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,

printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.

We produce many different types products for your selection.

 WARRANTY:

1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.



INSTALLATION AND TRAINING:

We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.



Our Services



FAQ

1. Q: Are you a factory or trading company?
A: We are a factory.


2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.



3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,


4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.


5. Q: How much production capacity of your company one year?
A: This depends on your needs.


6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.


7. Q: Where is your factory located?

A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.



8. Q: How to reach our factory?

A: It will take 50 minutes from Wenzhou Airport by car,  25 minutes from Ruian Highspeed Rail Station by car.
