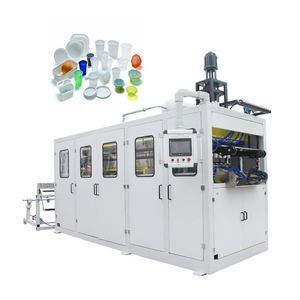

SINOPLAST Low Price Plastic Cup Thermoforming Making Machine, Machine For Making Disposable Plastic Cups Plate

Product details
After-sales Service Provided:Online support;Packaging Detail:Plastic Film, Oil And Wooden Case;
Driving Method:Cam + servo motor;Condition:New;
Voltage:380V/3P/50HZ;Place of Origin:Zhejiang China;
Electrical Part Brand:Customized Cup Making Machine;MOQ:1 Set;
Brand Name:Sinoplast;Processing Type:Plastic Thermoforming Machine;
Product Name:Machine For Disposable Cups;Power:35KW;
Applicable Industries:Food & Beverage Factory,Food & Beverage Shops;Electrical Consumption:Approx. 60KW;
Supply Ability:5 Set/Sets per Month Plastic Cup Making Machine Price;Payment Terms:L/C,T/T,Western Union;
Warranty:1 Year;Air Consumption:2200L/min or Customized;
Port:Ningbo or Shanghai;Product Type:Plastic Cup;
Dimension(L*W*H):4.3X1.7X2.8m;Forming Area:Customized;
Air Pressure:0.6~0.8Mpa;Sheet Width:W=760mm (adjustable);
Certification:ce,CSA;Color:Customized Cup Making Machine;
Weight:3500Kg;

You are here:Home>>Plastic Cup Making Machine

  SINOPLAST Low Price Plastic Cup Thermoforming Making Machine, Machine For Making Disposable Plastic Cups Plate

Product Description

Machine FrameSquare Steel Size 120×120: machine base is complete steel plate with thickness=40mm
Machine DoorThe top part of the door with observation window from the operation side, Heating oven could move outside
Mold Plate  QT500 nodular cast iron, pore-free, sand free
Pillar4-pillar dia.=95mm, 40Cr steel thermal refining, hard chrome plating, mirror finish: Gide bushing Dia.200mm, Material: metal ceramic Zns

IR Ceramic Heater

IR Ceramic Heater, Size: 240×80mm: Top oven: machine direction 10pcs*9zones: Bottom oven: machine direction 9pcs*9zones:

Total: 171pcs, Power: 800W/pcs, made in Germany

Max. Formng Area760×420mm
Max. Forming Depth200mm

Mold Plate Size

1350×520mm

Main Servo Motor

P-15KW (4P)
Stretching Servo Motor7.5KW
Sheet Feeding Servo Motor

4KW

Sheet Thickness

0.25~2.0mm

Running Speed

32cycles/min

Electrical Consumption

Approx. 60KW

Installing PowerApprox.  140KW
Solenoid ValveMAC, USA
machine parts:Machine Samples:
