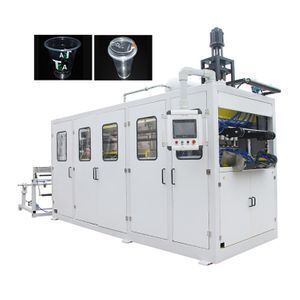

SINOPLAST food grade disposable cup bowl plastic product container thermoforming making machine
-
Supplier: Pingyang Sinoplast Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Maggie Lin -
Price: $25000.00 /set -
Min. Order: 1 set
| Suitable material: | PP, PS, PET, PVC,PLA; | Oil Pump Motor Power: | 11KW, 6P; |
| Product Name: | Thermoforming Machine For Disposable Cup; | Forming Area: | Customized; |
| Warranty: | 1 year; | Condition: | New; |
| Color: | Customized; | Power(W): | 35KW; |
| Dimension(L*W*H): | 3.4X1.5X2.2M; | Applicable Industries: | Food & Beverage Factory; |
| Port: | Ningbo or Shanghai; | Brand Name: | Sinoplast; |
| Supply Ability: | 5 Set/Sets per Month Fast Food Container Making Machine; | After-sales Service Provided: | Online support; |
| MOQ: | 1 Set - Plastic Product Making Machine Household; | Place of Origin: | Zhejiang China; |
| Certification: | CE,CSA; | Sheet Width: | 500-660 mm in rolls; |
| Type of Mould: | Multi Cavity 1-3 Row; | Packaging Detail: | Plastic Film, Oil And Wooden Case; |
| Product Type: | Plastic Cup; | Voltage: | 380V/50HZ; |
| Weight: | 3500kg; | Payment Terms: | L/C,T/T,Western Union; |
| Processing Type: | Plastic Thermoforming Machine; | Sheet Thickness: | 0.20-2.0 mm; |
| Electrical Part Brand: | Customized; |
You are here:Home>>Plastic Cup Making Machine

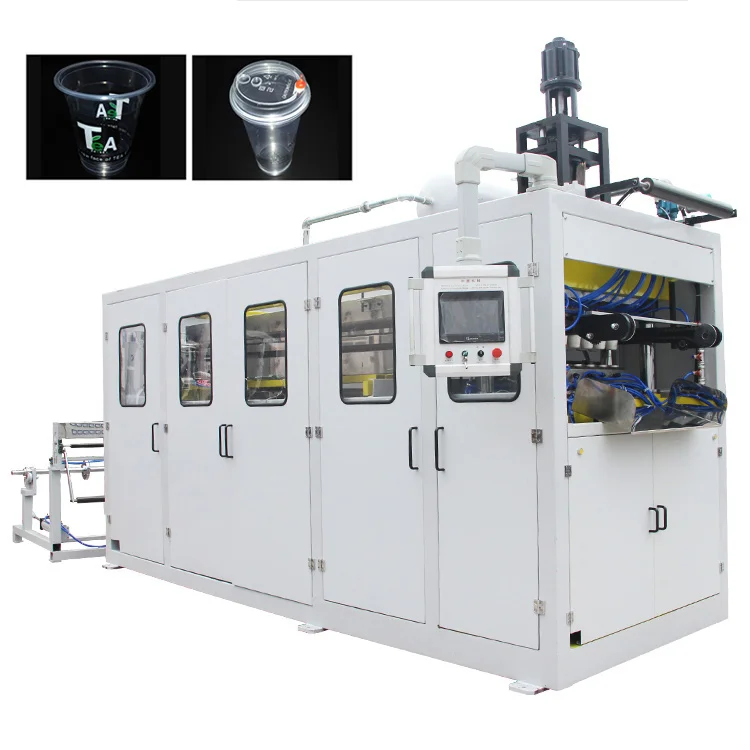

SINOPLAST Buy Direct From Factory 380V/50HZ Cup Machine Plastic Disposal Machine
| Model No. | SPC-660C |
| Mould Driving Method | Cam |
| Approximate Max. Forming Area | 660 x 300 mm |
| Approx. Running Speed | 15-30 Stroke / min approx. during production |
| Approx. Sheet width required for feeding | 500 – 660 mm in rolls. |
| Mode of cutting arrangement | In mould automatic |
Sheet thickness Range | 0.20 – 2.0 mm |
| Material | PP, PS, PET, PVC,PLA |
Max. Draw depth, i.e. cup length | 140 mm (Could be special design) |
| Oil Pump Motor Power | 11KW, 6P |
| Sheet Feeding Motor | 2.2KW |
| Max. Sheet roll diameter | 800 mm |
Heating arrangement | Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
| Temperature Controller & Thermocouple | PID K-Type |
| Type of Mould | Multi cavity 1 – 3 row. |
| Approx. Electrical Consumption | 45KW/hr |
| Approximate Dimension | L3100×W1500×H2500 (mm) |
| Approximate Weight | 4000Kg |
Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to
supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,
printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.
We produce many different types products for your selection.
WARRANTY:
1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.
INSTALLATION AND TRAINING:
We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,
4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located?
A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
8. Q: How to reach our factory?
A: It will take 50 minutes from Wenzhou Airport by car, 25 minutes from Ruian Highspeed Rail Station by car.
