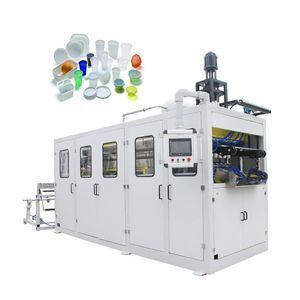

SINOPLAST Low Price Plastic Cup Thermoforming Making Machine, Machine For Making Disposable Plastic Cups Plate

Product details
Warranty:1 Year;Supply Ability:5 Set/Sets per Month Plastic Cup Making Machine Price;
Payment Terms:L/C,T/T,Western Union;Packaging Detail:Plastic Film, Oil And Wooden Case;
Condition:New;Brand Name:Sinoplast;
Electrical Consumption:Approx. 60KW;Product Type:Plastic Cup;
Voltage:380V/3P/50HZ;Dimension(L*W*H):4.3X1.7X2.8m;
Color:Customized Cup Making Machine;Air Consumption:2200L/min or Customized;
Driving Method:Cam + servo motor;Sheet Width:W=760mm (adjustable);
Port:Ningbo or Shanghai;Air Pressure:0.6~0.8Mpa;
Power:35KW;MOQ:1 Set;
Certification:ce,CSA;Product Name:Machine For Disposable Cups;
Electrical Part Brand:Customized Cup Making Machine;Weight:3500Kg;
After-sales Service Provided:Online support;Applicable Industries:Food & Beverage Factory,Food & Beverage Shops;
Processing Type:Plastic Thermoforming Machine;Forming Area:Customized;
Place of Origin:Zhejiang China;

You are here:Home>>Plastic Cup Making Machine

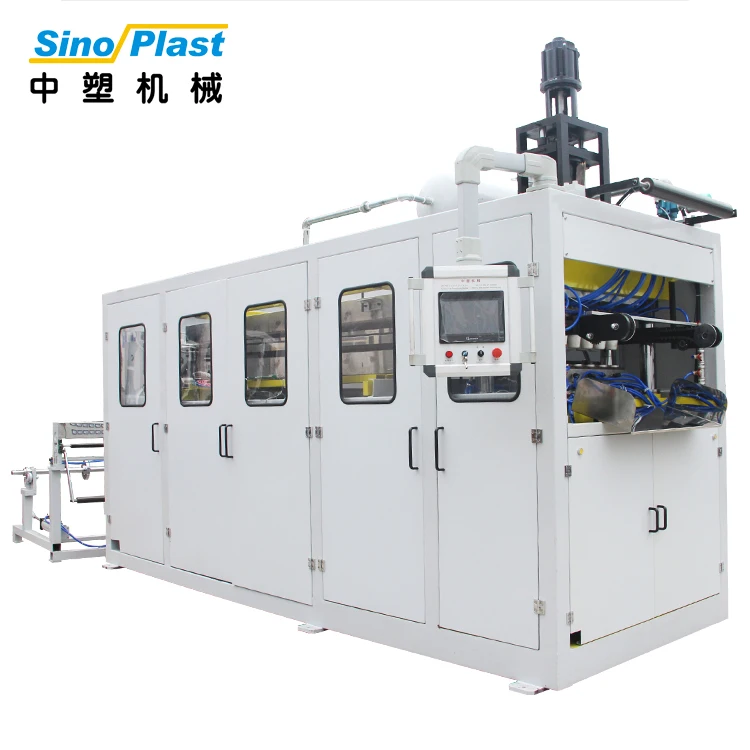

  SINOPLAST Low Price Plastic Cup Thermoforming Making Machine, Machine For Making Disposable Plastic Cups Plate

Product Description

Machine FrameSquare Steel Size 120×120: machine base is complete steel plate with thickness=40mm
Machine DoorThe top part of the door with observation window from the operation side, Heating oven could move outside
Mold Plate  QT500 nodular cast iron, pore-free, sand free
Pillar4-pillar dia.=95mm, 40Cr steel thermal refining, hard chrome plating, mirror finish: Gide bushing Dia.200mm, Material: metal ceramic Zns

IR Ceramic Heater

IR Ceramic Heater, Size: 240×80mm: Top oven: machine direction 10pcs*9zones: Bottom oven: machine direction 9pcs*9zones:

Total: 171pcs, Power: 800W/pcs, made in Germany

Max. Formng Area760×420mm
Max. Forming Depth200mm

Mold Plate Size

1350×520mm

Main Servo Motor

P-15KW (4P)
Stretching Servo Motor7.5KW
Sheet Feeding Servo Motor

4KW

Sheet Thickness

0.25~2.0mm

Running Speed

32cycles/min

Electrical Consumption

Approx. 60KW

Installing PowerApprox.  140KW
Solenoid ValveMAC, USA
machine parts:Machine Samples:
Our Advantage



Product Categories



Company Information

Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to

supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,

printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.

We produce many different types products for your selection.

 WARRANTY:

1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.



INSTALLATION AND TRAINING:

We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.



Our Services



FAQ

1. Q: Are you a factory or trading company?
A: We are a factory.


2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.



3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,


4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.


5. Q: How much production capacity of your company one year?
A: This depends on your needs.


6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.


7. Q: Where is your factory located?

A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.



8. Q: How to reach our factory?

A: It will take 50 minutes from Wenzhou Airport by car,  25 minutes from Ruian Highspeed Rail Station by car.
