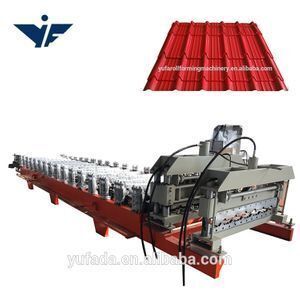

2018 year South africa hot sell 1000 step tile roofing steel making machinery

Product details
Weight:6.5 tons;Place of Origin:Tianjin China (Mainland);
Raw material thickness:0.3-0.8 mm;Production Capacity:3-5 m/min;
Voltage:380V 50Hz 3phases;Power:Hydraulic;
Raw material:PPGI/Galvanized sheet;Product name:step tile roofing steel making machine;
Supply Ability:30 Set/Sets per Week;Type:Tile Forming Machine;
Brand Name:YUFA;Certification:CE;
Control system:Taiwan Delta;Tile Type:Glazed Steel, Colored Steel;
Payment Terms:L/C,T/T;Port:Tianjin;
Dimension(L*W*H):7.5 m*1.3m*1.3m;warranty:one year;
Packaging Detail:packed with waterproof cloth and card board in container;material of cutting blade:Cr12;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Tile Type:Steel;
Automation:Automatic;After-sales Service Provided:Engineers available to service machinery overseas;
Warranty:1 Year;Use:Roof;
Condition:New;
YUFADA

Now this kind of machine have been exported to many countries, the most important is that ur need can be customized.



Home                                   Products categories                                    Company profile                                    Contacts



     YuFaDa industrial CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1996. We have four factories working in Beijing, Tianjin and Hebei province. More than 400 workers provide service for u.

      Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

Product Description

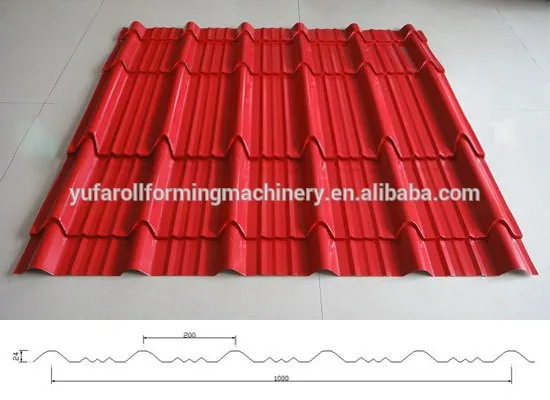

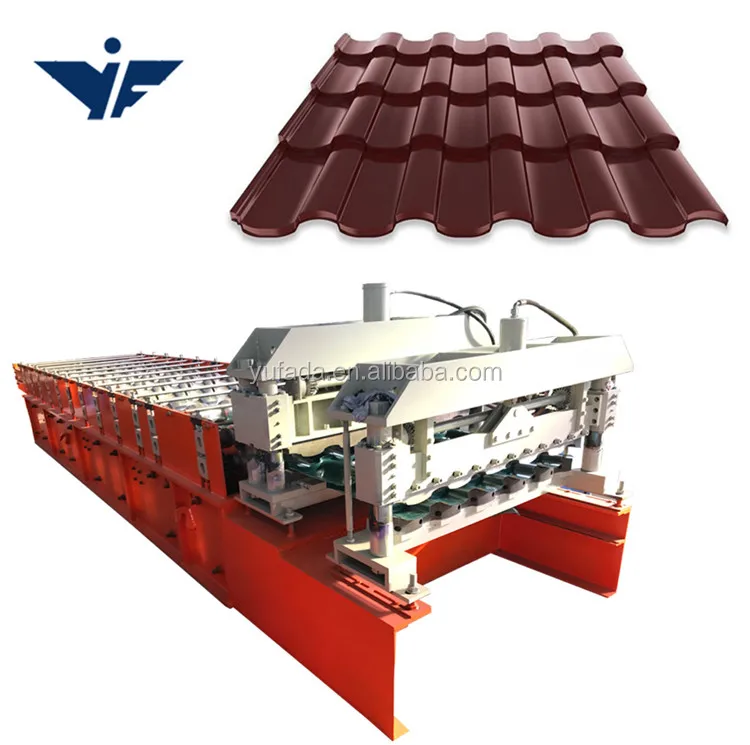

Now our glazed tile roll forming machine have been exported to many countries, the most important is that all you need can be customized.

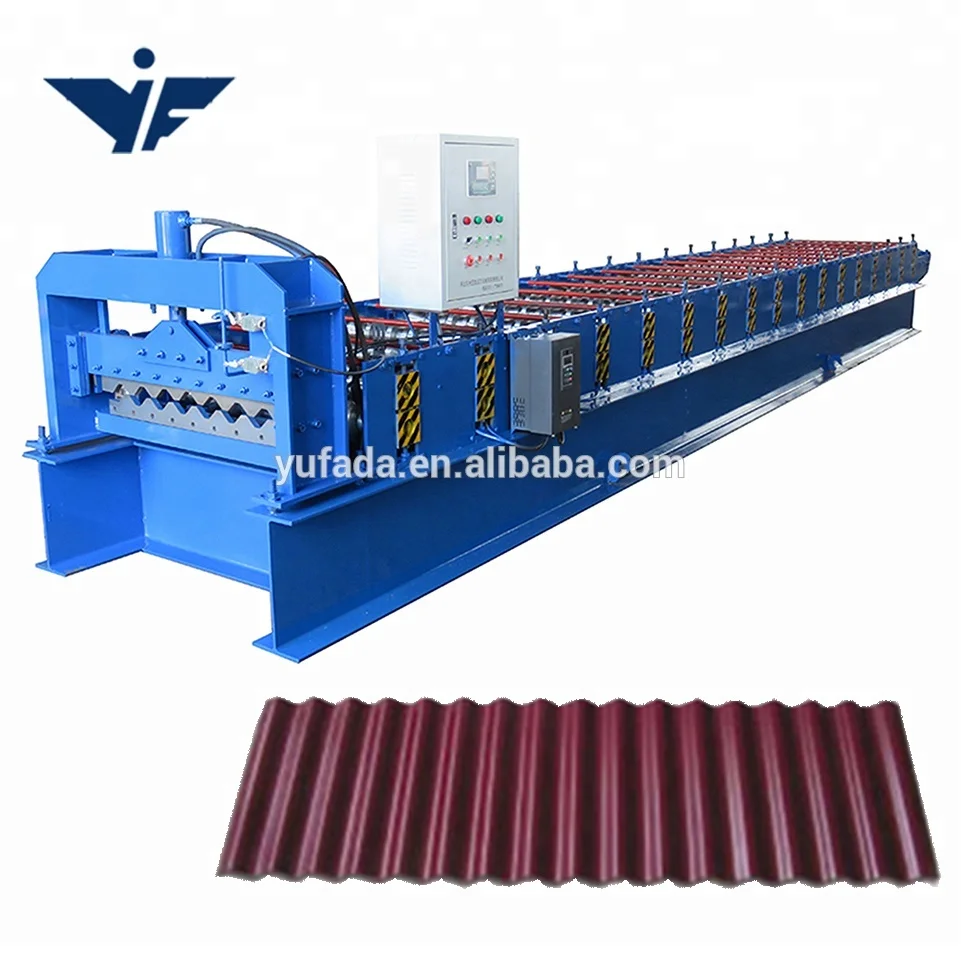

Other type maybe u like





Work flow

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- output table





Article No.Item NameSpecification
       1Width of feeding material1250 mm coil sheet
       2 Thickness of feeding material0.3-0.8 mm coil sheet
       3Roller station13 stations
       4Shaft Diameter 75 mm
       5Productivity3-5 m/min
       6Rollers' material45# steel with 0.05mm chrome
       7 Shaft material 45# steel with 0.05mm chrome
       8Weight6.5 tons
       9length6.5 m
      10Voltage380V 50Hz 3phases
      11Control PLC
      12Decoiler5 tons
      13Motor5-7.5 kw
      14Driving wayChain transmission
      15Chain size1inch
      16Cutting systemHydraulic cutter







           If u want to see the machine working video, please contact with Jessica with any way below.



                                                                         Other machine maybe u like:

Company Information





Our Services

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.



FAQ

1. Q: How to visit our company:

     A: Fly to Beijing AirportBy fast train From Beijing South station to Cangzhou west station

(1hour), then we can pick up you to factory(40min).

        Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station  to Cangzhou west

station(4.5 hours), then we can pick up you to factory(40min).

2.  Q: What should I provide if I want to customized machine?

     A: U need provide profile drawing, material, thickness, voltage and your special requirements.

3.  Q: What is the Warranty?

     A: Within 12 mounts, all technicals are ready to serve you at any time.

4.  Q: What can you do if the machine broken?

     A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send

new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.

5.  Q: If need technician to workshop to debug and teach, how to do?

     A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
