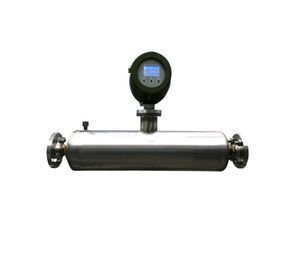

High accuracy Coriolis mass flow meter

Product details
Supply Ability:500 Set/Sets per Week;Model Number:MTCMF;
Port:Dalian port;Ex:Exd(ia)IICT6GB;
Packaging Detail:Wooden case;Power supply:220VAC/ 24VDC;
Material:Stainless Steel;Place of Origin:china;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Temperature:-50~200℃;
Display:LCD Digital;Output:Pulse/4-20mA /RS485/HART;
Connection:Flang/thread/clamp;Display parameters:flow rate/ density/temperature;
Product Name:fuel oil coriolis mass flow meter controller with rs485 density meter;Brand Name:METERN;
Accuracy:0.1%/0.2%/0.5%;
Product Description

OVERVIEW

Digital fuel oil coriolis mass flow meter controller with rs485 density meter from China dalian metern

Coriolis mass flow meter (MTCMF) is a type of flow meter which is designed according to Micro Motion and Coriolis principle.This kind of new flow meter can measure the fluid directly in a sealed pipeline. It consists of two sections: Sensor and Signal Transmitter.


Flow rate:

DN (mm)
Flow range(kg/h)
3
0~96~144
6
0~540~810
8
0~960~1440
10
0~1500~2250
15
0~3000~4500
20
0~6000~9000
25
0~9600~14400
32
0~18000~27000
40
0~30000~45000
50
0~48000~72000
80
0~120000~180000
100
0~192000~300000
150
0~360000

 Parameters

Digital fuel oil coriolis mass flow meter controller with rs485 density meter from China dalian metern

+
Accuracy
±0.2%, ±0.1% optional
Repeatability
±0.1~0.25%
Density measurement range
0.5~2g/cm3, Accuracy: ±0.002 g/cm3
Operating temperature
-50~+200℃
Ambient temperature
 -20~+55℃
The measuring tube material
SS316L; The housing material: SS304
Nominal pressure
4.0MPa
Ex-proof
Exd (ia)ⅡC T6Gb
Protection grade
IP67
+
+

 Transimitter parameters

Digital fuel oil coriolis mass flow meter controller with rs485 density meter from China dalian metern

+
Display
128x64 LCD display, Window size: 54x40mm (WxH) Φ80mm
Display Accuracy
0.02%
Unit
Mass flow rate: g/h、kg/h、t/h、g/m、kg/m、t/m

Total flow: g, kg, t

Volume flow rate: cm3/h、dm3/h、m3/h、cm3/m、dm3/m、m3/m

Total volume: cm3 、dm3、m3

Density: kg/m3、g/cm3

Temperature: ℃、K、℉
Ambient Temperature
-20~+60℃
Output signal
0~10000Hz pulse frequency signal flow signal (open collector signal)

Equivalent pulse signal flow signal

4~20mA Current signal choose one signal from flow rate, density, temperature

Current output load capacity is not less than 750Ω(24VDC power supply)

Accuracy: Pulse signal 0.05%

Current signal 0.2%

Communication signal: RS485, MODBUS protocol

Hart
Power Supply
18~36VDC power≥7W
85~265VAC power: 10W
Protection
Protection: IP67
Ex-proof: Ex d [ia]ⅡCT6Gb
Dimension
Φ125×180mm
+

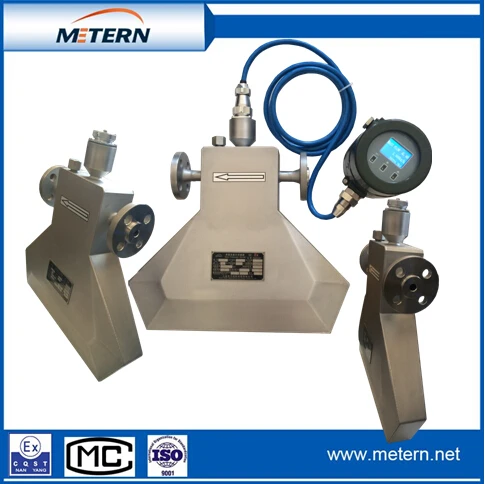

Digital fuel oil coriolis mass flow meter controller with rs485 density meter from China dalian metern
+

Digital fuel oil coriolis mass flow meter controller with rs485 density meter from China dalian metern

+
Company introduction
+
+

Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia,  Malaysia, ect.

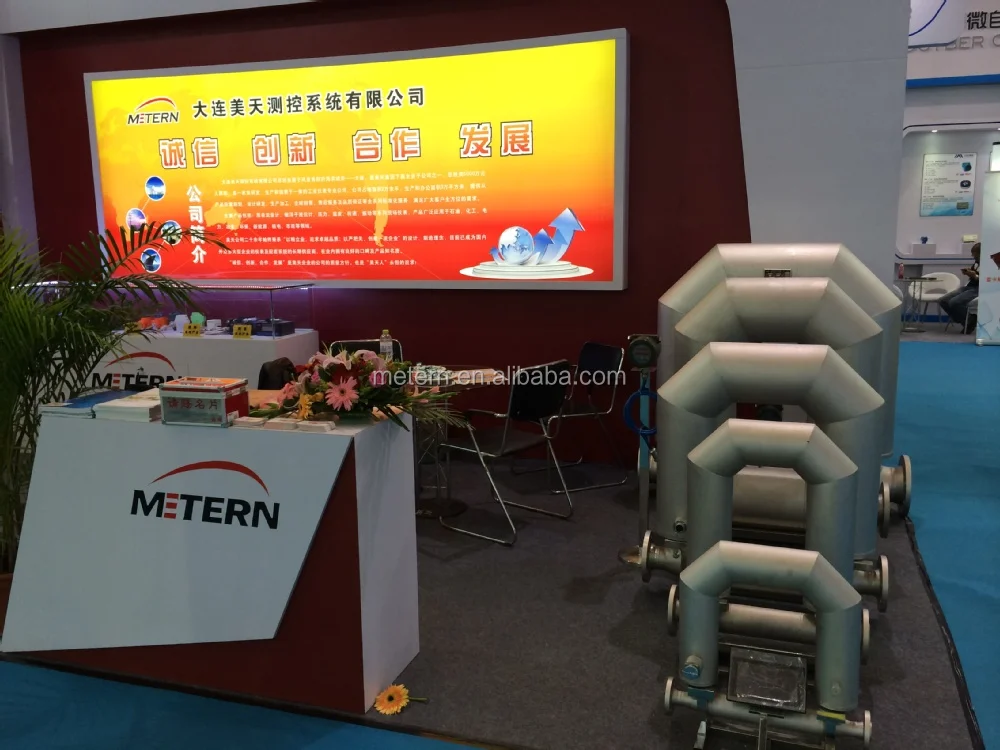

Exhibition

+
+
+

Have two separate flow rate calibration devices
Have four  sets of digital industrial electronic scales
Have 10 experimental pipeline, which can calibrate maximum flow rate of 450000kg/h

System accuracy: 0.03%


 Working Pictures:

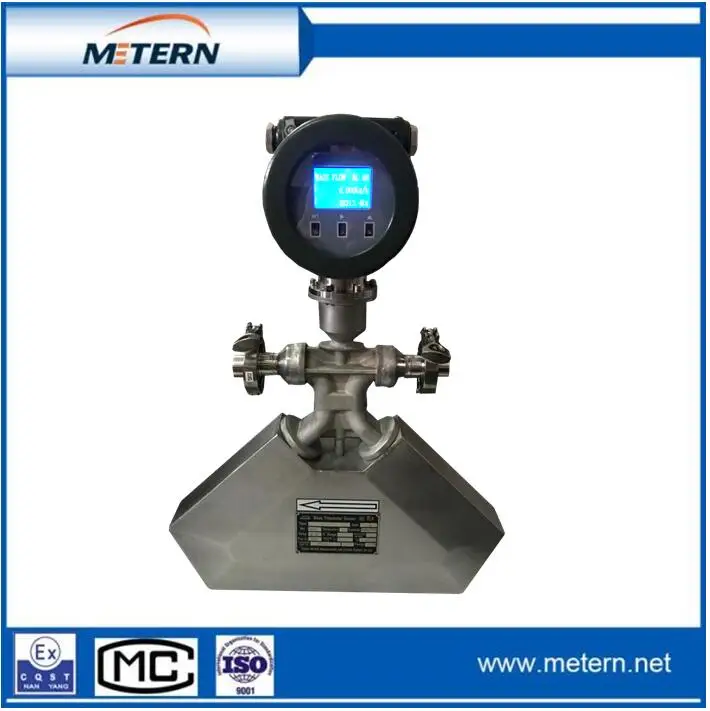

Digital fuel oil coriolis mass flow meter controller with rs485 density meter from China dalian metern

+
+
