winkel forklift mast bearing combine bearing 4.055

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $8.90 /piece
Min. Order: 1 piece

Click here to contact

Product details

Number of Row:	Single Row;	Brand Name:	NTL;
Material:	Chrome Steel;	Product name:	winkel forklift mast bearing 4.055;
Libe model:	MR0029;	Seals Type:	OPEN ZZ 2RS RS;
Structure:	Cylindrical;	oem:	accepet;
Model Number:	4.055;	Outside Diameter:	70 - 123 mm;
Single gross weight:	0.9 KG;	Bore Size:	40 - 60 mm;
Selling Units:	Single item;	Ca:	43 KN;
CR model:	400-0062;	Precision Rating:	P0 P6;
Cr:	110 KN;	Place of Origin:	Jiangsu China;
Single package size:	8X4X4 cm;	weight:	3.89kg/pc;
Package Preview:	https://sc01.alicdn.com/kf/HTB1q8z_KkyWBuNjy0Fpq6yssXXaE.jpg_640x640.jpg;	height:	72.3mm;
Type:	Roller;	Application:	used for lifts platform , forklift truck;

winkel forklift mast bearing combine bearing 4.055

Product Description

Combined Bearings are particularly suitable for truck lift columns and all other convoying systems which require profiles. They can afford load from both axial and radial direction at the same time. With the optimzed structure, the mount space can be saved, and the usage is also simple that just to weld the pivot in the mount plate, and it is not necessary to dismantle the whole set.

Application :

Forklift, heavy load machine,Automobile industry, aircraft manufacturing industry, metallurgical equipment, packaging machinery, conveyor belt equipment, wood industry, paper making industry, steel and glass industry, general machinery manufacturing industry etc.

Winkel series combine roller bearing model :

4.053 4.054-62 4.055-70 4.056-78 4.058-88 4.061-106 4.062-123 4.063-149
4.064-149 4.454 4.455 4.456 4.457 4.458 4.459 4.460 4.461 4.462 4.463 4.072 4.073 4.074
4.076 4.078 4.079 4.080 4.235-89 4.227-108 4.228-123 4.229-149 4.230-185 4.089 4.090
4.091 4.092 4.093 4.055-40 4.057-78 4.075-78 4.058-49 4.059-101 4.077-101 4.060-108 4.078-108
4.259 4.037-174 4.039-185 4.054 4.055 4.056 4.057 4.058 4.061 4.062 4.063 4.075
4.059 4.077 4.060 4.078 4.097 4.097-123

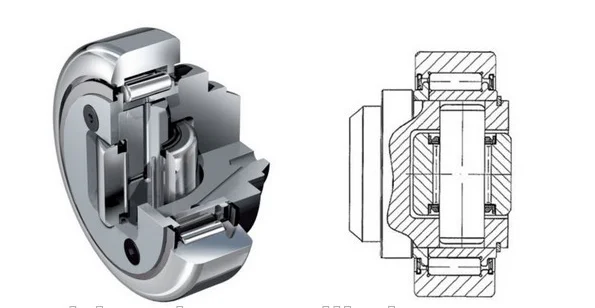

drawaing&size

Model no.	D mm.	T mm.	d -0.05 mm.	H mm.	h mm.	B mm.	A mm.	S mm.	r mm.	C KN	COKN	COAKN	r/pm max.	Weight kg
4.053	52,5	40	30	33,0	27,0	17	5,0	15	2	24,0	32,0	7	800	0,46
4.054	62,5	42	30	37,5	30,5	20	2,5	20	3	31,0	35,5	11	900	0,53
4.055	70,1	48	35	44,0	36,0	23	2,5	22	4	45,5	51,0	14	900	0,80
4.056	77,7	54	40	48,0	36,5	23	3,0	26	4	48,0	56,8	18	800	1,00
4.057	77,7	53	40	40,0	29,0	23	3,0	26	4	48,0	56,8	18	800	0,87
4.058	88,4	59	45	57,0	44,0	30	3,5	26	3	68,0	72,0	23	750	1,62
4.059	101,2	67	50	46,0	33,0	28	3,0	30	3	73,0	82,0	27	700	1,74
4.060	107,7	71	55	54,0	39,0	31	3,0	34	5	81,0	95,0	36	650	2,27

product picture

Packaging & Shipping

Company Information

FAQ

1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by shipping.

4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.

5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
