08B ISO standard stainless steel industrial transmission roller chain

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $6.40 / >=10 meters
Min. Order: 10 meters

Click here to contact

Product details

Sample:	Available;	Material:	Stainless Steel;
Supply Ability:	10000 Meter/Meters per Month 08B ISO standard stainless steel industrial transmission roller;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Retail;
Roller diameter:	8.51mm;	Stock:	In stock;
Application:	Machinery Parts;	Structure:	Roller Chain Leaf Chain;
Surface Treatment:	Heat Treatment;	Pitch:	12.7mm;
Product name:	08B ISO standard stainless steel industrial transmission roller chain;	Standard or Nonstandard:	Standard;
Service:	OEM Offered;	Packaging Detail:	industry packing;
Port:	shanghai;	Material:	carbon steel/stainless steel/40Mn;
Brand Name:	NTL;	Tensile Strength:	High Tensile Strength;
Payment Terms:	T/T,Western Union;	Type:	Roller Chain;
Place of Origin:	Jiangsu China;

08B ISO standard stainless steel industrial transmission roller chain

Product Description

1.Standards: ISO /DIN /ANSI
2.Model: 25-160,04B-32B Duplex,Heavy duty
3.Materials:Carbon steel 40Mn stainless steel

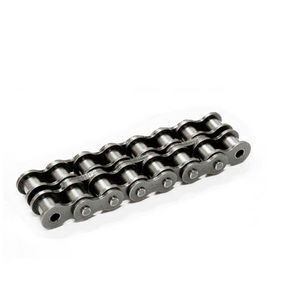

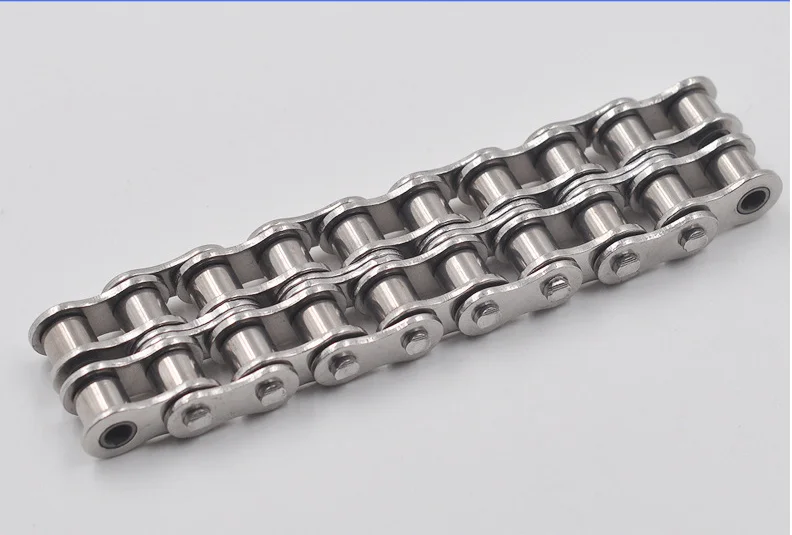

Double Roller Chain

1.All parts are heat treatment(quenching and tempering) and controlled in a reasonable tolerance range.

2.Tensile strength:15-20% higher than the standard

3.Certificate of Quality: ISO 9001:2000,SGS

4.Centreless grinding.

5.Good lubrication with excellent grease.

6.Color:self,dark yellow,dark blue,black

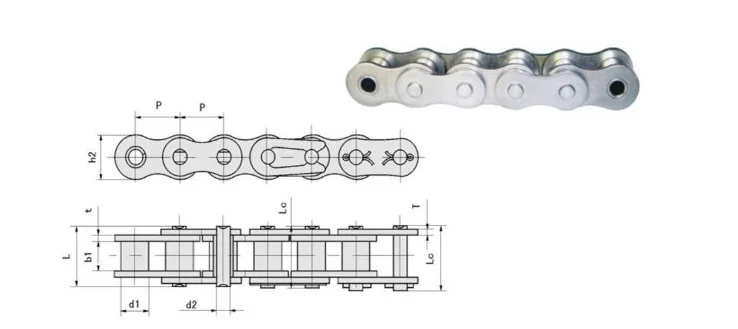

Chain N0.	Pitch	Roller diameter	Width between inner plates	Pin diameter		Pin length	Inner plate depth	Plate thickness	Breaking Load
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	t/T max	Q
	mm	mm	mm	mm	mm	mm	mm	mm	kN
*25SS	6.350	3.30	3.18	2.31	7.9	8.4	6.00	0.8	2.5/568
*35SS	9.525	5.08	4.77	3.58	12.4	13.17	9.00	1.30	5.5/1250
40SS	12.700	7.95	7.85	3.96	16.6	17.8	12.00	1.50	9.6/2182
41SS	12.700	7.77	6.25	3.58	13.75	15.0	9.91	1.30	6.0/1360
50SS	15.875	10.16	9.40	5.08	20.7	22.2	15.09	2.03	15.2/3455
60SS	19.050	11.91	12.57	5.94	25.9	27.7	18.00	2.42	21.7/4932
80SS	25.400	15.88	15.75	7.92	32.7	35.0	24.00	3.25	38.9/8841
100SS	31.750	19.05	18.90	9.53	40.4	44.7	30.00	4.00	60.0/13636
120SS	38.100	22.23	25.22	11.10	50.3	54.3	35.70	4.80	72.5/16477
140SS	44.450	25.40	25.22	12.70	54.4	59.0	41.0	5.60	94.0/21363
04BSS	6.000	4.00	2.80	1.85	6.80	7.8	5.00	0.60	2.0/455
05BSS	8.000	5.00	3.00	2.31	8.20	8.9	7.10	0.80	3.5/795
#06BSS	9.525	6.35	5.72	3.28	13.15	14.1	8.20	1.30	6.2/1409
08BSS	12.700	8.51	7.75	4.45	16.7	18.2	11.80	1.0	12.0/2727
10BSS	15.875	10.16	9.65	5.08	19.5	20.9	14.70	1.70	14.5/3295
12BSS	19.050	12.07	11.68	5.72	22.5	24.2	16.00	1.85	18.5/4205
16BSS	25.400	15.88	17.02	8.28	36.1	37.4	21.00	4.15/3.1	40.0/9091
20BSS	31.750	19.05	19.56	10.19	41.3	45.0	26.40	4.5/3..5	59.0/13409
24BSS	38.100	25.40	25.40	14.63	53.4	57.8	33.20	6.0/4.8	104.0/25454
32BSS	50.800	29.21	30.99	17.81	66.0	71.0	42.00	7.0/6.0	150.0/34090
