Product name: | SG25 High quality guide wheel track roller bearing; | Place of Origin: | Jiangsu China (Mainland); |
Application: | Machinery; | Bore Size: | 0 - 30 mm; |
Material: | Chrome Steel; | Supply Ability: | 10000 Piece/Pieces per Week SG25 High quality guide wheel track roller bearing; |
Packaging Detail: | industry packing or customized; | Precision Rating: | P0 P6 P5 P4 P2; |
Feature: | Long Life; | Payment Terms: | T/T,Western Union; |
Structure: | Deep Groove; | Item: | SG25 High quality guide wheel track roller bearing; |
Model Number: | SG25; | Port: | shanghai; |
Type: | Ball; | Number of Row: | Double Row; |
Package: | Plastic Tube; | Seals type: | Ruber or steel; |
Sample: | Available; | Service: | OEM Customized Services; |
Stock: | Rich; | Seals Type: | ZZ 2RS OPEN; |

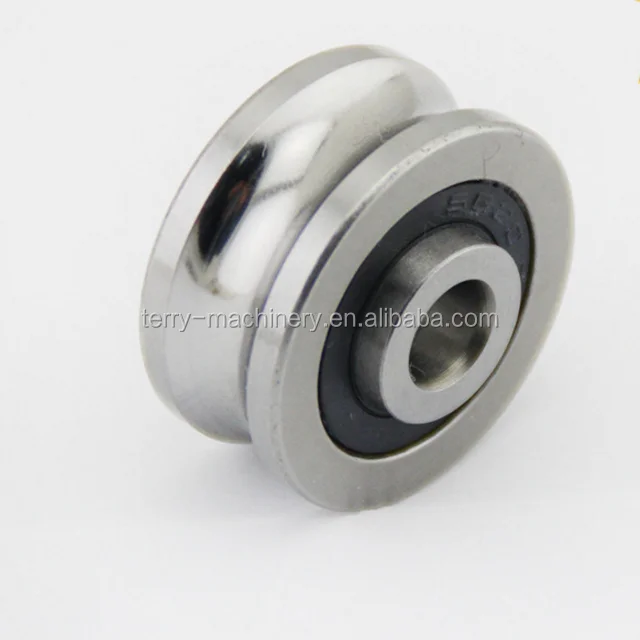

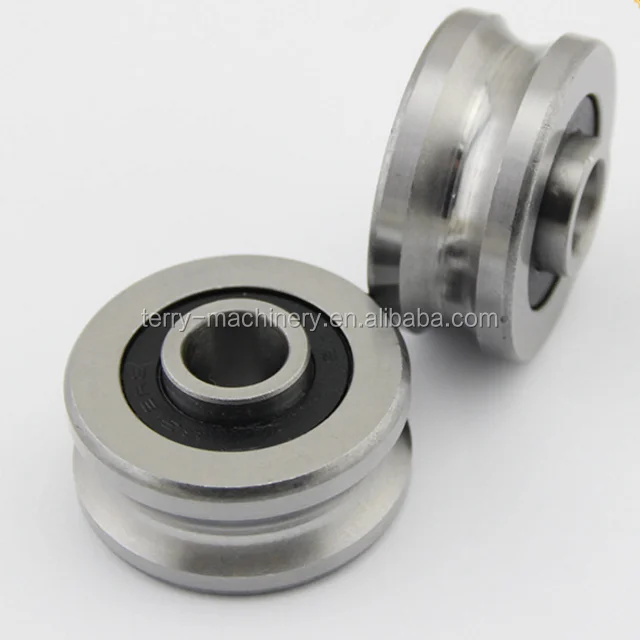

SG25 High quality guide wheel track roller bearing
Guide wheel bearings are precision ground, double row, angular contact bearings. These bearings are pre-lubricated and available in either chrome steel or 440C stainless steel. Although the standard chrome steel version is available either sealed or shielded, the stainless steel design is available sealed only. The concentric and adjustable bushings provide a simple, effective means of adjusting the free play of the guide wheel system.
| | |
| | | L | D2 | H | Chamfer r/min | (KN) |
| | |||
IBS | Ref No. | Φdw | d | D | C | B | L | d2 | H | R/min | Cw | Cow | No. | Size | g |
SG10 | LFR50/4NPP | 5 | 4 | 13 | 6 | 3.5*2 | 16.08 | 5.9 |
| 0.3 | 1.05 | 0.85 | 2.000 | 14 | 7 |
SG15 | SG5RS | 6 | 5 | 17 | 8 | 5.75 | 20.46 | 8.6 | 0.5 | 0.3 | 1.8 | 0.95 | 2.000 | 18 | 8 |
SG15-10 |
| 10 | 5 | 17 | 8 | 5.75 | 25.5 | 8.6 | 1.2 | 0.3 | 1.8 | 0.95 | 2.000 | 18 | 9 |
SG15-1 |
| 7 | 5 | 17 | 8 | 5.75 | 20.46 | 8.6 | 1.5 | 0.3 | 1.8 | 0.95 | 2.000 | 18 | 10 |
SG20 | SG6RS | 8 | 6 | 24 | 11 | 7.25 | 28.62 | 11.1 | 0.7 | 0.3 | 3.48 | 1.75 | 3.175 | 14 | 25 |
SG20-1 |
| 9 | 6 | 24 | 11 | 7.25 | 28.62 | 11.1 | 0.5 | 0.3 | 3.48 | 1.75 | 3.175 | 14 | 25 |
SG25 | SG8RS | 10 | 8 | 30 | 14 | 8.5 | 35.77 | 13 | 0.7 | 0.3 | 5.18 | 2.7 | 3.969 | 14 | 49 |
SG25-1 |
| 5 | 8 | 27.6 | 14 | 10 | 30.77 | 13 | 1 | 0.3 | 5.18 | 2.7 | 3.969 | 14 | 50 |
SG35 | SG12RS | 12 | 12 | 42 | 19 | 12.5 | 48.93 | 18 | 1 | 0.5 | 10.6 | 5.9 | 5.953 | 14 | 136 |
