Brand Name: | LST; | Port: | Shanghai/Guangzhou/etc; |
Application fields: | Snack food factory,Beverage Factory,Chocolate factory; | Weight: | 340kg; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Material: | SSS304; |
Power(W): | 3kw; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Raw material: | Corn,Fruit,Nuts,Vegetables,chocolate; | Output product name: | chocolate; |
Condition: | New; | Application: | Chocolate; |
Name: | Mini chocolate making machine; | After-sales Service Provided: | Field installation, commissioning and training; |
Warranty: | 1 Year; | Voltage: | 220V/110V; |
Machinery Function: | Moulding; | Drive: | 4sets of servo motor drive; |
Dimension(L*W*H): | 1140*640*1440mm; | Applicable Industries: | Food & Beverage Factory; |
Place of Origin: | Sichuan China; | Certification: | CE ISO; |
Packaging Detail: | wooden box packing; | Supply Ability: | 10 Set/Sets per Month; |

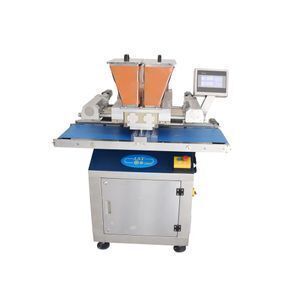

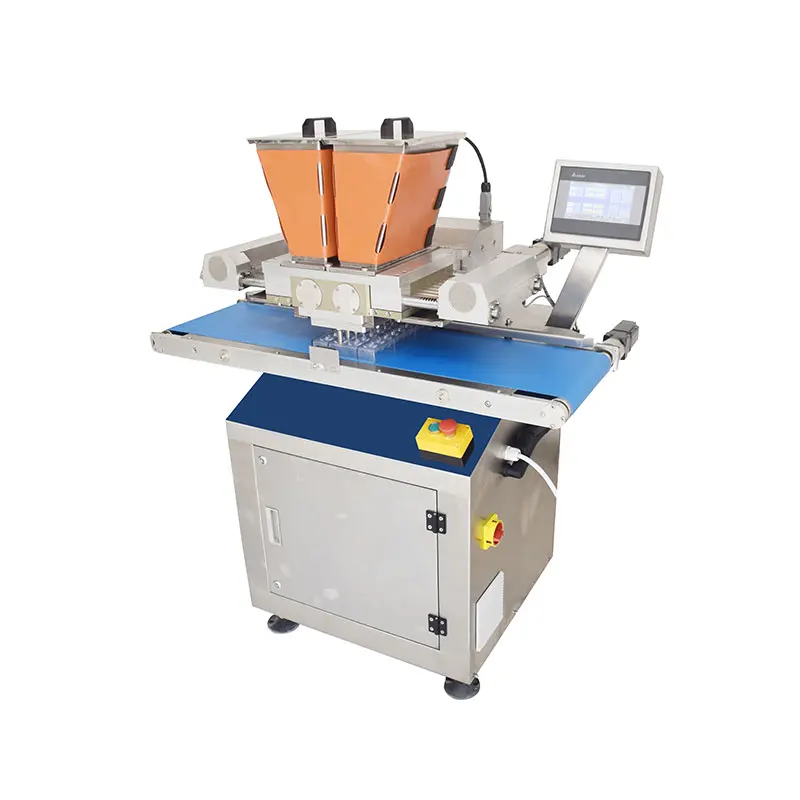

1. This fully automatic chocolate servo controlled depositing machine is equipped with international famous brand servo motor and controlled by PLC system.
2. It is a multi-functional chocolate pouring machine with pneumatic components. As the new generation of chocolate food machinery, it is suitable for small and medium-sized food enterprises to produce personalized, diversified chocolate candy.
3. This machine is designed according to the international general standard. It can work individually, and also can be combined with other equipment.
4. Flexibility is the main characteristic for this equipment, which makes it convenient to switch from different products.
5.This depositing machine can making types of chocolate product,such as Spherical chocolate, chunky chocolate, sandwich chocolate, water drop chocolate, etc.
Moulds | 275*175mm,275*135mm |
Pistons | Standard 2*8 Φ20mm Pistons |
Heating | Separated heating for hoppers and valves |
Conveyor Belt | Removable conveyor belt |
Cleaning | Automatic hopper cleaning |
Drive Motor | All movements are activated by 4 sets of 0.4kw servo motors |
PLC | Standard DELTA PLC, Siemens PLC available |
Productivity | Up to 150kg |
Power | 110/220V-single phase 50/60HZ, or customized |
1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers
2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
3. Customization is available.
5. What’s the information should I let you know if I want to get a full quotation?
Bag type, size, weight of material, type of material, thickness, printing, colors, quantity
6. When we create our own artwork design, what kind of format is available for you?
The popular format: AI, JPEG, CDR,PSD, TIF
7. Wooden case packed with machine and English manule
8. Transformer is provided
9. Technical manual in English is provided
10. The machine is stainless steel
11. In the line of exporting packing material
