Automatic one shot chocolate making machine chocolate depositor depositing making machine

Supplier: Chengdu LST Science And Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Zhang Jack
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Brand Name:	LST;
Drive:	4 sets of servo motor drive;	Supply Ability:	20 Set/Sets per Month;
Output product name:	CHOCOLATE;	Dimension(LWH):	11406401440mm;
Application fields:	Snack food factory,Beverage Factory;	Certification:	CE ISO;
Weight:	340kg;	Condition:	New;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	China;
Power(W):	3kw;	Applicable Industries:	Food & Beverage Factory;
Material:	SUS304;	Raw material:	Nuts,chocolate;
Port:	Shanghai/Guangzhou.etc;	Packaging Detail:	wooden box packing;
Application:	Chocolate;	Machinery Function:	Chocolate moulding;
After-sales Service Provided:	Field installation, commissioning and training;	Name:	Mini chocolate making machine;
Voltage:	220V/110V;

Automatic chocolate making machine chocolate depositor depositing making machine

Product Description

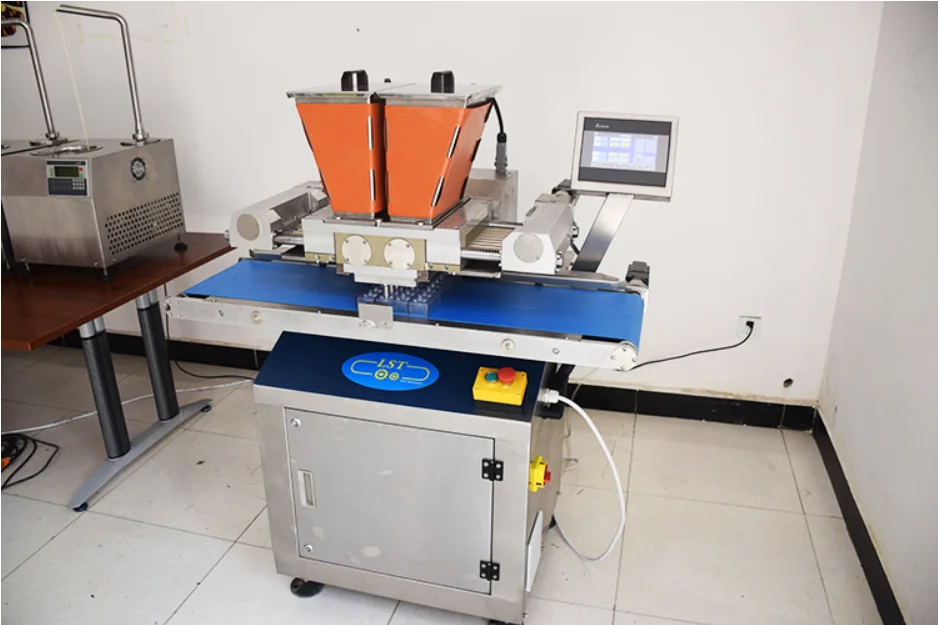

M2D8O2 mini one-shot depositor is able to produce many different kinds of high quality chocolate candies, such as chocolate blocks, chocolate and nuts mix, center filling, etc. The compact structure and advanced technologies makes it popular at home and abroad.

Main parameters

Moulds	275175mm,275135mm

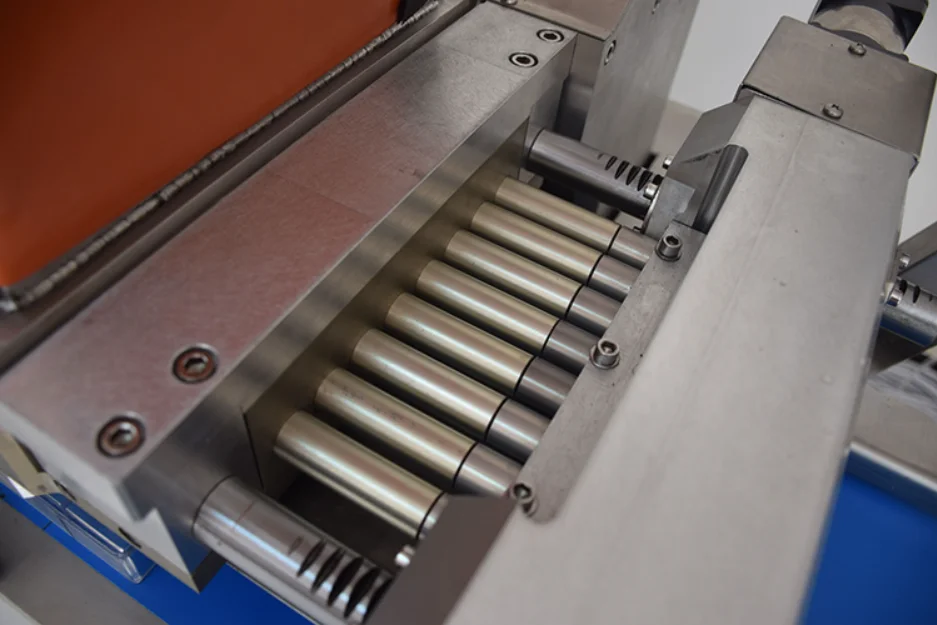

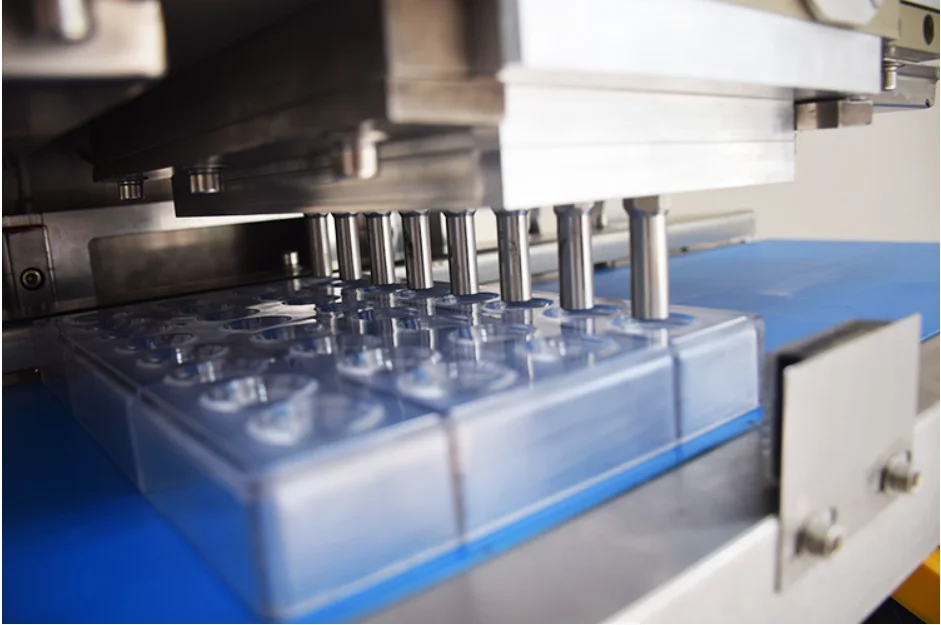

Pistons	Standard 2*8 Φ 20mm Pistons

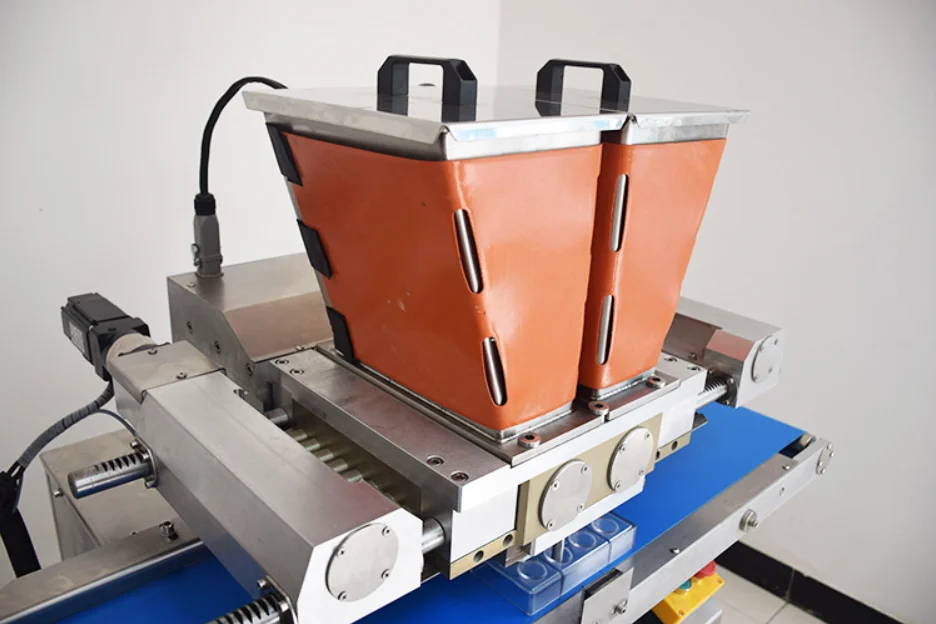

Heating	Separated heating for hoppers and valves
Conveyor Belt	Removable conveyor belt
Cleaning	Automatic hopper cleaning
Drive Motor	All movements are activated by 4 sets of 0.4kw servo motors
PLC	Standard DELTA PLC, Siemens PLC available
Productivity	Up to 150kg
Power	110/220V-single phase 50/60HZ, or customized
