vibration transducer for condition monitoring system

Product details
Amplitude linearity:1%;Place of Origin:Anhui China;
Acceleration range:80g;Warranty:Lifecircle;
IP grade:IP68;Frequency range:0.4~15KHz;
Packaging Detail:At clients' option;Payment Terms:T/T,Western Union;
Weight:81g;Supply Ability:500 Set/Sets per Month;
Delivery Detail:According to the quantity;Certification:CE;
Sensivity:100mV/g;Working temperature:-40~+120°C;
Port:Shanghai;Output:top entry;
Model Number:RH103;Brand Name:RONDS;
Product Description

Built-in IEPE circuit, isolation output, constant current power supply.
Laser seal welded
IP68 design, outdoor using available
Military connector, can be used in harsh industrial field
Unconditional lifetime warranty


Parameter
Index
Remarks
Sensitivity
100mV/g
Acceleration Rnage
80g
Amplitude Linearity
1%
Frequency Response (±10%)
0.7~10000Hz
Frequency Response (±3 dB)
0.4~15000Hz
Resonance Frequency
26KHz
Transverse Sensitivity
≤5%
Mount Screw Thread
6mm
Bias Voltage
10-12VDC
Constant Current
2-20mA, Typical  4mA
Voltage Excitation
18-30VDC, Typical  24VDC
Output Impedance
<100Ω
Casting  Dielectric Resistance
>108Ω
Maximum Shock Level
5000g
Weight
81g
Dimensions
DXH, 23x50.9mm
Sealing Arrangement
Laser welding
Sensor composition
Plane shear
IP Grade
IP68
Casting Material
316L Stainless Steel
Output Mode
Top Output, 2pin Mil-C-5015
Temperature Range
-40~+120℃
Mount Torque
About 2.7~6.8N.m (M6)
Certificate
CE
Anti-explosion option
Explosion Proof Identification
ExiaIICT4

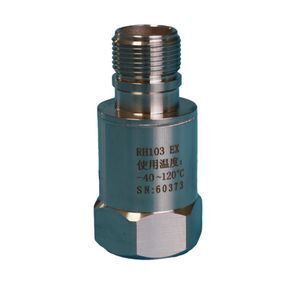

RH103 EX, Used for Area 0,1,2
Temperature Measuring Option
Measuring Range
0~120℃
RH103T, Output: 3pin Mil-C-5015
Certifications
Projects

RH102 in xx steel mill

RH1000 - RH103 in xx power plant

RH103 in Singapore xx water plant

RH1000-RH103 in xx wind farm

RONDS FACTORY

Assembly Workshop


Testing Device


Circuilt Testing


Logo Marking


Remote Diagnosis Center

Case Library

Our Company

30 Professional vibration analysists

Diagnosis experts with more than 20 years’ experience
CAT III vibration analysts
CAT II vibration analysts

Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members

Our Service

Pre-Sales

* Technical plan support.

* Inquiry and consulting support.


After-Sales

* Remote training how to install and use the software and hardware

* Professional suggestions on data analysis.
