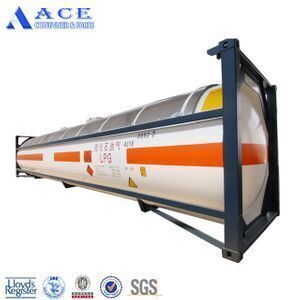

ASME Standard LR Certified New LPG 40 feet iso tank container

Supplier: ACE Container & Parts Co., Limited
Region: Tianjin, China
Contact: Mr Aaron Liu
Price: $30000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material Flanges:	SA350LF2;	External Dimensions(l x W x H)(mm):	12192 x 2438 x 2591MM;
Brand Name:	ACE;	Supply Ability:	300 Piece/Pieces per Month;
Frame Material:	Q345D or equivalent;	Material Shell and Heads:	SA612N;
Capacity:	52500L;	Place of Origin:	Tianjin China (Mainland);
Length (feet):	40';	Design Temperature:	-40 to + 55 °C;
Type:	18 BAR T50 GAS TANK;	Packaging Detail:	40' iso tank container has no package requirement;
Port:	Shanghai;	Type:	Tank Container;
Name:	40' iso tank container;	Certification:	CSC;
Design Approval:	Lloyds Register or BUREAU VERITAS;	Payment Terms:	L/C,T/T,Western Union;
Inspection & Certification:	Lloyds Register or BUREAU VERITAS;	Design Code:	ASME VIII Div. 2 with ASME U2-Stamp AD 2000-Merkblatt;

Product Description

Specifications - 40' iso tank container
Frame Dimensions (L x W x H)		12192 x 2438 x 2591 mm
Nominal Capacity		52500 litres (approx)
Maximum Gross Mass		36000 kgs
Tare Mass (Nominal)		12,000 kgs (with baffles) (+/- 3% tolerance)
Design Temperature (Frame & Tank)		-40 to + 55 °C
Pressure	Working pressure	18 bar
	Test pressure	25.7 bar
Material	Tank	Shell & Heads: SA612N; Flanges: SA350LF2
	Headframes	Q345D or equivalent
Manhole	- One (1) manhole at rear end of the container - DN500 inside diameter, with bolted cover - Spiral wound gasket (PTFE/304)
Safety Relief Valve	- One (1) flange for safety relief valve on top of tank (approx 18 offset from vertical center-line. - Size DN80, equipped with Fort Vale relief valve (FV 015/22615F), Fort Vale Bursting Disc, manometer (FV920/20TTBBSPDRY), and custom seals. - Gasket PTFE.
Liquid Line	- One (1) flange 2" (DN50) for internal bottom valve and external a manual operated Fort Vale 2" ball valve (FV 802B/0010L) - Internally a dip pipe to the bottom of the tank, with sump in tank-wall - Gasket PTFE/304. - Ball valve provided with blind flange and 3¼" ACME coupling with cap - One (1) purge cock on the ACME coupling.
Gas Line	- One (1) flange 2" (DN50) for internal bottom valve and external a manual operated Fort Vale 2" ball valve (FV 802B/0010R) - Internally a stand pipe to the gas phase - Gasket PTFE/304. - Ball valve provided with blind flange and 1¾" ACME coupling with cap - One (1) purge cock on the ACME coupling.
Manometer	- One (1) ½" connection for pressure gauge, connected to the gas phase of the tank. - External a DN15 ball valve and a ¼' manometer 0-40 Bar (FV 920/40RBSP)
Thermometer	- One (1) ½" connection for pressure gauge - Thermometer range -40 to +100 ºC and -40 to +212 ºF, dual scale
Design Code	ASME VIII Div. 2 with ASME U2-Stamp
Design Approval	Lloyds Register or BUREAU

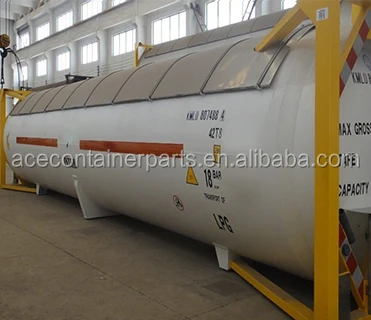

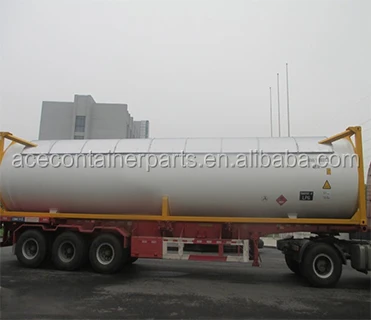

Detailed Image

Production Process

Our Company

ACE Container & Parts Co., Limited, which is a supplier of shipping container and container parts in China. The main products include ISO dry container, reefer container, tank container, offshore equipment and container house, etc.

The main export countries include United States, Canada, Australia, Japan, New Zealand, Malaysia, Korea, India, South Africa, Germany, Spain, Netherlands, the United Arab Emirates, etc. With professional product knowledge and many years of export experience, won a good reputation all ove the world.

Certification

FAQ

5.1. Are your 40' iso tank container for sale brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.

5.2 Does your 40' iso tank container meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11

5.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production

5.4 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
