Professional Supplier and Full range of Shipping Container Parts and Accessories

Supplier: ACE Container & Parts Co., Limited
Region: Tianjin, China
Contact: Mr Aaron Liu
Price: $990.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Door Rubber:	EPDM;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Supply Ability:	1000 Piece/Pieces per Month;	Corner Casting:	SCW49;
Packaging Detail:	As per your request;	Structure Material:	Corten steel;
Qualification:	With BV, ABS certificate;	Keyword:	marine container parts;
Port:	Tianjin, Shanghai, Qingdao;	Type:	Container Parts;

Hot Sale Products

ISO1161 Container Corner Fitting

Container Door Locking Parts

Container Door Hinge

28mm Container Plywood

EPDM Container Door Gasket

Corten Steel Container Roof Panel

Product Description

marine container parts/container panels

1.1 Product Introduction:
* ACE proide full range of iso container parts with good quality and reasonable price

* ACE have exported iso dry container parts to Over 40 Countries

* ACE are the No. 1 Seller of container parts

Part	Descriptions	Dimensions(mm)	Material
Door End	ISO Corner Fitting, 8pcs/set	178x162x118	SCW490
		Door Hinge Set	Blade, Pin, Lug, Bush
		Container Door Locking Device
		Door Gaskets	1143x2254	EPDM
		Gasket Retainer		SUS304
		CSC plate	0.8x100x200	SUS304
		Door Panel (3 CORR)	2.0X943X1957	CORTEN
		Door Vertical Member Edge SQ.Tube	3.2x50x100x2260	CORTEN
		Door Horizontal Member Edge, Channel	3.0x50x150x1024 or 943	CORTEN
		Door Sill	4.5x158x150x2400	CORTEN
		Door Header Lower	4.0x112.5x113x137.5x2400	CORTEN
		Rear Corner Post inner	12x113x40x2353	CORTEN
		Rear Corner Post outer	6.0x70x39x230x2400	CORTEN
Front End	Front End Panel	2.0x1024x2400	CORTEN
		Front Corner Post	6.0x209x225x2400	CORTEN
		Front Bottom Rail	4.0X115X154x2400	CORTEN
		Top End Member SQ.Tube (Horizontal)	3.0x60x60x2112	CORTEN
Roof	Container Roof Panel (5 CORR)	2.0x1045x2356	CORTEN
		Door Header Upper (Extension Plate)	3.0x388x2400	CORTEN
		Top End Rail (Extension Plate)	3.0X397x2400	CORTEN
Side	Container Side Panel	1.6x1116x2400	CORTEN
		Top Side Rail, SQ. Tube	3.0x60x60x5702	CORTEN
		Ventilator Cover	204x67x25	ABS
Base	Container Plywood Flooring, 19ply	28x1160x2400	Hardwood
		Floor screw	L=5 to 120
		Bottom Side Rail	4.5x50x162x30x5702	CORTEN
		Cross Member Small	4x45x122x45x2350	CORTEN
		Cross Member Large	4x45x122x75x2350	CORTEN
		Fork Pocket Bottom Plate	360x300	CORTEN
		Fork Pocket Top Plate	360x2350	CORTEN
		Gooseneck parts		CORTEN
Other	Lashing Ring		SS41
		Hexagon Set screws Nuts and Bolts	L=6 to 200	CORTEN
		Sealed pop rivet Blind rivet	4.8*16.5	CORTEN
		Decals: Weight& Capacity, UIC, Container Type, Ower's Serious			CORTEN
		Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring
		Flat Rack: Twistlocks

Details Images

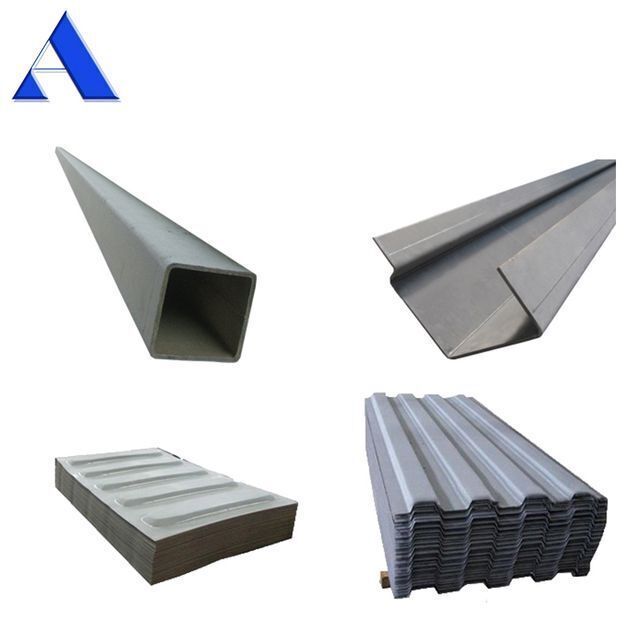

Container Panels

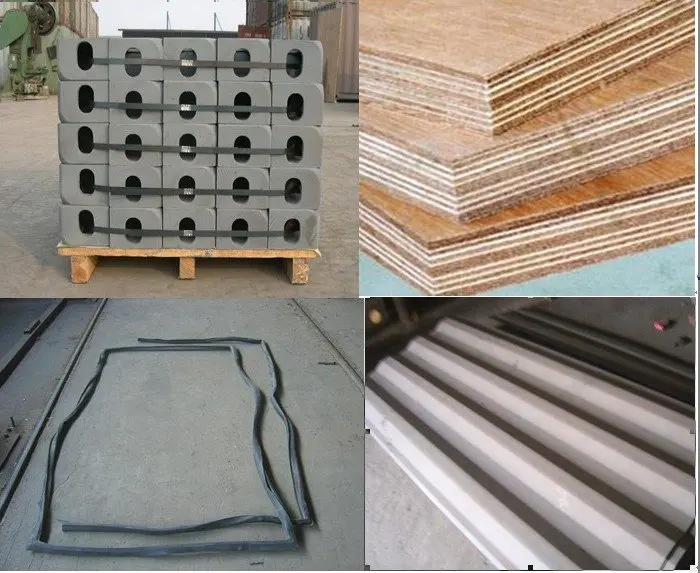

Other Spare Parts

Company Profile

Packing & Shipment

We are sure that our package is standard exported packing, which is strong enough to protect your cargoes from any damage. "This
is Our Responsibility, ACE is Your Best Choice".

FAQ

5.1. Are your container parts good quality?
Sure, all of our container are ABS, BV, GL, CCS certificate.

5.2 Can we order mixed parts from you?
Of course, you can.

5.3 Any surface treatment for your container parts?
With zinc rich primer coating or galvanised.

5.4 Can we order a container to load our parts from your company?
Sure, that will be good. Maybe it's very hard to loading and unloading for parts,
If use SOC container, it will be convenient for you.

5.5 Which port you can deliver container in China?
We have container yard in Shanghai, Tianjin, Qingdao, Dalian, LianYunGang,
Ningbo, Xiamen, Guangzhou, Shenzhen.
