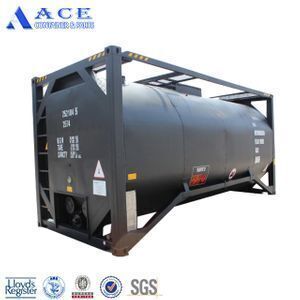

ASME Standard 20ft T3 Portable Insulated Bitumen Tank Container

Product details
Payment Terms:L/C,D/A,T/T,Western Union;Packaging Detail:For bitumen container, there is no any package requirement.;
Length (feet):20';Supply Ability:500 Unit/Units per Month bitumen tank container;
Delivery Detail:21 days;Certification:BV,GL,ABS,CCS;
Stacking:192000KGS;Brand Name:ACE;
Max. Capacity (Nominal):20000L;Model Number:ISO;
Type:Tank Container;Application:BV,LR,CCS;
Design Temperature:-20to +170 ℃;Tare Mass:6700KGS;
Max. Gross Mass:30480KGS;Capacity:20000L;
Name:bitumen container;Working pressure:1.76Bar;
Frame Material:SPA-H,Q345D or equivalent;Port:Tianjin, Qingdao, Shanghai;
Place of Origin:Tianjin China (Mainland);Internal Dimensions(l x W x H)(mm):6058 x 2438 x 2591mm;
Internal Size(l x W x H):6058 x 2438 x 2591mm;External Dimensions(l x W x H)(mm):6058 x 2438 x 2591mm;
Hot Selling Product

ASME Standard T11 ISO Fuel Tank Container for Sale

Brand New T3 Bitumen Tank Container Container

ASME Standard 20 Feet Bulk Cement Tank Container

LR Certified 40ft T50 LPG Gas Tank Container

LR Certified ISO New 20ft LNG Tank Container for Sale

New T50 LPG ISO Gas Tank Container with LR Certified

Product Description

1. General introductions_ bitumen container

1. Approval by BV, LR, CCS.
2. Meet requirement of IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
3. Materials: Main body:
16MnDR, Frame: SPA-H,Q345D or equivalent
4. Design Code:
ASME VIII Div 1
5. Design Temperature: -20 to +170 centigrade

2. Specification_ bitumen container
Frame Dimensions (L x W x H)
6058 x 2438 x 2591 mm
Nominal Capacity
20000 litre
Maximum Gross Mass
30,480 kgs
Tare Mass
6700kgs
Design Temperature (Frame & Tank)
-20 to +170 °C
Pressure
Working
1.76bar
Test
2.65 bar
Material
Tank (Shell & Ends)
16MnDR
Frame
SPA-H,Q345D or equivalent
Thickness
Shell
6.0mm
Ends
6.0mm after forming
Corner Casting
SCw49, ISO1161, 8pcs
Data Plates
One set of stainless steel data plates
Design Code
ASME VIII Div 1
Approval
Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR
600, CSC, TC, TIR, ISO UIC, US/UK DOT

Detailed Images

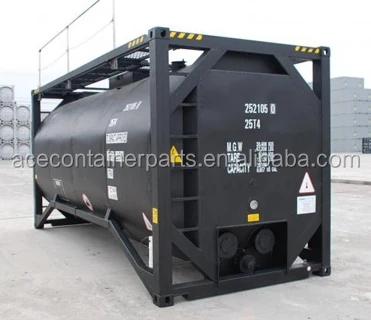

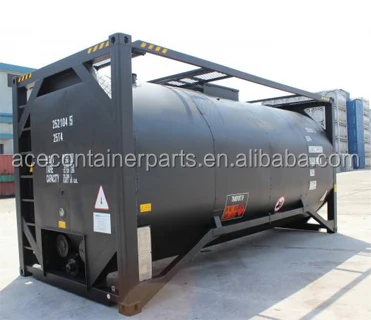

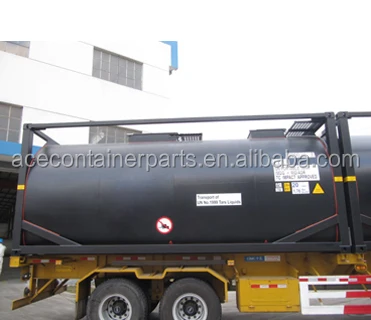

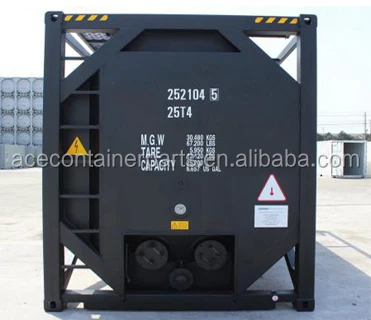

Real Pictures_ bitumen container

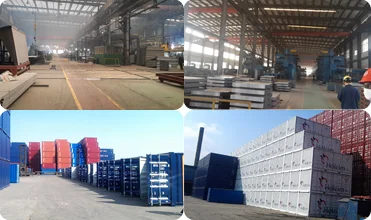

Company Information
     ACE Container & Parts Co., Limited, which is very famous and professional Container and Parts supplier in China, and have been container line for over 10 years, also have exported our product to 55 countries by the end of 2015, including Japan, Korea, Europe, America, Africa etc.
Main business:
     B
itumen Container, ISO Dry Container, Reefer Container, Offshore Equipment, All kinds of Container Parts and Customized Special Container.
Customer Visiting

The buyer from Malaysia visited our company


Mauritius's customer in our office


Japan customer visit the factory


Customers from USA are inspecting container

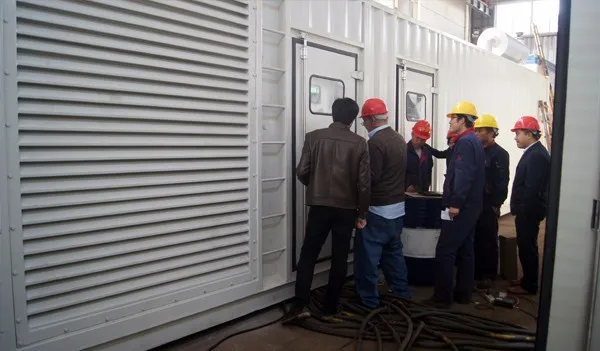

The buyers from Korea view the works how to operate the machine

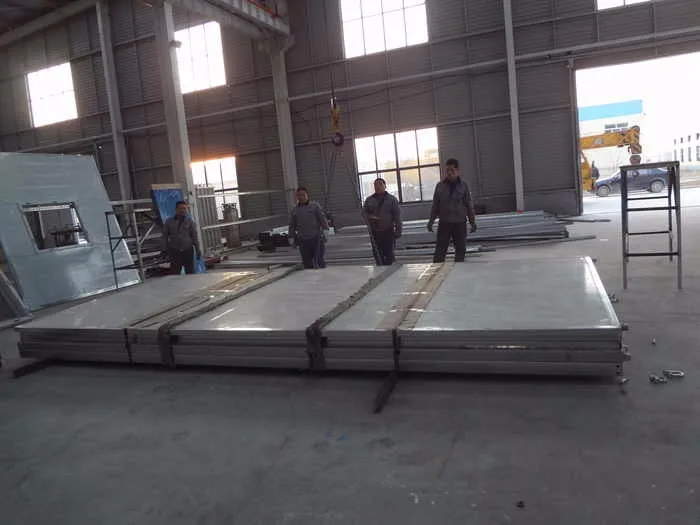

Customers are measuring the container

FAQ
1. Are your bitumen tank container for sale brand new?
Yes, all the bitumen tank container we provided are brand new. In fact, we will produce new container after order confirmation.

2. Does your bitumen tank containers for sale meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11

3. Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production

4. Do you have Small or Large Volume Bitumen Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.

5. Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
