T50 LPG Propane 20ft 40ft ISO Tank Container sale

Product details
Place of Origin:Tianjin China (Mainland);Key word 1:LPG Tank container;
Single gross weight:6,360 KG;Internal Dimensions(l x W x H)(mm):26000L;
Type:Tank Container;Brand Name:ACE;
Key word2:T50 Tank;Selling Units:Single item;
Delivery Detail:0 days after payment;Single package size:605.8X243.8X259.1 cm;
Length (feet):20';Package Type:this is Tank container, will be shipped as SOC directly;
External Dimensions(l x W x H)(mm):6.058 x 2.438 x 2.591M;Certification:CSC;
Capacity:26000L;

T50 LPG Propane 20ft 40ft ISO Tank Container sale


Product Description

1.1 General introductions:

  1.1.1 Approval by BV, LR, CCS.

  1.1.2 Meet requirement of  IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID

  1.1.3 Materials: Main body: Corten-A steel, Vessel: Stainless Steel 316L

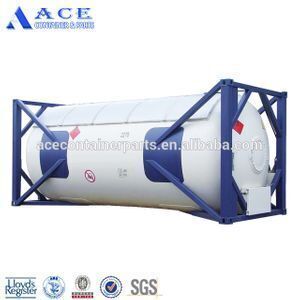

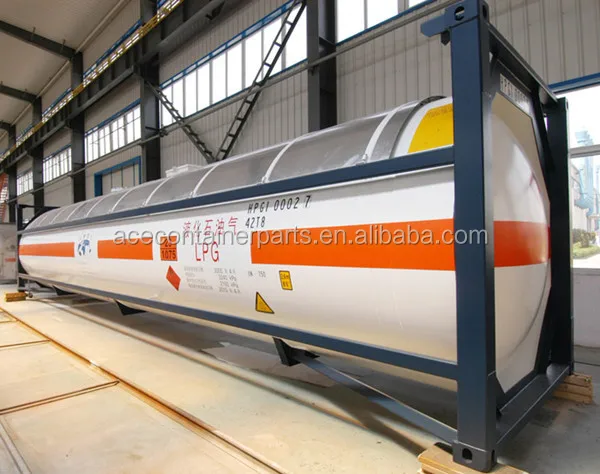

1.2 Real Picture Display - 20 ft LPG Tank container :



Also provide 40ft LPG Tank Container





1.3 Specifications - 20ft LPG Tank container :



Specifications

Approval

Construction

LR / BV / CCS

Vessel

IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID

External Dimensions

6058 x 2438 x 2591

MM

20 x 8 x 8.5

FT

Capacity

26000

L

Payload

24710

KGS

Tare Weight

6360

KGS

Max Gross Weight

36000

KGS

Stacking

192000

KGS

Design Pressure

30

BAR

Design Temperature

-40 to 55

Material

Frame

SPA-H (Corten-A)

Vessel

SA612N

Include

Manhole, Safety Relief Valve, Liguid Line, Gas Line, Pressure Gauge, Temperature Gauge, Sun Shield, Valve Cabinet with lockable door.

Applications:

LPG





1.4 Why Choose ACE? Reliable Quality & Good Service.





1.5 More Details:

1.6 Click Here and view more products.



1.61. Dry Containers: 10ft, 20ft, 40hc, 45hc, Flat Rack, Side Door, etc.

1.62. Reefer Containers: 8ft, 10ft, 20ft, 40hc, 45hc etc.

1.63. Tank Containers: 10ft, 20ft, 40ft, 45ft, etc

1.64. Offshore Equipment: Container, Basket, Reefer, Workshop, etc.

1.65. Full range of Container Parts

1.66. Lashing Equipment: Twist Lock, Bridge Fitting, Turnbuckle etc.

1.67. Trailer Parts: Twistlock, Gearlock, etc.



Our Services



2.1 Buyer's Logo and Color.

2.2 45 day's free storage in our Container Yard after production.

2.3 Accept Third Party Inspection and Testing.

2.4 OEM Tank is available.







FAQ

3.1. Are your container brand new?

Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.

3.2 Does your container meet with international requirement?

Yes, all of our container will be approval by BV or LR or CCS and meet with below requirement for named Tank Container.

ISO 1496/3

UN Transport of Dangerous Goods
UIC International Rail Approval

TIR International Transport Goods under Custom Seal

CSC International Convention for Safe Containers

DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods

CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA

BAM G.D.R Domestic Approval

ISO/TC11





3.3 Can you provide Drawings for confirmation?

Yes, we will provide drawing after order confirmed before production

3.4 Do you have Small or Large Volume Tank Container?

Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.

3.5 Do you provide OEM Service?

Yes, we have a first-class team and could design as per your requirement.





Click Here to contact ACE for more information, you will get prompt reply with professional support.
