Taurus paper straw making machine

Supplier: Weifang Taurus Trade Co., Ltd.
Region: Shandong, China
Contact: Mr CAO
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	The speed:	35-40m/min;
Voltage:	380v;	Brand Name:	Taurus;
Machine size:	350015001200mm;	Dimension(LWH):	350015001200mm;
After-sales Service Provided:	Overseas service center available;	Power(W):	3kw;
Packaging Detail:	LCL Standard Packing: Plastic film with pearl cotton;	Weight:	1300kg;
Machine weight:	1300kgs;	Warranty:	one year warranty;
Working air pressure:	0.6Mpa;	After-sales Service Provided:	Engineers available to service machinery overseas;
The raw material:	Pure wood pulp paper;	Supply Ability:	100 Set/Sets per Month;
Guling unit:	3 layers;	The straw wall thickness:	0.5-2mm;
Place of Origin:	China;	Port:	Ningbo Port;
The straw inner size:	4.7-20mm;	Power:	380V phase 50HZ;
Certification:	iso;	Condition:	New;

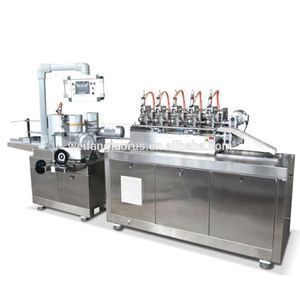

The TR-PS50 high speed paper straw machine integrates raw material feeding ,guling,winding and cutting on one time.
The machine within CNC multi-tool cutting system, can make any size paper straw, like the size 6mm,8mm,10mm,etc.

1.the machine is controlled by PLC, the host machine is equipped with frequency conversion speed regulation and the man-machine interface is a touch screen, with simple settinng ad convenient operation.
2.the cutting part adopts te multi-tool cutting system for serving custtomers and the servo motor keeps track of cutting synchronously with a high precision and time-saving efficiency.
3.the body and main parts are made of stainless steel to ensure the product is hygienic and enviornment-friendly.

Paper layer	3 layer (in side two layer the paper use 120gsm paper, outside layer paper use 60gsm)
Guling unit	3 layer
The straw inner size	4.7-20mm
The raw material	Pure wood pulp paper
The straw wall thickness	0.5-2mm
The speed	35-40m/min
Cutting system	servomotor synchronouos tracking ;knives are cutting in line(standard 5 pcs)
Guling way	Single and double side (50kg glue can make 200000pcs straw)
Power	380V phase 50HZ
Operation person	1-2person
Working air pressure	0.6Mpa
belt	5pcs
mandril	2set
Machine size	350015001200mm
Machine weight	1300kgs
Opeartion space	About 7000*5000mm
Main motor	1.5W*2pcs

1.It can make paper straw?

Yes,exactly.

2.How can I get bag sample to check your quality?

We have free sample available for all dear customers,you just have to pay the cost of freight or air courier.If you place order to us,we can deduct the cost from the total order amount.

3.If I don't know how to operate,how can I get installation and training?

We have an experienced service group,our engineer can go to your factory to give installation and

training approx.1 week.You have to cover all expenses including visa,fight tickets,allowance $80/day

and local accommodation.

4.If there is any problem on machine,how can I solve it?

First of all,we have online service,after submitting and problem we will come up with solution,if you can solve it yourself we will give you procedure step by step teach you solve it,by msg,pic,voice,or video talk.Normally we are good at video talk,and it is most successful method.If any electronic parts in

problem which is occured itself(not improper operation),within one year warranty we will send new

parts for replacement.You just cover the cost of frieght or air lift.

5.What's the lead time and lead term?

Leading time is one month after rceipt of 30%deposit,balance paid before delivery.
