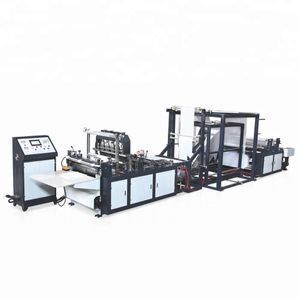

Taurus TRBM-D700 Automatic non woven d-cut bag making machine price

Supplier: Weifang Taurus Trade Co., Ltd.
Region: Shandong, China
Contact: Mr CAO
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	non woven shopping bag making machine packed by pearl cotton, plastic film With a 20'ft container;	Model Number:	TRBM-UD700;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Warranty:	One Year;
Computerized:	Yes;	Brand Name:	Taurus;
Dimension(LWH):	1200018501850mm;	Place of Origin:	Zhejiang China (Mainland);
Production Speed:	20-110pcs/min;	Supply Ability:	10 Set/Sets per Month;
Bag Type:	T-shirt Bag;	Total weight:	2800KG;
Machine Type:	Bag Forming Machine;	Material:	Non Woven Bag;
Weight:	2800KG;	Max.Bag Length:	580mm;
Certification:	ISO;	Condition:	New;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Port:	Ningbo Port;
Bag Thickness:	30-100gsm;	Power supply:	220V,50HZ,8kw;
Voltage:	220V,50HZ;	Dimension:	Dimension;
After-sales Service Provided:	Engineers available to service machinery overseas;	Max.Bag Width:	800mm;

T-SHIRT BAG NEED EXTRA T-SHIRT PUNCHING UNIT

(1)Material:Taurus is concentrated in Non woven bag manufacturing,use nonwoven fabric and

nonwoven laminated fabric as material.non woven bag making machine

(2) Process

T-shirt Bag:Non woven roll feeding-> Fabric folding->Side Welding -> Waste Discharge-> Bag cut-> Bag collection.

D-cut Bag:Non woven roll feeding-> Mouth Fold->Mouth Welding-> D-cut Punch-> Bag cut-> Bag collection.

(3) Application

This machine takes non woven fabric as material, and can make various kinds of different specification and shape bags, such as non woven flat bag(D-cut bag),T-shirt bag (U-cut bag),Shoe bag etc.non woven bag making machine

(4)It adopts the PLC programmable logic controller as main control, touch screen. (Made in Taiwan)

Unwinding tension is controlled by magnetic system.

(5)Edge positioning control system (EPC).

(6)Equipped with photoelectric tracking material, stopping automatically when the material is finished.

(7)Stepping motor for feeding material.(YASKAWA servo motor) for your choice.

(8)Photoelectrical eyes for tracking printed bag and the feeding error.

(9)Vector inverter as speed regulator.

(10)Ultrasonic for cross sealing for export standard quality

(11)Automatic accounting and set table counting alarm.

Model:TRBM-UD700
Roller width	50-1300mm	Bag making speed	20-120pcs/min
Bag length	200-600mm	Bag width	100-800mm
Material thickness	20-100g	Power supply	220v,380v
Total power	6-10Kw	Overall size(LWH)	1000020002100mm

1.How can I get bag sample to check your quality?

We have free sample available for all dear customers,you just have to pay the cost of freight or air courier.If you place order to us,we can deduct the cost from the total order amount.

2.If I don't know how to operate,how can I get installation and training?

We have an experienced service group,our engineer can go to your factory to give approx.1 week.You have to cover all the visa,flight ticket expense and provide our engineer accommodation and allowance $80/day.

4.If there is any problem on machine,how can I solve it?

First of all,we have online service,after submitting and problem we will come up with solution,if you can solve it yourself we will give you procedure step by step teach you solve it,by msg,pic,voice,or video talk.Normally we are good at video talk,and it is most successful method.If any electronic parts in problem which is occured itself(not improper operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieght or air lift.

5.What's the lead time and lead term?

Leading time is one month after rceipt of 30%$ deposit,balance paid before delivery.
