RK400-01 Factory Directly Supply 304SS Pulse Output Rain Gauge 0.2mm Resolution for Irrigation

Supplier: Hunan Rika Electronic Tech Co., Ltd.
Region: Hunan, China
Contact: Ms Fanny Lee
Price: $142.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output Signal:	5pulse/mm (@100Ω&0.01uF);	Item:	Rain gauge;
Collector diameter:	200mm;	Place of Origin:	Hunan China;
Packaging Detail:	1 piece per box,suitable for distance shipment;	Material:	304SS;
Supply Ability:	10000 Piece/Pieces per Month;	Payment Terms:	T/T,Western Union,MoneyGram;
cable length:	1.5m;	operating temperature:	-20~80°C;
Model Number:	RK400-01;	collector height:	350mm;
net weight:	3.5kgs;	Port:	any port in China;
Brand Name:	Rika;	Certificate:	CE;
Mearure range:	≤4mm/min;

RK400-01 Factory Directly Supply 304SS Pulse Output Rain Gauge 0.2mm Resolution for Irrigation

Product Description

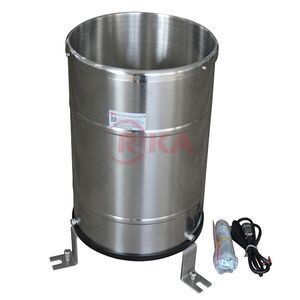

The RK400-01 Tipping Bucket Rain Gauge (self-emptying bucket rainfall sensor) is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, Hydrometric stations, Agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Features

Compact size for easy use
High accuracy, good stability
Mesh in the funnel preventing debris such as leaves and insects from entering the working of rain sensor
Well made tipping bucket with low resistance
Highly polished stainless steel construction
Horizontal Bubble in the bottom

Applications

Water supply system
Hydrologic monitoring
Natural disaster monitoring
Agrometeorological research
Climate research

Specifications:

Item	Specification
Rainfall collector	Diameter :φ200mm, height: 350mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 10mm/min
Resolution	0.1mm, 0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA(pulse output)
Output	Reed switch pulses,RS485(12-24VDC supply)
Operating temperature(no freeze)	-20-+80℃
Main material	Collector:304SS,tipping bucket:ABS
Tipping bucket	Single
Heating(optional)	Heating power: approx.350W Heating voltage:220VAC
Collector filter	Removable filter (prevent leaves and sundries)optional
Weight(unpacked)	3.5kg
