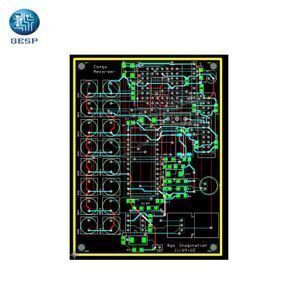

High precision electronic 94v0 PCB board fabrication with rohs

Product details
Place of Origin:Liaoning China;Brand Name:GESP;
Base Material:FR-4;Certificate:ISO/UL/RoHS/TS16949;
Copper Thickness:0.25 oz -12 oz;Board Thickness:1.6mm-3.2mm 0.2mm-4.5mm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;V-cut Scoring:YES;
Base Material:FR-4,CEM-3, Roger,teflon , taconic,arlon , Metal/ceramic/aluminum base;Copper Thickness:0.25 Oz -12 Oz;
Min. Hole Size:0.15mm;Model Number:2 Layer Pcb;
Gold thickness:0.05UM;Supply Ability:8000 Square Meter/Square Meters per Month;
Min. Line Width:5mil;Board Thickness:0.005;
Item:High precision electronic 94v0 PCB board fabrication with rohs;Min. Line Spacing:4 mil;
Port:Dalian, Shenzhen, HK;Standards:IPC Class 2, Class 3;
Surface Finishing:HASL Lead Free/OSP/Soft Gold/Hard Gold;Packaging Detail:High precision electronic 94v0 PCB board fabrication with rohs Inner Packing: Vacuum Bag Outer Packing: Carton;
Max. Panel Size:22;Surface Finishing:HASL/enig/OSP;
Product Description

High precision electronic 94v0 PCB board fabrication with rohs


GESP technology (Dalian) Co.,Ltd. offers Printed Circuit Board manufacturing, providing consistent high quality and affordable price of Printed Circuit Boards. We encourage you to become familiar with our printed circuit board manufacturing competencies. Use the information detailed in the following charts to determine that we are capable of producing with our internal staff. Since we are modifying our PCB production resources, the following information should be considered as the minimum level of services we are capable of providing.

CAPABILITY
STANDARD
ADVANCED
MinimumLayer Count
1
1
MinimumLayer Count
12
40





Material
FR-4 (Tg-135C, 145C, 170C), Halogen- free
Rogers Ultralam 2000, Rogers RO4350, Rogers RO4003
Polyimide
Teflon
Black FR-4
Arlon AR-350
CEM-3
Getek Copper Clad Thermal Substrates
Hybrid (Rogers and FR4) BT Epoxy
Nelco 4013
PTFE
Metal Core Materials
Aluminum Core
Board Thickness
0.020"-0.125"
0.005"-0.250"


Maximum Board Size

16" x 22"
12" x 21"
22" x 28"
10" x 16"
16" x 22"
12" x 21"
22" x 28"
Copper Thickness
0.5 oz – 3 oz
0.25 oz – 12 oz
Minimum Trace Width / Spacing
0.004"/0.004"
0.003"/0.003"
Solder Mask Color
Green, Blue, Black, Red, Yellow, White, Clear, and customized
Silkscreen Color
White, Black, Yellow, Green, Red, Blue and customized
Minimum Hole Size
0.008"
0.004"
Finished Hole Size Tolerance
+/-0.003"
+/-0.002"



PCB Surface Finish
HASL (vertical & Horizontal), Lead Free HASL, OSP/Entek, ENIG, ENEPIG,

HASL + Gold Finger,Immersion Tin(ISn), Immersion Silver(IAg), Carbon

Ink, Hard Gold(Flash Gold), Soft Gold
IPC Class
Class 2
Class 3
Controlled Impedance Tolerance
+/-10 %
+/-5 %
Blind Vias
Yes
Yes
Buried Vias
Yes
Yes
Aspect Ratio
8/1
15/1
Minimum Core Thickness
0.004"
0.002"
Carbon Ink
Yes
Yes
Peelable Mask
Yes
Yes
Solder Sample
Yes
Yes
First Article
Yes
Yes
ISO 9001: 2008
Yes
Yes
ISO/TS16949: 2009
Yes
Yes
UL 94v0
Yes
Yes
PCB Equipments

 PCB TESTING EQUIPMENTS.

GESP technology (Dalian) Co.,Ltd. utilizes cutting edge technology to ensure that all of our products are produced with absolute precision and built to our customers required specifications. We take great pride in offering the most up-to-date facilities and equipment guaranteeing that our products are built fast, efficiently and defect free.

Packaging & shipping
Certifications

ISO9001, TS16949, UL Approval and RoHS compliant

One-stop solution for PCB design, quick-turn prototyping, components sourcing, SMT & Through-hole assembly,

Functional testing, Enclosure assembly.

Full Range of Testing Services:Visual and AOI Inspection, In Circuit Testing, X-Ray for BGA and Functional Testing

Our Company


Gesp Technology (Dalian) Co., Ltd.

GESP technology is a company specialized in Printed Circuit Board production and committed to provide our customer affordable PCB Design Layout and Assembly Service for Prototyping builds.


We have relationship with more than 20 strategic partners in China for PCB manufacturing. Each factory is specialized in different technologies and service, that could satisfy most types of needs and requirements for customers, could save cost, meet development schedule, fulfill Prototyping and Mass Production needs.


GESP offer most types of printed circuit boards, with very competitive prices, IPC acceptability standards, engineering analysis, mass production follow-up, logistic organization, quality control, testing and after sales services.


Our Customers

All of our products have ISO9001, ROHS, TS16949, UL certification, and are sold to dozens of countries and regions, e.g.,  United States, Germany, Austialia, Mexico, French, Italy, Spain, Netherlands, England, Thailand, Turkey, Pakistan and South Korea.




Our Events

We attend the Fair regularly, if you are interested in our products, we can meet in the showroom.

FAQ
Main product

No.1 PCB design and layout service


No.2 Double-side PCB


No.3 Multilayer PCB 4 layer to 40 layer


No.4 PCB assembly
