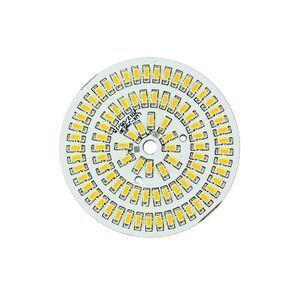

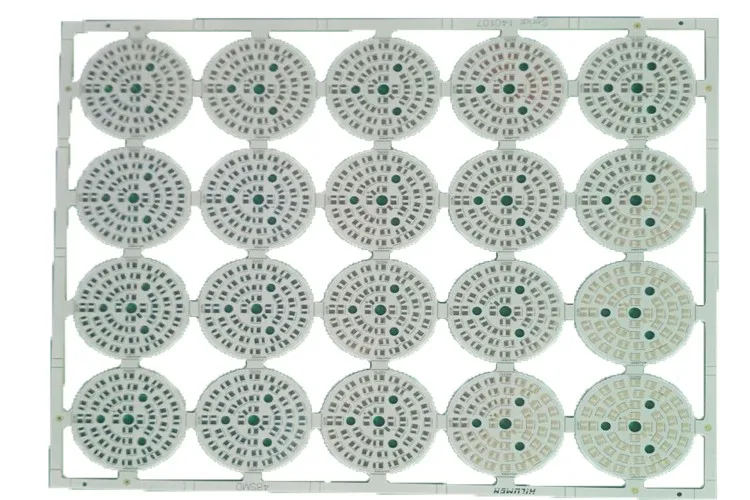

Single sided 6 volt led bulb pcb circuit board

Product details
Blind via:according to gerber;Min. Line Spacing:0.1mm;
Certificate:ISO/UL/RoHS/TS16949;Standards:IPC Class 2, Class 3;
Copper Thickness:0.5-6oz;Max. Panel Size:22" x 28";
Payment Terms:L/C,D/A,D/P,T/T,Western Union,Paypal;Place of Origin:Liaoning China;
Min. Hole Diameter:0.20mm;Board Thickness:0.005"-0.250";
Supply Ability:8000 Square Meter/Square Meters per Month;Base Material:FR4;
Surface Finishing:HASL\OSP\DOLD Finger\ENIG;Port:Dalian, Shenzhen, HK;
Model Number:Customized;Min. Line Width:0.1 Mm;
Surface Finishing:HASL Lead Free/OSP/Soft Gold/Hard Gold;Packaging Detail:Single sided 6 volt led bulb pcb circuit board packaging details: Inner packing: vacuum bag Outer packing: carton;
Brand Name:Gesp;Copper Thickness:0.25 oz -12 oz;
Board Thickness:0.2-3.0mm;Impedance Control:yes;
Base Material:FR-4,CEM-3, Roger,teflon , taconic,arlon , Metal/ceramic/aluminum base;PCB Item:6 volt led bulb circuit board;

Single sided 6 volt led bulb pcb circuit board



Product Description





Other Product

Our main business are PCB manufacture, PCB Copy and PCB design, such as washing machine pcb board, air conditioner inverter pcb board, E- cigarette pcb circuit board, mobile phone pcb board, power bank pcb so on. Other Products:



Company Information

Click To Visit Our Homepage

16 years experience in PCB manufacturing and PCB Assembly

ISO9001, TS16949, UL Approval and RoHS compliant

One-stop solution for PCB design, quick-turn prototyping, components sourcing, SMT & Through-hole assembly,

Functional testing, Enclosure assembly.

Full Range of Testing Services:Visual and AOI Inspection, In Circuit Testing, X-Ray for BGA and Functional Testing.



Our Services

PCB Manufacturing; PCB Layout; PCB Prototyping; SMT Assembly; Through-Hole Assembly; PCB Design, Copy Services; Domestic and Original Components Sourcing; Fixture Test, AOI Test, Functional Test, X-Ray Scan Test for BGA; Enclosure Assembly.



PCB Capabilities

CAPABILITY

STANDARD

ADVANCED

MinimumLayer Count

1

1

Maximum Layer Count

12

40

Material

FR-4 (Tg-135C, 145C, 170C), Halogen- free

Rogers Ultralam 2000, Rogers RO4350, Rogers RO4003

Polyimide

Teflon

Black FR-4

Arlon AR-350

CEM-3

Getek Copper Clad Thermal Substrates

Hybrid (Rogers and FR4) BT Epoxy

Nelco 4013

PTFE

Metal Core Materials

Aluminum Core

Board Thickness

0.020"-0.125"

0.005"-0.250"

Maximum Board Size

16" x 22"

12" x 21"

22" x 28"

10" x 16"

16" x 22"

12" x 21"

22" x 28"

Copper Thickness

0.5 oz – 3 oz

0.25 oz – 12 oz

Minimum Trace Width / Spacing

0.004"/0.004"

0.003"/0.003"

Solder Mask Color

Green, Blue, Black, Red, Yellow, White, Clear, and customized

Silkscreen Color

White, Black, Yellow, Green, Red, Blue and customized

Minimum Hole Size

0.008"

0.004"

Finished Hole Size Tolerance

+/-0.003"

+/-0.002"

PCB Surface Finish

HASL (vertical & Horizontal), Lead Free HASL, OSP/Entek, ENIG, ENEPIG,

HASL + Gold Finger,Immersion Tin(ISn), Immersion Silver(IAg), Carbon

Ink, Hard Gold(Flash Gold), Soft Gold

IPC Class

Class 2

Class 3

Controlled Impedance Tolerance

+/-10 %

+/-5 %

Blind Vias

Yes

Yes

Buried Vias

Yes

Yes

Aspect Ratio

8/1

15/1

Minimum Core Thickness

0.004"

0.002"

Carbon Ink

Yes

Yes

Peelable Mask

Yes

Yes

Solder Sample

Yes

Yes

First Article

Yes

Yes

ISO 9001: 2008

Yes

Yes

ISO/TS16949: 2009

Yes

Yes

UL 94v0

Yes

Yes

PCB Equipments

  PCB TESTING EQUIPMENTS.



Packaging & Shipping

  •  PCB order: Please provide Gerber File and manufacturing specifications.
  •  PCBA order: Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
  •  Reverse engineering and PCB copy service can be supplied with your PCB sample.
  •  PCB design need detail information about the function or supply the drawing.
  •  Any further question, welcome to contact us by sending inquiries.
PCB/PCBA Production Lead Time:

Layers

Sample

First order

Repeat Order

Single Sided

3 days

7 days

6 days

Double Sided

4 days

8 days

7 days

4 Layers

7 days

9 days

8 days

6 Layers

8 days

10 days

9 days

8 Layers

10 days

12 days

10 days

10 Layers

12 days

14 days

12 days

Aluminum Base

3 days

8 days

7 days

FPC Single Sided

5 days

8 days

8 days
