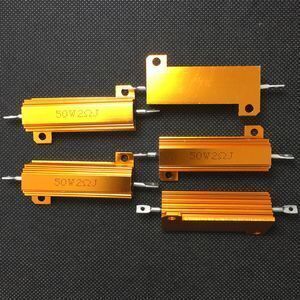

Aluminum Housed Power Wirewound Resistors AH Series 5W 10W 25W 35W 40W 50W 75W 100W 200W 250W 300W

PRODUCT FEATURES:

1. High power rating ,small size and ultra precision.

2. Standard winding &non-inductive winding types.

3. High stability ,strong construction.

4. RoHS compliant

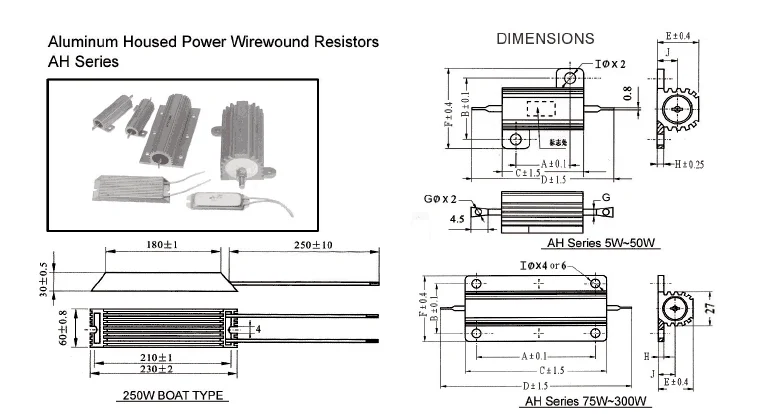

TECHNICAL SPECIFICATIONS

Type	Rated Power(W) Ambient temperature=70℃	Resistance range		Dimensions(mm)
Type	Rated Power(W) Ambient temperature=70℃	Min.	Max.	A	B	C	D	E	F	G	H	I	J
AH-05	5W	1R0	2K7	11.3	12.5	15	28.6	8.5	16.4	1.5	1.6	2.5	4.4
AH-10	10W	1R0	3K3	14.3	15.9	19	35	10.8	20.3	2	1.9	2.5	5
AH-25	25W	1R0	5K1	18.3	19.8	27	49.3	13.5	27.4	2	2.2	3.5	5
AH-35	35W	1R0	10K	23.5	22.8	34	56.6	15.6	28.8	2	2.2	3.5	7
AH-40	40W	1R0	33K	39.7	21.5	50	70.6	15.6	28.8	2	2.2	3.5	7
AH-50	50W	1R0	51K	37	29	55	78	20	37	2	3	3.5	10
AH-75	75W	1R0	62K	35	37	66.5	85.9	27	48		3.5	4.4	11.5
AH-100	100W	1R0	75K	40	37	85	105	27	48		3.5	4.4	11.5
AH-200	200W	1R0	75K	70	57.2	92	146	46	73		5	5.1	20
AH-250	250W	1R0	75K	89	57.2	112	166	46	73		5	5.1	20
AH-300	300W	1R0	75K	104	57.2	130	186	46	73		5	6.6	20

CHARACTERISTICS

TEST ITEM	SPECIFICATIONS
Tolerance	±1%(F) ±2%(G) ±5%(J) ±10%(K)
Temperature coefficient	±50 ±250 10-6/C
Insulation voltage	1000V(605 ~ 610) ,2000V(615 ~ 615 ~ 640)
Insulation resistance	55 / 155 / 21
Temperature range	- 55 ~ 275°C
Load life	ΔR<= ± (5%R + O.1Ω)
Terminal tensile strength	ΔR<= ± (1%R + O.05Ω)
Solderability	IEC68—2—20(1968) ,235°C±5C,2±0.5s(solder bath method)
