Lead Wire: | Copper Wire; | Rated Power: | 1/2W~12W; |
Brand Name: | HS ELECTRONIC; | Place of Origin: | Guangdong China; |
Port: | Shenzhen Port,China; | Supply Ability: | 2000000 Piece/Pieces per Month; |
Packaging Detail: | 1/8W(1/4WS) : 2000PCS/Box or 5000PCS/Box 1/4W(1/2WS) : 1000PCS/Box or 5000PCS/Box 1/2W(1WS) : 1000PCS/Box 1W(2WS) : 1000PCS/Box 2W(3WS) : 1000PCS/Box; | Coating Color: | Gray; |
Marking: | Color band, Alpha/Numeric; | Technology: | Wirewound; |
Temperature Coefficient: | ±250; | Delivery Detail: | 1-10Days; |
Operating Temperature: | - 55°C/ -+ 125°C; | Model Number: | Wirewound Resistors KNP Series; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,PayPal; | Resistance: | 0.01-39K Ohm; |
Type: | Fixed Resistor; | Resistance Tolerance: | ±1% ±5%; |
Package Type: | Throught Hole; |
Our website: http://hs-electronik.com

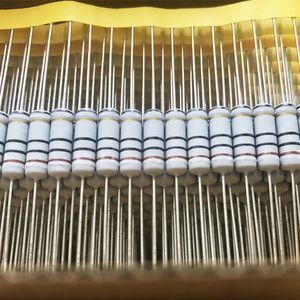

Wirewound Resistors KNP Series 1/2W 1W 2W 3W 4W 5W 6W 8W 10W 12W
Coating Color: Gray
Marking: Color band, Alpha/Numeric
Lead Wire: Copper Wire
Remark: RoHS & Lead Free

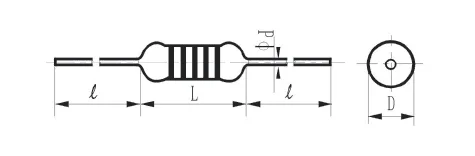

DIMENSIONS
TYPE | DIMENSIONS(mm) | |||
L max | D max | d±0.05 | L±3 | |
KNP1/2W(RX21) | 10.5 | 3.9 | 0.5 | 25 |
KNP1W(RX21) | 12 | 5 | 0.6 | 25 |
KNP2W(RX21) | 16.5 | 5.5 | 0.6 | 25 |
KNP3W.4W(RX21) | 18.5 | 6.5 | 0.6 | 25 |
KNP5W.6W(RX21) | 26 | 9.5 | 0.78 | 25 |
KNP8W(RX21) | 34 | 10 | 0.78 | 25 |
KNP10W(RX21) | 40 | 10 | 0.78 | 25 |
KNP12W(RX21) | 48 | 10 | 0.78 | 25 |
SPECIFICATIONS
TYPE | RATED WATTAGE (70°C) | TCR (PPM/°C) | RES. RANGE(Ω) | RATING. AMB. TEMP | OPERATING. TEMP. RANGE | |
F(+ 1%) | J( + 5%) | |||||
KNP1/2W(RX21) | 0.5W | ±250 | 1-68 | 0.01-68 | +70°C | - 55°C/ -+ 125°C |
KNP1W(RX21) | 1W | 1-300 | 0.01-300 | |||
KNP2W(RX21) | 2W | 1-3K9 | 0.01-3K9 | |||
KNP3W.4W(RX21) | 3W(4W) | 1-8K2 | 0.01-8K2 | |||
KNP5W.6W(RX21) | 5W(6W) | 1-9K1 | 0.01-9K1 | |||
KNP8W(RX21) | 8W | 1-27K | 0.01-27K | |||
KNP10W(RX21) | 10W | 1-33K | 0.01-33K | |||
KNP12W(RX21) | 12W | 1-39K | 0.01-39K |
CHARACTERISTICS
TEST ITEM | SPECIFICATIONS | TEST METHOD |
GB/T5729-94 IEC115-1 | ||
SHORT TIME OVERLOAD | ΔR<= ± (1%R+ 0.05Ω) | 4.13 |
RESISTANCE TO SOLDERING HEAT | ΔR<= ± (1%R+ 0.05Ω) | 4.18 |
WEATHER CYCLE | ΔR<= ± (5%R+ 0.1Ω) | 4.23 |
VIBRATIONS | ΔR<= ± (1%R+ 0.05Ω) | 4.22 |
SOLDER ABILITY | 95% COVERAGE MIN. | 4.17 |
TERMINED STRENGTH | ΔR<= ± (1%R+ 0.05Ω) | 4.16 |
LOAD LIFE | ΔR<= ± (5%R+ 0.1Ω) | 4.25.2 |
SURFACE TEMP. RISE | < 250 °C | 4.14 |
TEMP. CYCLE | ΔR<= ± (5%R+ 0.1Ω) | 4.19 |
FLAME PROOF | 4.26 |

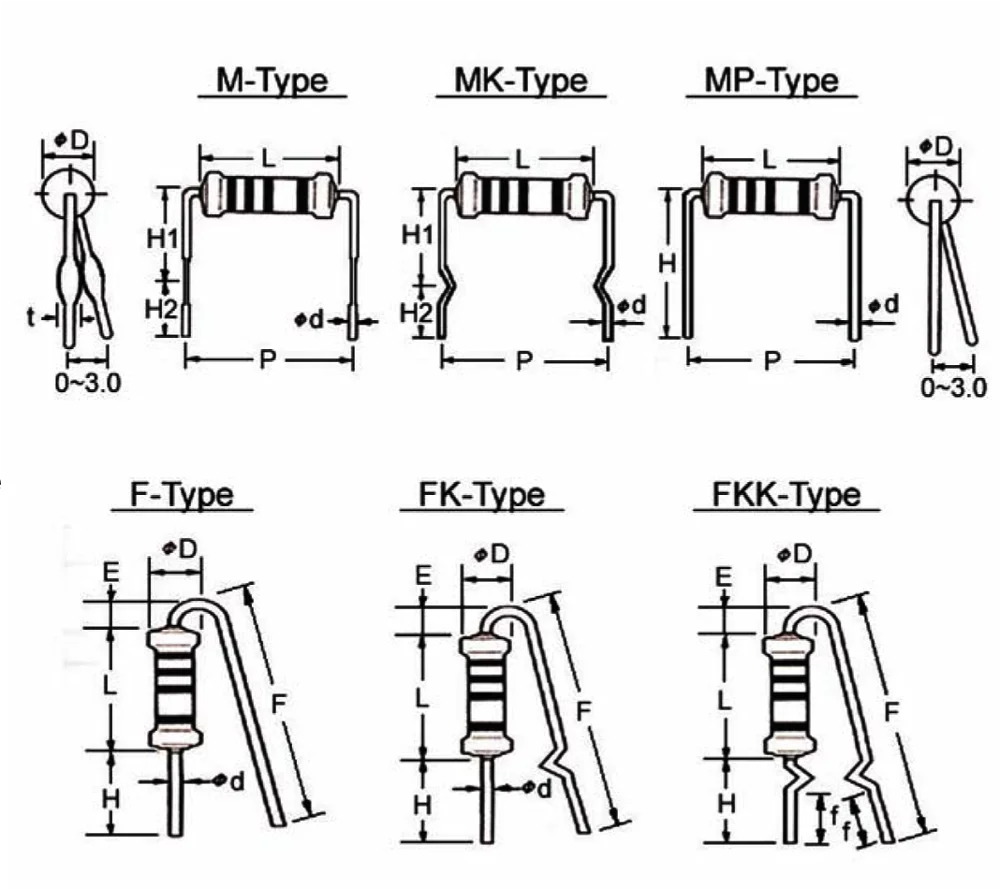

FORMING THE LEG & CUTTING THE LEG
