Supply Ability: | 200 Set/Sets per Year 35HP 4*4WD agricultural machine /mini agricultural equipment/agr; | Place of Origin: | Shandong China; |
Certificate: | CE; | Warranty: | 1 Year; |
Port: | Qingdao/Tianjin/Shanghai; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance; |
length: | 3360; | By wheel: | 4WD; |
structure weight: | 1273kg; | Type: | Wheel Tractor; |
Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Farms,Construction works ; | fuel: | diesel; |
After-sales Service Provided: | Free spare parts,Video technical support,Online support; | Drive Type: | Gear Drive; |
Brand Name: | YF; | rated speed(r/min): | 2400; |
height: | 2000; | engine: | 4TE35; |
Rated Power: | 35 Hp; | Packaging Detail: | The tractor are in nude, 20GP, 40HQ standard exporting package, or according to the buyer's request.; |
Product name: | mini wheel tractor 30 hp tractor; | Usage: | Farm Tractor; |
width: | 1450; | Color: | Customer Requirements; |
Condition: | New; |

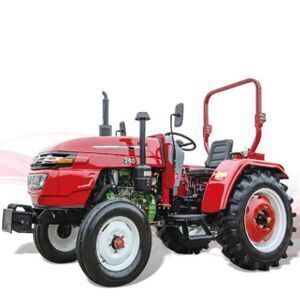

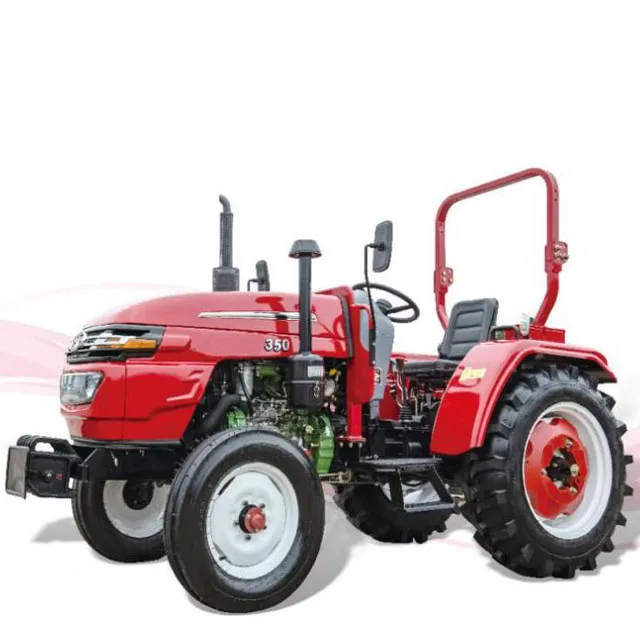

35HP 4x4WD agricultural machine /mini agricultural equipment/agricultural farm tractor for Promotion
Hello!
welcome to browse our products!
This series of products is currently the performance of advanced direct-linked small horsepower tractors, two-wheel drive and four-wheel drive two series. With the transmission efficiency, low vibration, traction, adaptability, start-saving features, is a small four-wheel tractor upgrading. Equipped with a jaw differential lock, improve the unit through; set up a hydraulic output interface, can be directly connected with the dump trailer. (3 + 1) * 2 six-speed or (4 + 1) * 2 eight-speed gearbox; eight-speed gearbox can be a variety of configurations; can be used for single or double-acting clutch according to the needs of different users; Optional crawler; power output can be single-speed, but also two-speed; fixed or adjustable track; rear "O" or "I" class suspension.
YF350Wheel tractor technical parameters | |||
Model | YF350 | ||
type | 4×2wheel | ||
size | length | 3360 | |
width | 1450 | ||
height | 2000 | ||
tread | front wheel | 1000/1100/1200 adjutable | |
rear wheel | 1000/1300 adjustable | ||
axle base | 1775 | ||
Min.Ground clearance | 340 | ||
structure weight(kg) | 1140 | ||
Engine | model | 4TE35 | |
type | inlie water cooled four stroke 4 cylinder | ||
rated power(kw) | 25..8 | ||
rate speed(r/min) | 2400 | ||
fuel type | diesel | ||
tire | front wheel | 5.50-16 | |
rear wheel | 9.50-24 | ||
clutch | single stage dry | ||
steering type | xycloid rotary valve ,full of hydraulic steering type | ||
transimission type | 2×(4+1) 8F+4R | ||
Suspension type | 1 raer positioned 3-point links catageory I | ||
PTO | Type and speed | 720 | |
spline size | φ35,6 6 teeth |
35HP 4x4WD agricultural tractor
Our advantage
35HP 4x4WD agricultural tractor
1.Original /OEM /After Market quality and competitive price-
2.Flexible payment terms.
3.Quick delivery time.
4.Exclusive agent accepted.
5.One-stop purchasing service.
6.Have cooperated with many importers in us for more than 5 years.
35HP 4x4WD agricultural tractor
T/T WESTERN UNION L/C Trade Assurance
Trade Assurance which granted by Aliababa.com.
Protect your payment to make sure that we deliver on time and manufacture quality products as
required.
Packing: The tractor are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
*suitable for gardening, greenhouse, lawn and family work.With the characteristic of compact structure,
*mini size, reasonable power, various function, easy operation, reliable performance and environment protection,
*equipped with standard power output shaft and after the hydraulic output interface, you can complete
*rotary cultivator, mower, snow machines and other farm implements. it is a right tractor for family and small farm
*for agriculture and gardening.
