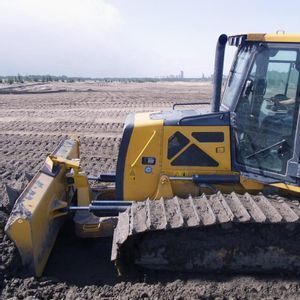

20190215 shantui 80HP 8t small bulldozer SD08 with best price

Supplier: Shandong Infront Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Tony Yang
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Hydraulic Cylinder Brand:	Atos;	Moving Type:	Crawler Bulldozer;
Hydraulic Valve Brand:	Liyuan;	Packaging Detail:	The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the buyer's request. 20190215 shantui 80HP 8t small bulldozer SD08 with best price;
Port:	Qingdao,Shanghai;	Supply Ability:	100 Set/Sets per Month shantui 80HP 8t small bulldozer SD08 with best price;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Condition:	New;
UNIQUE SELLING POINT:	Long lifetime;	Blade type:	Straight tilt blade;
Place of Origin:	Shandong China;	Brand Name:	SHANTUI;
Dimension(Long * Breadth * High):	402024002679;	lift height of blade:	750mm;
Engine Model:	WeichaiWP4G90E235;	Machine Weight:	7.85TON;
Engine Brand:	KAMA;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
number of track rollers(each side):	6;	Warranty:	1 Year;
After-sales Service Provided:	Video technical support,Online support,Free spare parts,No after-sales service;	Gradeability:	30°;
Ground pressure:	0.045Mpa;	Power:	68kw;
Product name:	20190215 shantui 80HP 8t small bulldozer SD08 with best price;	number of carriers(each side):	1;
Rated power(KW/rpm):	68/2350;	blade size W*H(mm):	2400x950;
Hydraulic Pump Brand:	Atos;

Product Description

20190215 shantui 80HP 8t small bulldozer SD08 with best price

20190215 shantui 80HP 8t small bulldozer SD08 with best price

Product Description

The turbo charged engine features strong power, high efficiency and energy saving capabilities, and has a large torque reserve coefficient;
The extended track ensures low ground pressure, high reliability and strong traction;
The planetary power shift transmission features a compact structure, smooth gear shifting, high efficiency and a long service life;
*Forward and reverse motion, gear shifting and steering are all controlled by a single PPC lever;
*Integrated dashboard design makes observation of machine processes more logical;
*The hexahedron cab has a beautiful appearance, wide visibility and is very comfortable;
*Equipped with a straight angle blade, which is used for excavating, transporting, and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.

ITEM	UNIT	SD08YE	SD08YS
LWH	mm	Traction frame 4252×2680×2775	Traction frame 4252×3150×2775 Winch 4882×3150×2775
Operating Weight	kg	8020	8440
Track Gauge	mm	1600	1750
Ground Length	mm	2270
Width of Trackshoe	mm	460	610
Blade Width	mm	2680	3150
Blade Height	mm	950	900
Dozing Capacity	m³	1.93	2.04
Maximum Lifting Height of Blade	mm	750
Maximum Digging Depth of Blade	mm	515
Maximum Tilting Height of Blade	mm	350	411
Cutting Angle	°	52-58
Blade Weight	kg	1211.7
Speed(forward/reverse)	km/h	0-9
Ground Pressure	kPa	38.3	30.5
Minimum Ground Clearance	mm	320
Gradeability	°	30
Model		Cummins QSB3.3
Type		Turbo charged, Water cooled 4-stroke/cycle diesel engine; direct injection; with crank case shield or equivalent
Rated Speed	rpm	2200
Rated Power	kW	59
Cylinder Qty-Cylinder Bore X Stroke	mm	4-95×115
Swept Volume	L	3.3
Max.Torque	N.m/rpm	415/1600
Fuel Capacity	L	192
Coolant Capacity	L	18
Net Engine Weight	kg	275
Specific Fuel Consumption	g/kW-h	≤227
Engine Oil Capacity	L	7
Type		Rigid Suspension
Number of Carrier Roller		2/side
Width of Trackshoe	mm	460	610
Pitch	mm	154
Variable Pump		2
Number of Travel Motor and Reducer		2
System Pressure	MPa	40
Brake Pressure	MPa	2.5
