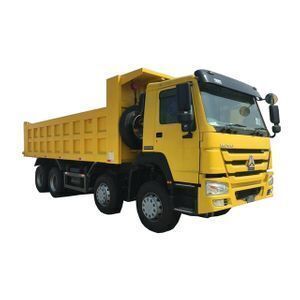

20190806 Infront HOWO DUMP TRUCK ZZ3257N3647

Click here to contact
Product details
Tire:12.00R20;Transmission:HW19710;
Place of Origin:Shandong China;Package Type:Nude or Polish with wax before shipping 20190806 Infront HOWO DUMP TRUCK ZZ3257N3647;
Emission Standard:Euro 2;Engine Capacity:> 8L;
Dimensions (L x W x H) (mm):8545*2496*3450;Cab:Single Sleeper;
Rear Axle:16000KG;Engine model:WD615.47;
Single package size:100X50X27 cm;Horsepower:251 - 350hp;
Transmission Type:Manual;Drive Wheel:6x4;
Condition:New;Driving type:Left/Right Hand Drive;
Single gross weight:68 KG;Capacity (Load):21 - 30t;
Brand Name:HOWO;Fuel Type:Diesel;
Front Axle:9000KG;Certification:CCC;
Gross Vehicle Weight:25000;Product name:20190806 Infront HOWO DUMP TRUCK ZZ3257N3647;
Color:Customer's Request;Selling Units:Single item;

20190806 Infront HOWO DUMP TRUCK ZZ3257N3647

20190806 Infront HOWO DUMP TRUCK ZZ3257N3647

20190806 Infront HOWO DUMP TRUCK ZZ3257N3647

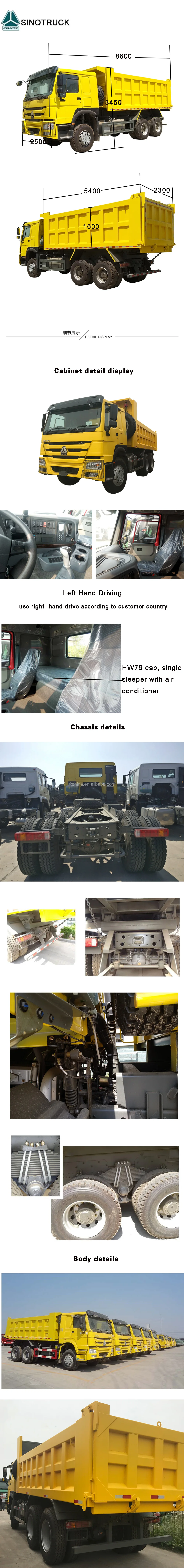

Product Description





Truck Model

ZZ3257N3647

Truck Brand

HOWO

Driving Type

Left Hand Driving

Dimension(Lx W xH)(unloaded)(mm)

8245x2550x3450

Cargo body size (L*W*H)

5400x2300x1500    18m3

Cargo body thickness(mm)

bottom:8mm, side:6mm

Lift type of Carriage

Ventral lifting

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

3625+1350

Max speed(km/h)

75

Curb weight(kg)

12600

Loading Weight(kg)

25000

Fuel tanker capacity(L)

300L with locking fuel cap

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Model

WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling

Horse Power

336HP,247KW/2200

Emission

EURO II

Fuel Type

Diesel

Transmission

Model

HW19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

hydraulic steering with power assistance

Ratio:22.2-26.2

Front axle

HF9 , Steering with double T-cross section beam

Loading capacity:9000KG

Rear axle

HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Loading capacity: 16000kg

Color

Optional

Tire

12.00R20 Steel tires

10+1 spare

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.

Cab

HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Instrument Panel

Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging

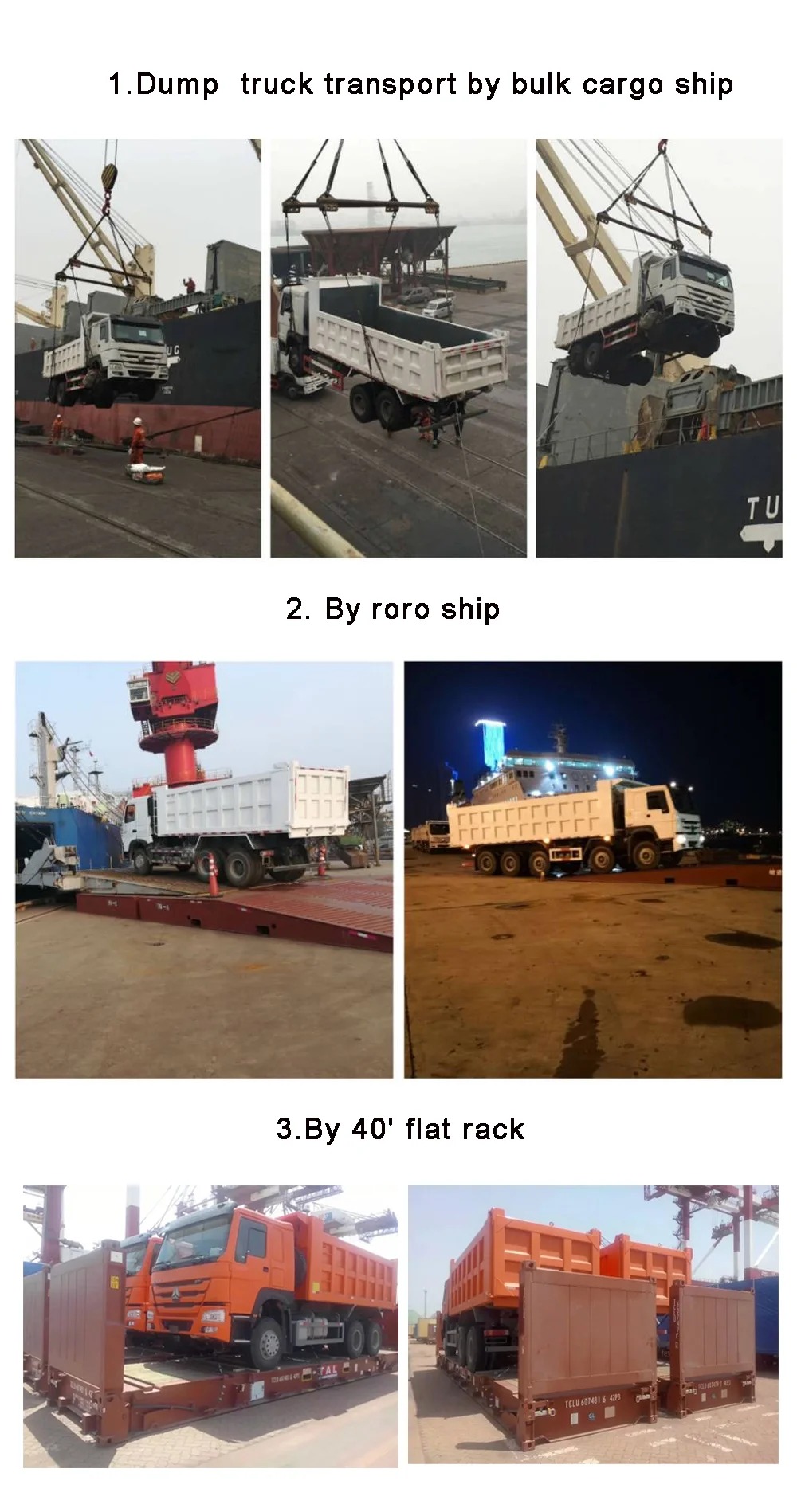

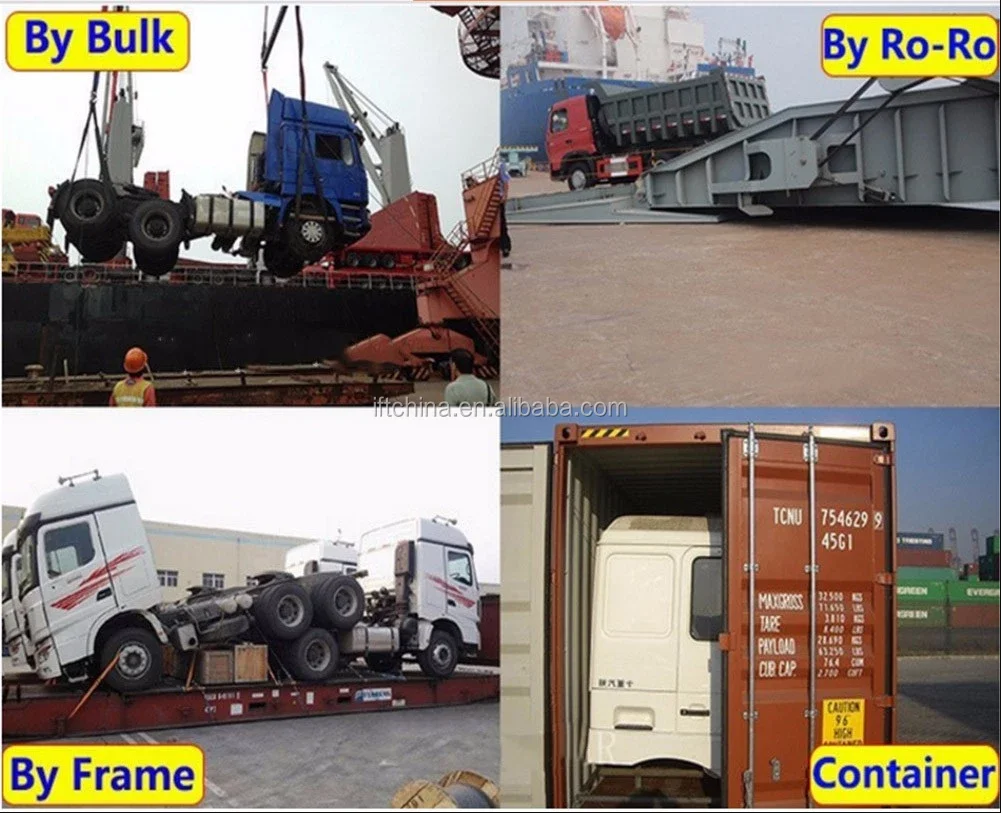

Packaging & Shipping



Our Services



FAQ

1,How long will take to delivery the goods after placing an order?

It will take about 7days after getting the deposit if we have machine in stock. Some customized goods will need about 30days to delivery.



2,If our machines have any problems, When will your side can reply to us?

We will solve your problems immediately once get your message. Usually it will take 1~2hours to give you the solution or explanation.



3,What kind of good policy your can supply if we want to be your distributor?

Special discount and protection of sales area can be provided to your distributor.



4,Which incoterms 2010 terms can we work?

We are a professional and sophisticated international player, can handle all Incoterms 2010 terms, and we normally work on FOB,CFR,CIF,CIP,DAP Etc.



Please kindly provide us the following information before you send us email

1.what rated load you need?

2.do you need air conditioner?

3.you need fob or cif price? which port?



Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Company Information



Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts.

Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world.

We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!

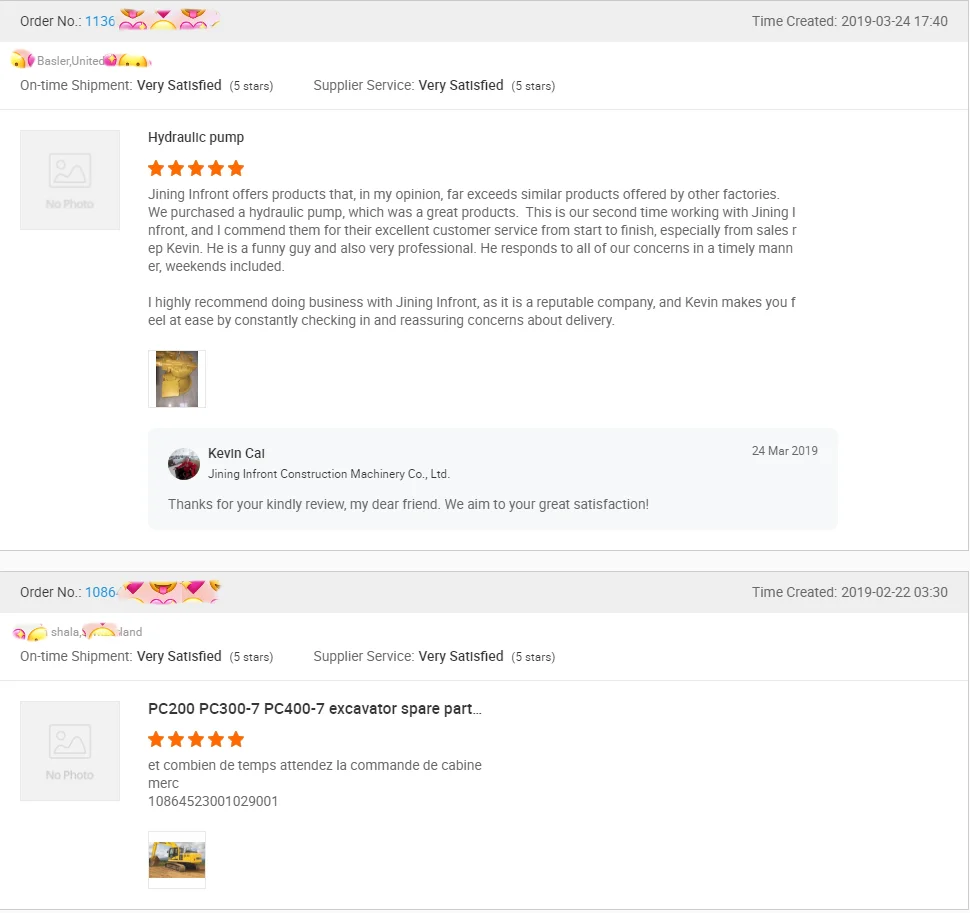

Feedback from customers
