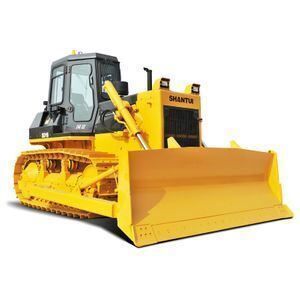

Top seller Shantui dozers SD32 SD23 SD 22 SD16 general mining desert bulldozer

Product details
Model Number:SD13;engine:Shangchai SC8D143G2B1;
gross power(kw/rpm):105/141/1900;Moving Type:Crawler Bulldozer;
number of carriers(each side):2;blade type:straight tilt blade/angle blade;
Machine Weight:13.7Ton;Condition:New;
After-sales Service Provided:Overseas third-party support available;Brand Name:SHANTUI;
net power(kw/rpm):95.5/130/1900;Delivery Detail:Within7 days upon receipt of down payment. Special models about;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;number of track rollers(each side):6;
Supply Ability:200 Set/Sets per Year;Dimension(Long * Breadth * High):4492*3185*2950;
max drop below ground of blade:590;Packaging Detail:The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the buyer's request.;
lift height of blade:930;Place of Origin:Shandong China (Mainland);
Port:Qingdao/Tianjin/Shanghai;dozing capacity:3.7/3.4;
blade size W*H(mm):3185*1090/3745*915;

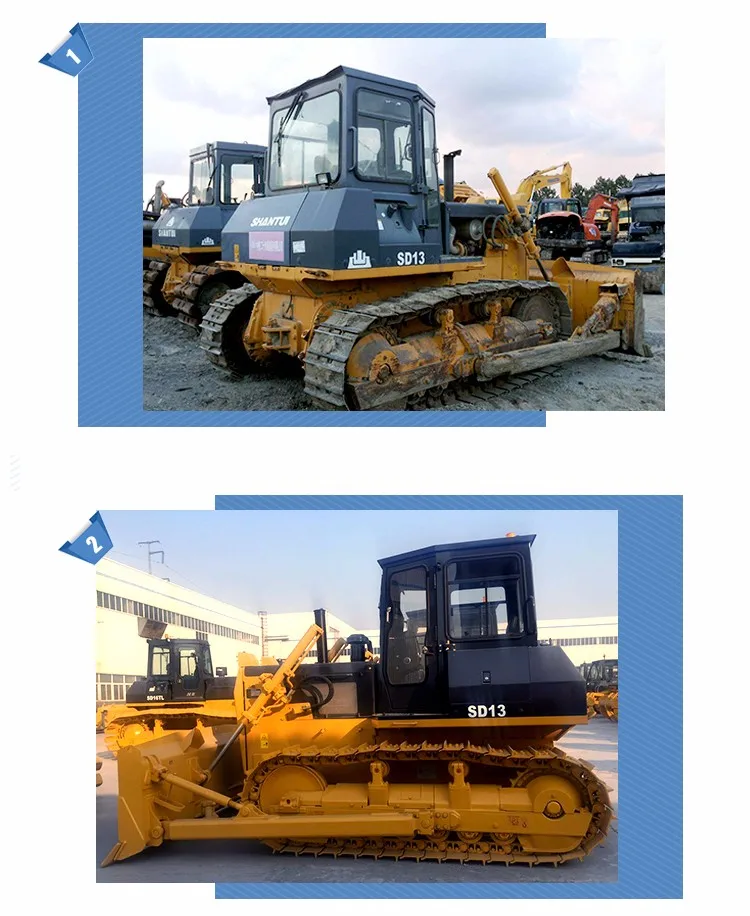

SD13 shantui high performance bulldozer and spare parts SD13 SD16 SD22 SD23 SD32

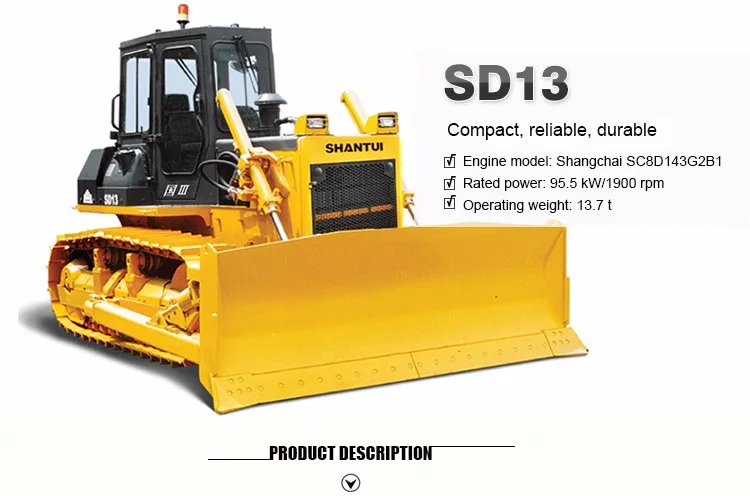

 The SD13 gets mid-range volume jobs done in record time. A smaller version of our best-selling SD16 line, the SD13 delivers all the durability and reliability of its larger cousin series. With a high-power, high-efficiency, turbocharged engine featuring a large-torque reserve coefficient, the 130 hp SD13 is ready for work.Its extended track ensures low ground pressure, high reliability and strong traction while the comfortable wide visibility hexahedron cab and integrated dashboard design help keep operator productivity at peak levels.




Performance Paramete



130 HP
 SD13
Technical
specifications:
Blade TypeStraight-tiltAngle
Min. ground clearance:320 mm320 mm
Ground pressure:0.064 MPa0.064 MPa
Minimum turning radius:4.466 m4.545 m
Gradeability:30°30°
Track gauge:1880 mm1880 mm

ENGINEModel & type

Shangchai SC8D143G2B1; Water-cooled, in-line,

4-cycle, direct injection and turbocharged

Rated power95.5 kW
Number of cylinders6—114 x 135 mm (bore x stroke)
Piston displacement8.27 L
Min. fuel consumption228 g/kW·h
Maximum torque674 N·m@1300 rpm

POWERTRANS
MISSIONSYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionForced connected, planetary gear
Main driveSpiral bevel gear, splash lubrication
Steering clutch

Wet, multidisc, spring loaded, hydraulic helping operation,

mechanical separating, linking steering brake

Steering brake

Wet, floating, band type foot stepping brake

with hydraulic helping

Final drive

2-stage speed reduction of spur gear,

 splash lubrication


TRAVELSPEEDGear1st2nd3rd
Forward0~3.2 km/h0~5.9 km/h0~9.8 km/h
Reverse0~3.9 km/h0~7.1 km/h0~11.9 km/h

UNDERCARRIAGE
SYSTEM
Type

Swing type of sprayed beam,

 suspended structure of equalizer

Carrier rollers2 each side
Track rollers6 each side
Track typeSingle grouser, dry type
Width of track shoes460 mm
Pitch190 mm


HYDRAULIC

SYSTEM

Maximum pressure14 MPa
Pump typeGear pump
Discharge180 L/min

Bore of working

cylinder × no.

90 mm × 2

BLADEBlade typeStraight-tiltAngle
Dozing capacity3.7 m33.4 m3
Blade width3185 mm3745 mm
Blade height1090 mm915 mm

Maximum drop

 below ground

590 mm590 mm

RIPPER(OPTIONAL)Maximum tilt adjustment400 mm

Maximum digging depth

of 3-shank ripper

467 mm
Weight of 3-shank ripper1421 kg
Product Description

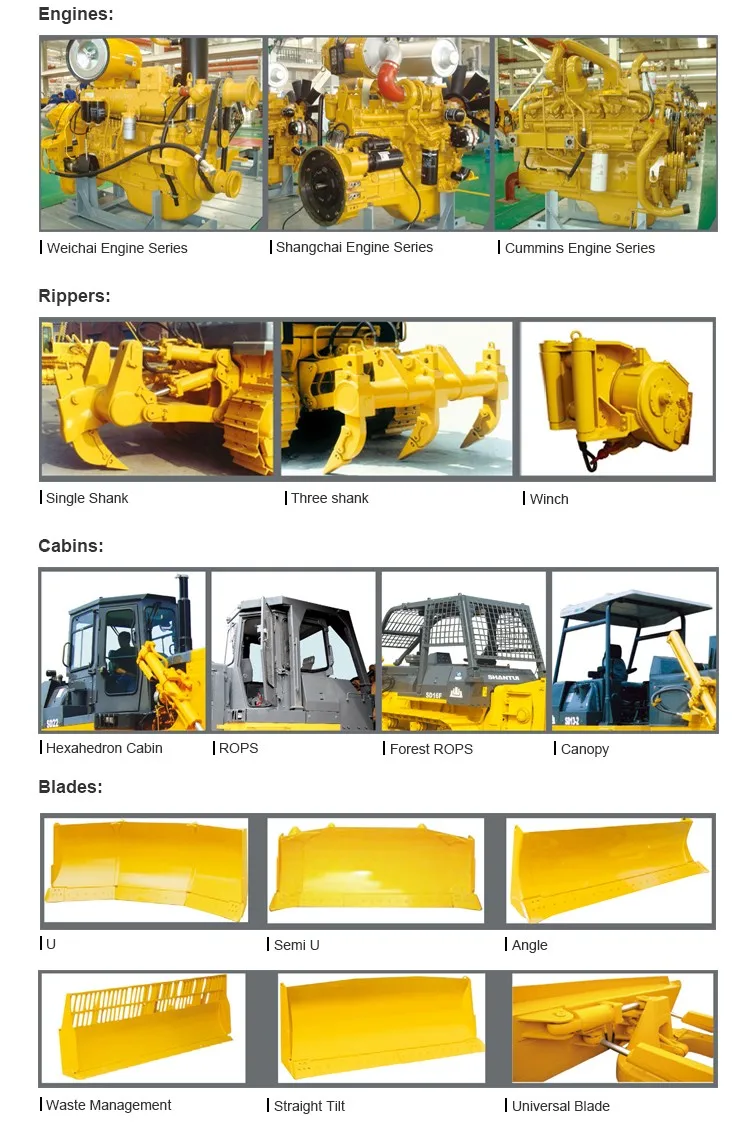

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.





Application

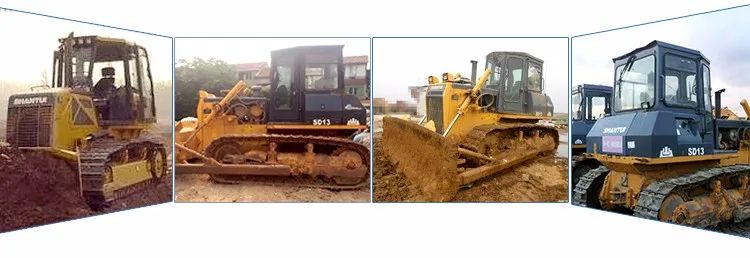

 Pushing,  backfilling and other earthworks.





Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.
