Port Size: | 2"~12"; | Power: | Motorized Butterfly Valve; |
Model Number: | HK60-D-M Butterfly Valve; | Pressure: | ANSI Class 150~300; |
Supply Ability: | 10000 Set/Sets per Month Stocking Items Same Day Shipping; | Structure: | Butterfly; |
Packaging Detail: | COVNA DN50 PN16 2 inch Lug Type EPDM Rubber Seat Cast Steel 12 Volt Modulating Electric Actuator Butterfly Valve Packed with Foam in Carton; | End Connection: | Lug Type; |
Port: | Shenzhen; | Control Mode: | On Off Type or Modulating Type; |
Temperature of Media: | Low Temperature,Medium Temperature,Normal Temperature; | Media: | Water; |
Type: | Lug Type Butterfly Valve; | Power: | Electric; |
Port Size: | DN15~DN300; | Media: | Air, Gas, Oil, Liquid; |
Place of Origin: | Guangdong China; | Payment Terms: | T/T; |
Voltage: | DC12~24V (±10%), AC110-220V, 50/60Hz; | Brand Name: | COVNA; |
Application: | General; | Material: | Cast Steel, Cast Iron; |
Sealing Material: | EPDM, PTFE; |

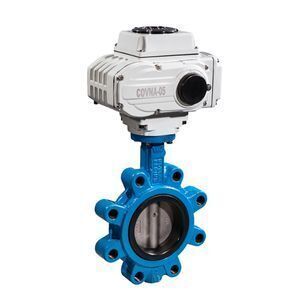

COVNA DN50 2 inch ANSI Class 150 EPDM Rubber Seat Lug Type Cast Steel 12 Volt Modulating Electric Actuator Butterfly Valve
Advantages:

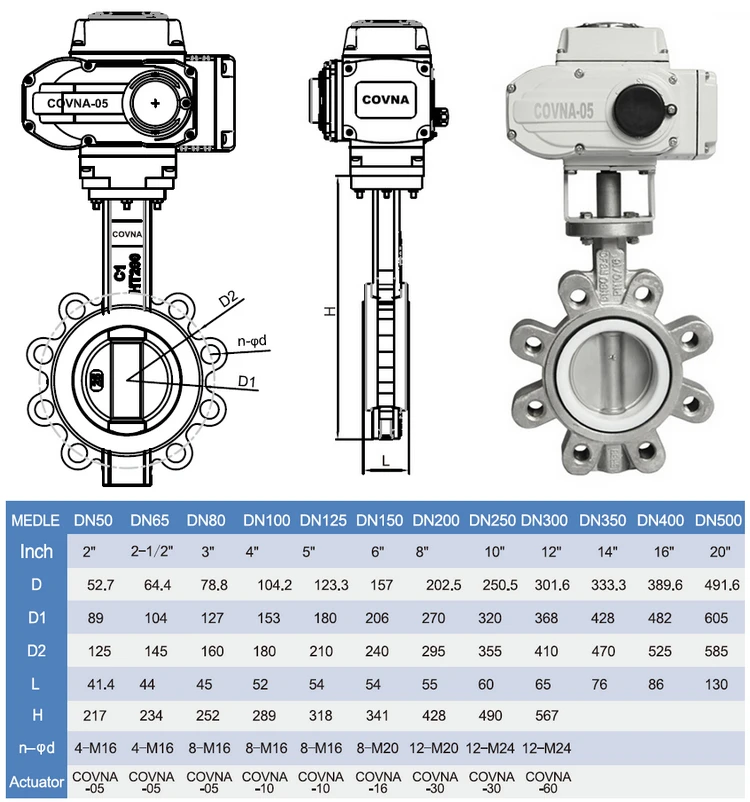

Size Range | 2"~12", DN50~DN300 |
Operating Pressure | ANSI Class 150, Class 300 |
Control Mode | On Off Type / Modulating Type |
Optional Voltage | DC12~24V (±10%), AC110~220V, 50/60Hz |
Body Material | Cast Iron, Stainless Steel |
Disc Material | Stainless Steel |
Sealing Material | EPDM, PTFE |
Stem Material | Stainless Steel |
Connection Type | Lug, Wafer |
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam |
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |

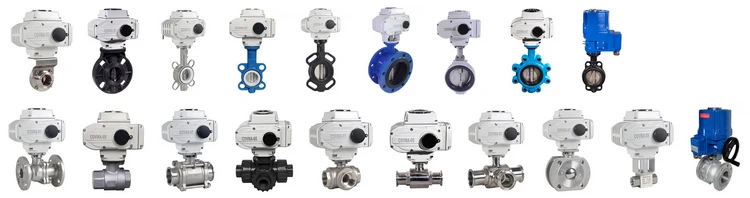

More models are offered!
Click here to ask more info about the quote and the catalog.

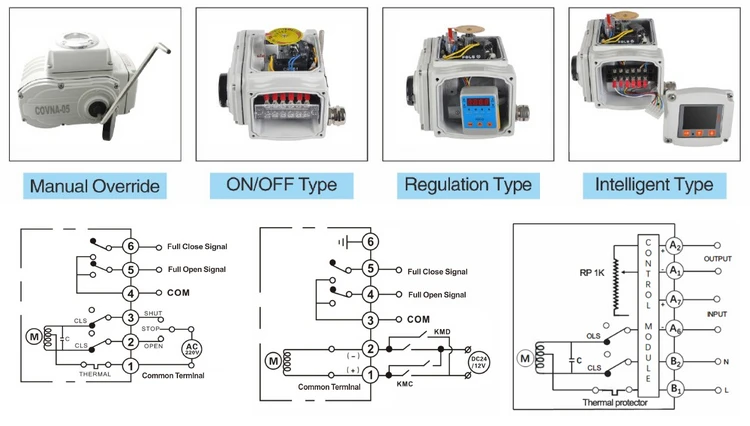

ON/OFF Type (AC Voltage) ON/OFF Type (DC Voltage) Regulation Type (AC Voltage / DC Voltage)
Other AC/DC voltage can also be customized!
<
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
<
