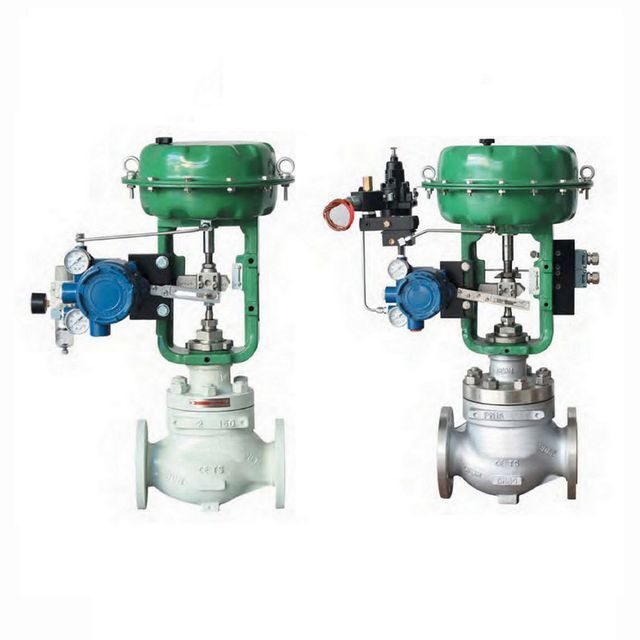

ZJHM Series Pneumatic Diaphragm Control Valve with Positioner Pneumatic Water Vapor Globe Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $573.00 / 1 - 49 sets
$567.00 / 50 - 499 sets
$529.00 / >=500 sets
Min. Order: 1 set

Click here to contact

Product details

temperature:	-30℃~+70℃	structure:	control
place of origin; place of origin:	Guangdong, China	Air supply pressure:	0.14, 0.16, 0.28, 0.4MPa
application:	general	Port size:	3/4"~12"
Packaging Preview:		connect:	Flange
Moderate:	Air, oil, natural gas, steam, etc.	model:	ZJHM Pneumatic Control Valve
type:	Pneumatic Sleeve Control Valve, Globe Valve, Pneumatically Driven Water Vapor Globe Valve	port:	Shenzhen
brand:	Kaufner	media:	water
payment terms:	L/C,D/P,D/A,T/T	Body material:	SS304, WCB
size:	DN20~DN300	Actuator type:	Multi-spring Diaphragm
Medium temperature:	normal temperature	Packaging Details:	Pneumatic Water Vapor Globe Valve Pneumatic Actuator Diaphragm Control Valve with Positioner, Carton Packing Foam
strength:	pneumatic	Working pressure:	1.6, 4.0, 6.4MPa
Warranty:	12 months, 1 year	Supply capacity:	Same-day delivery of 10,000 sets of inventory items per month
Custom Support:	OEM

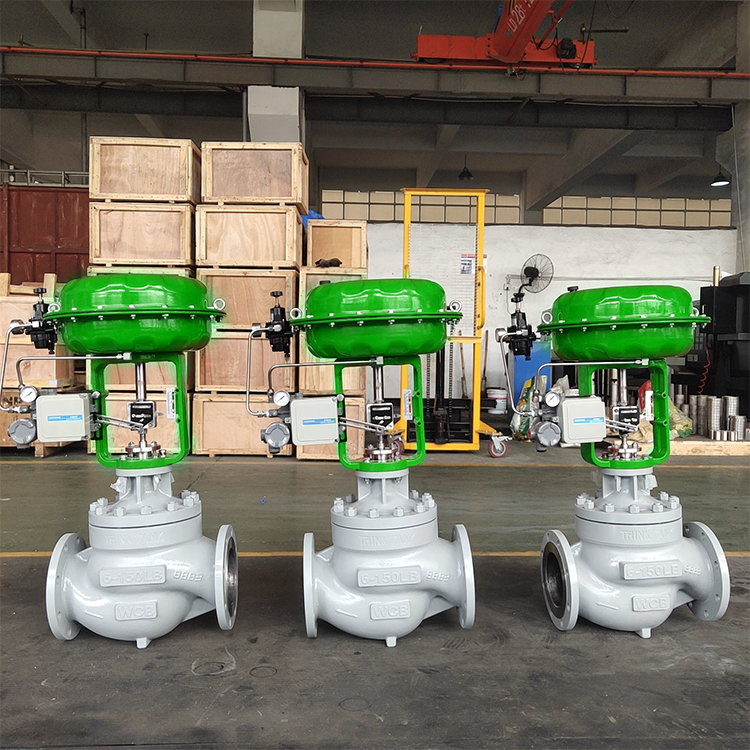

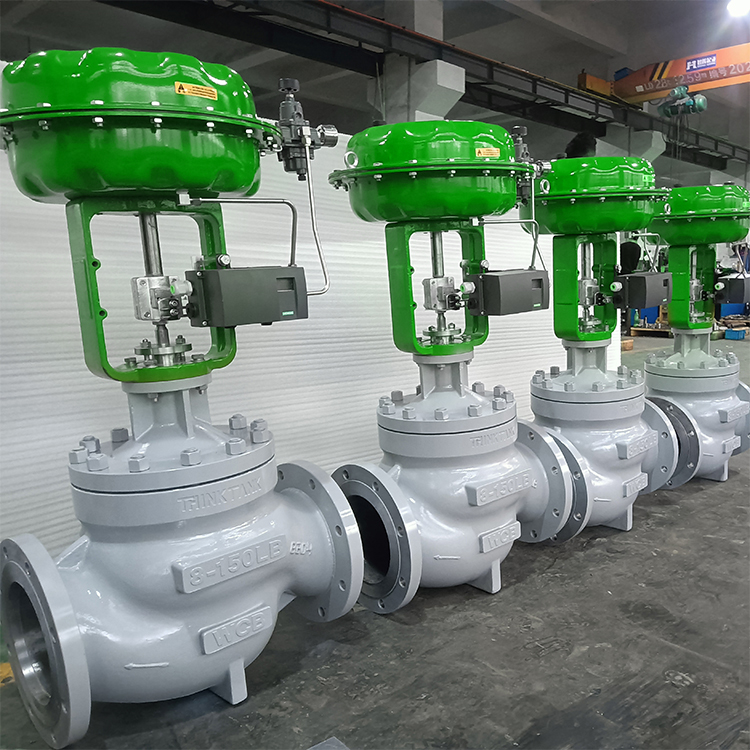

Product Description

Advantages of COVNA Pneumatic Control Valves:

●High cost performance, safe to use, can help you save the maintenance cost of COVNA single seat pneumatic globe valve of the whole system.
● Simple structure, large torque, explosion-proof, short action time, optimized action force, and reliable sealing.
● Perfectly avoid friction, corrosion, emission and other problems.
● Low center of gravity, strong vibration resistance and easy installation.
● Simple control, quick response, intrinsic safety, no need to take additional explosion-proof measures.
● The flow channel is S-shaped streamline, the pressure drop loss is small, the flow rate is large, the adjustment range is wide, and the flow rate accuracy is high.

●COVNA pneumatic control valve has good adjustment stability. For the working conditions with large pressure difference, the cavity of the valve body is enlarged to improve the buffer capacity of the valve body

thing	ZJHM Series Pneumatic Diaphragm Control Valve with Positioner Pneumatic Water Vapor Globe Valve
show mode	Multi-spring Diaphragm
work pressure	0~1.6MPa
Air supply pressure	0.14, 0.16, 0.28, 0.4MPa
life	1,000,000 (1 million) times
temperature	-20℃-180℃
Body material	SS316 (CF8M), SS304 (CF8), WCB
Sealing material	PTFE, EPDM rubber
termination	Flange
Applicable media	Control of water, air, gas, oil, liquid, steam, etc.
Optional accessories	Namur solenoid valve, limit switch, FRL, position indicator, manual override
application	Food and Beverage, Water and Wastewater, Ultrapure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp and Paper, Mining, Boiler and Power Industry

All accessories are available to order!

Click here to ask for more information on quotes and catalogs.

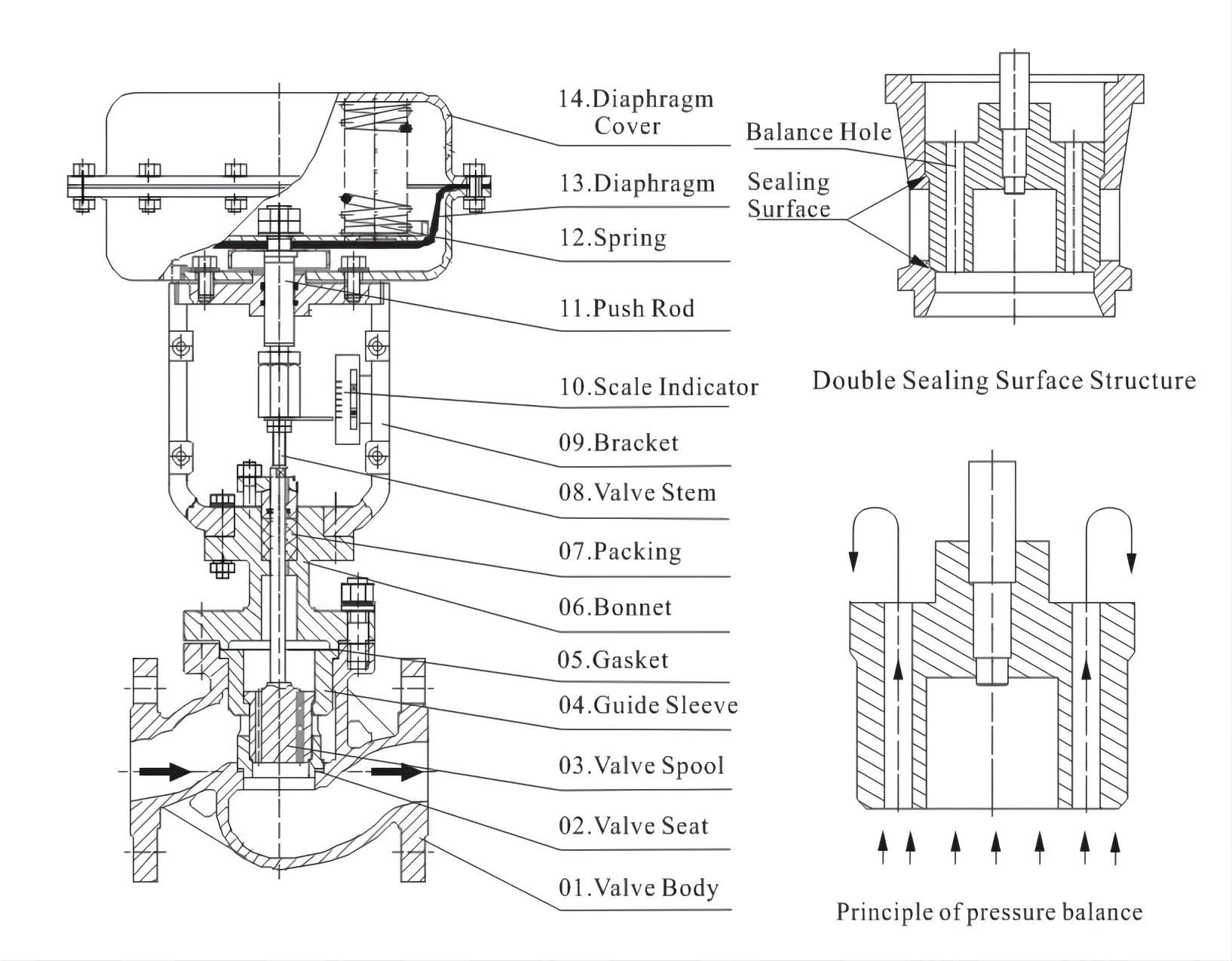

aspect:

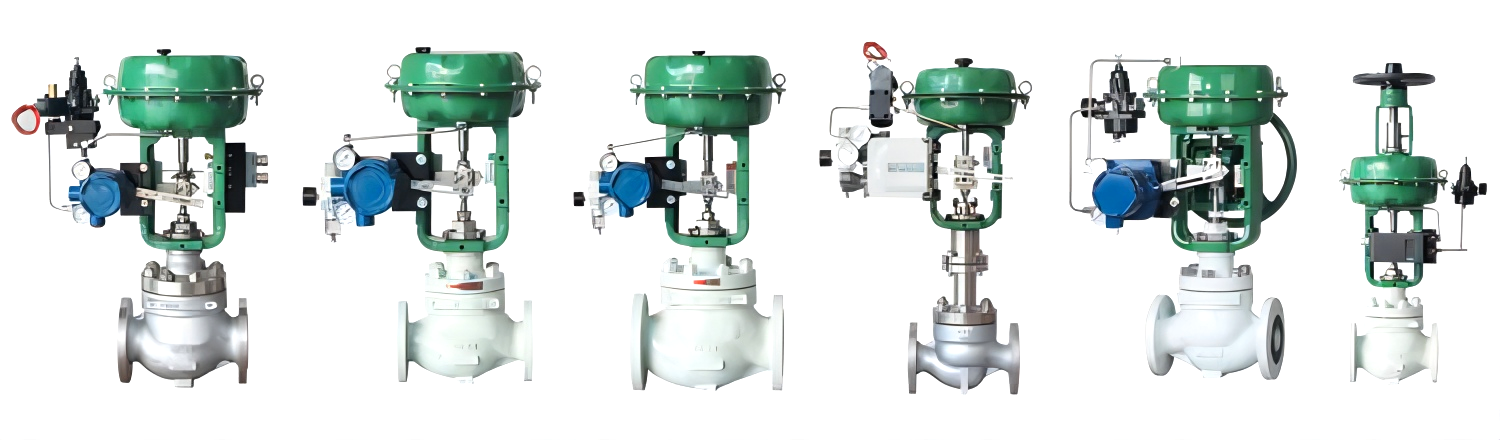

Pneumatic typeMathematical controlol valve:

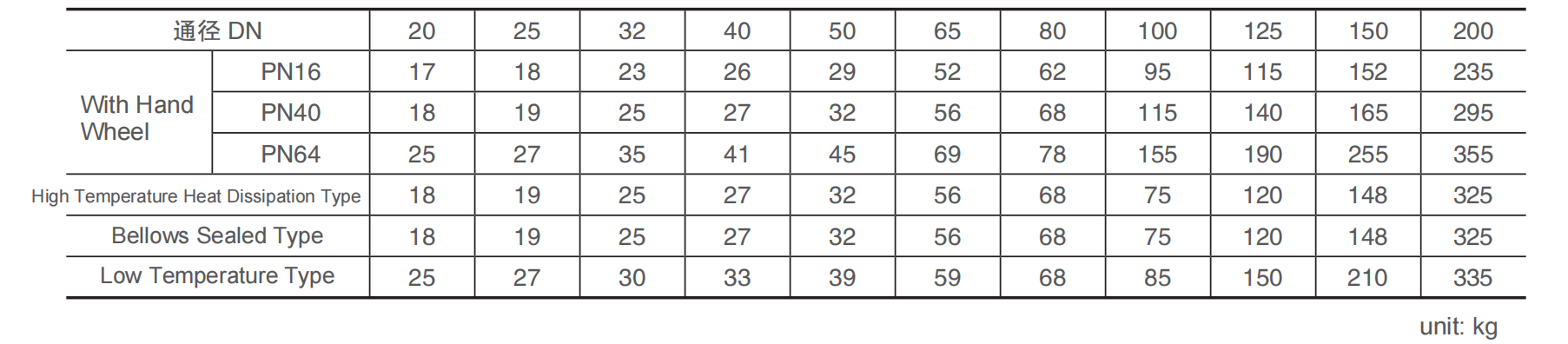

Pneumatic Diaphragm Control Valve Weight Table:

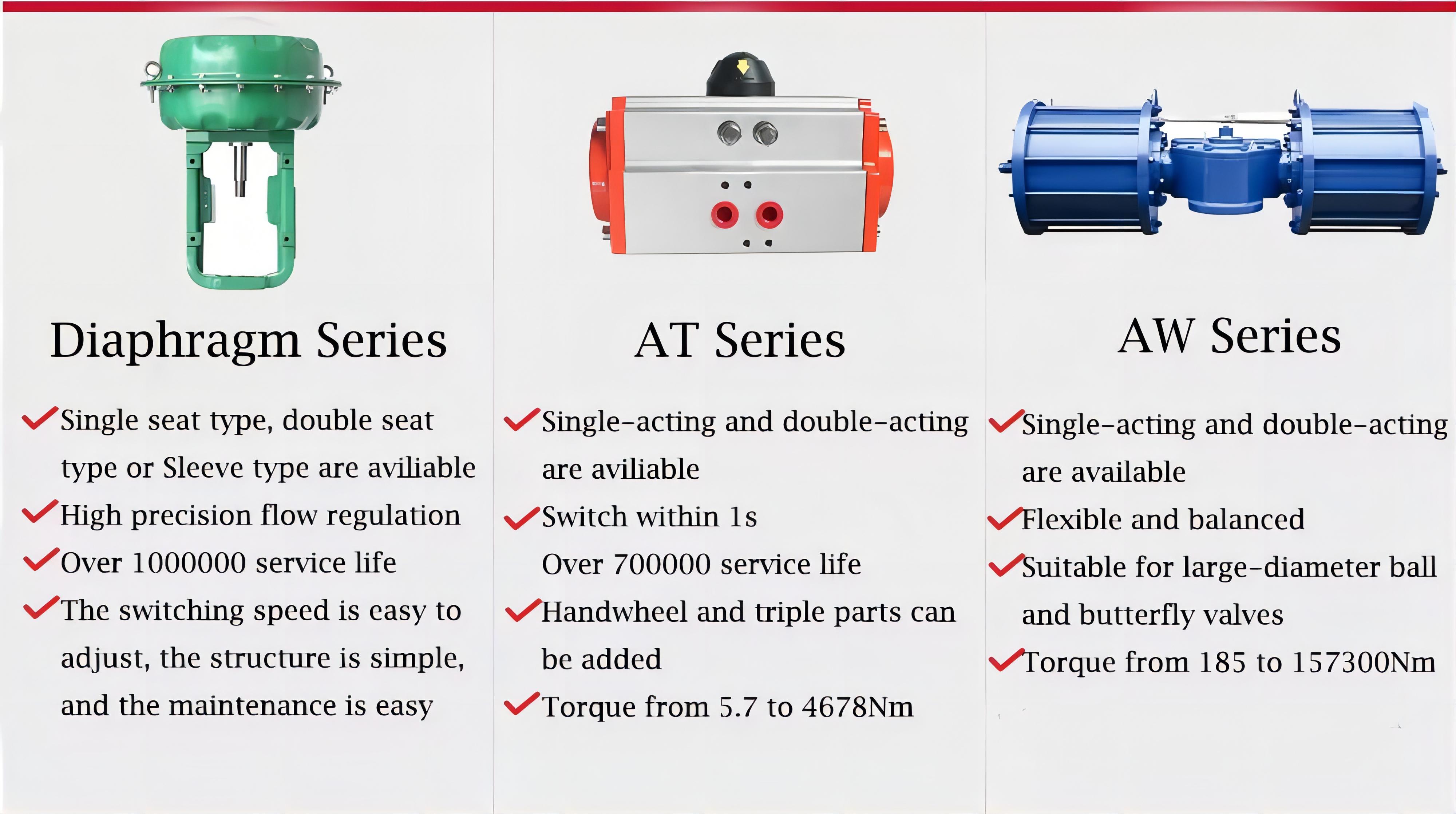

Electric Actuator

Multi-spring diaphragm actuators have forward and reverse action. NBR rubber reinforced polyester fabric diaphragm material. Spring range 20~100KPa, 40~200KPa, 80~240KPa. Supply pressure from 0.4MPa to 0.5MPa.

Control Valve Type\Method	Pneumatic Diaphragm Actuator
		ZJHP～ZJHM
		multi-spring
usage	Adjustment type, ON-OFF type
^{Air supply pressure or supply voltage}	Air supply pressure (spring range) 140 (20 ~ 100) kilopark 240 (40 ~ 200) kilopark 280 (80～240) kilopark
Connector	Trachea connector: RC1/4
direct action	The pressure increases, the valve stem drops, and the valve closes.
reaction	The pressure increases, the valve stem rises, and the valve opens.
input signal	40～20mA.DC (with positioner)
behind	≤1%FS (with locator)
straight	2%FS (with locator)
ambient temperature	-10℃～+70℃
Pneumatic control valve Accessories	E/P, P/P valve positioners, filter regulators, valve converters, solenoid valves, limit switches Non-standard accessories require special customized remarks.

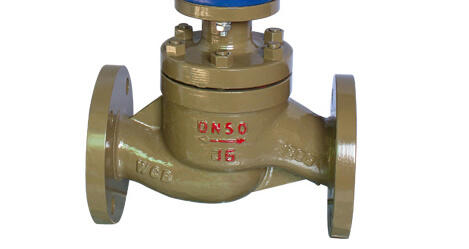

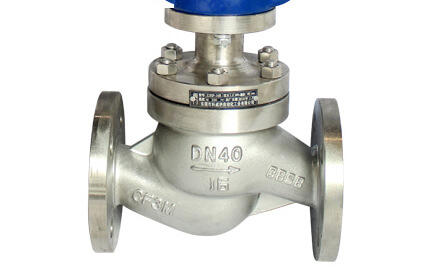

Valve body technical parameters

1. The main performance indicators are shown in the following table
2. The test is carried out according to the provisions of GB/T4213-92

serial number.	Technical performance	without locator	with locator
1	basic error	≤±5%	≤±1%
2	poor return	≤3%	≤1%
3	blind spot	≤3%	≤0.4%
4	leakage	ZJHP type: ≤1X10-4 rated flow ZJHM type: ≤1X10-3 rated flow
5	Rated flow coefficient	≤±10%
6	inherent flow properties	Slope±30%
