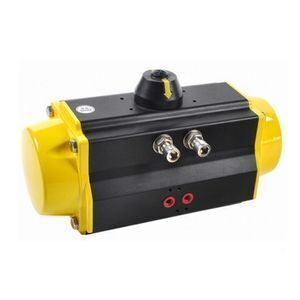

90 Degree Rotary Double Acting Pneumatic Valve Actuator

Product details
Ambient Temp:-20 to 80℃;Type:ACTUATOR,Pneumatic Actuator;
Actuator Material:Aluminum Alloy;Single package size:20X15X15 cm;
Single gross weight:3.5 KG;Local Service Location:none;
Material:Aluminum Alloy;Warranty:1 YEAR;
Brand Name:COVNA;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;
Place of Origin:Guangdong China;After Warranty Service:Video technical support,Spare parts;
Selling Units:Single item;Bottom Mounting Connection:ISO 5211/DIN 3337;
Showroom Location:none;Control Mode:Double Acting or Single Acting(Spring Return );
Operating Media:Dry air, Non-corrosive Gases;Lifespan:1,000,000 Times Rotation;
Rotation:90°;Packaging Detail:90 Degree Rotary Double Acting Pneumatic Valve Actuator Packed with Foam in Carton;
Air Supply Pressure:2.5 to 8 Bar;Protection Category:A/B;
Product Description

90 Degree Rotary Double Acting Pneumatic Valve Actuator

Advantages:

  • MOQ: 1 set
  • 19 years of valve manufacturing experience
  • Strong inventory, part of commission returned for bulk delay
  • Product quality will be guaranteed for 1 year (12 Months)
  • OEM service to help customers to promote their brands
  • Offer various international standard, ANSI, JIS, DIN, etc
  • Custom complaints handed by one stop professional service.
  • Inquiry will be replied within 8 hours
Acting ModeDouble Acting, Spring Return (Single Acting)
Output Torque14 to 1170Nm
Air Supply Pressure2.5 to 8 bar
Lifespan1,000,000 (1 Million) Times
Angle of Rotation90° ±4°
Shell MaterialAluminum Alloy Extruded
Applicable MediaFiltered, Dry Compressed Air, Non-Corrosive Medium
Ambient Temp.Standard Type: -20 to +80°C (-4 to 176°F)
Optional AccessoriesNamur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
ApplicationFood & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper
LubricationThere is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions.

All Accessories Can Be Order !

Click here to ask more info about the quote and the catalog.





Pneumatic Actuator

SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close

DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
