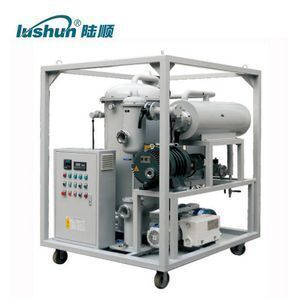

LUSHUN Brand Double Stage Transformer Oil Reprocessing Purification Equipment

Product details
Packaging Detail:Fumigated Wooden Box or Nude Packing Container Load, strong and fix for export packing standard;Port:Any Port of China (Mainland.);
Supply Ability:500 Set/Sets per Month;Flow:9000L/H;
Color:Green and gray(customizable);Power(W):100KW;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Certification:CE ,ISO;
Place of Origin:Chongqing China;Voltage:380v/50hz;
Weight:1300KGS;Warranty:1 Year;
Model:LS-ZJA-150;Condition:New;
Dimension(L*W*H):218X172X215cm;Brand Name:lushun;
After-sales Service Provided:Field maintenance and repair service;

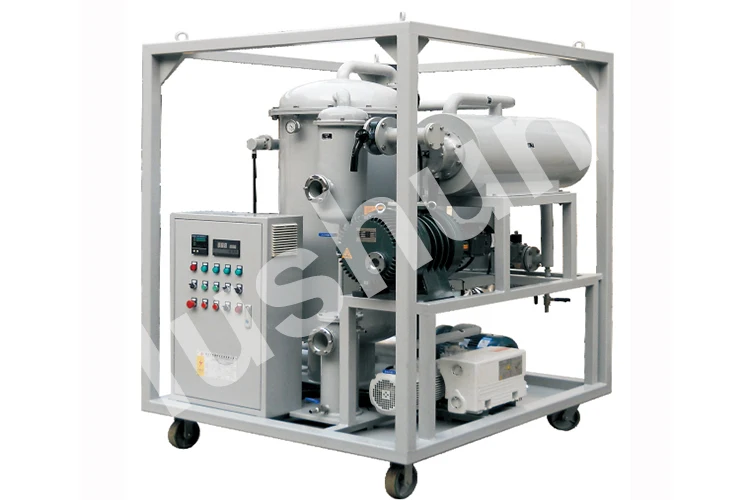

 LUSHUN Brand 6000 Liters /H Double Stage Transformer

Oil Reprocessing Purification Equipment

LUSHUN ZJA Series Two Stage Vacuum Transformer Oil Purifier is widely used for industries of power plant, power station, electricity company, transformer factory, metallurgy, petrochemical, mechanical engineering, transportation, railway and transformers manufacturing etc. Especially, it applies to maintenance of transformers above 110KV and deep purification of high grade new transformer oil, imported transformer oil, mutual inductor oil and ultra high voltage transformer oil. It can be also used for oil vacuum filling and vacuum drying as well as transformer vacuum evacuation operation. Moreover, the machine can be working online without stop of transformers.

Item

Index

Unit

LS-ZJA-30

LS-ZJA-50

LS-ZJA-100

LS-ZJA-150

LS-ZJA-200















Technical Parameter



















Flow Rate

L/H

1800

3000

6000

9000

12000

Working Vacuum Degree

MPa

-0.08~-0.0999

Working Pressure

MPa

≤0.5

Constant Temperature Control Range

20-80

Power Supply

V

380V/50Hz(Can be customized)

Working Noise

dB(A)

≤70

Total Power

KW

30+5

40+5

60+6

90+10

120+10

Inlet/Outlet Diameter

mm

25

32

40

50

50

Net Weight

Kg

650

800

1000

1300

1800

Overall Dimension (L×W×H)

cm

120×132×165

130×140×180

154×185×200

218×172×215

218×172×215





Oil Quality After Treatment









Breakdown Voltage

KV

≥70 (GB/T507), Sphere Gap Test

Water Content

ppm

≤3(GB/T7600)

Gas Content

%

≤0.1(GB/T423)

Filtration Precision

μm

≤1

Ethyne

%

0

1.Advanced double-stage large capacity dehydration and degassing system which adopts large area three-dimensional flash evaporation technique .

2.Widely used for transformers on-site installation or maintenance to fill oil into transformers and circuit breakers under vacuum condition or conduct transformers evacuation operation.

3.Precise filtration system, high-quality filtering elements and multi-stage filtration with gradual precision.

4.Equipped with automatic temperature control system, liquid-level control system, defoaming control system, pressure protection system and high quality main components.

5.The machine supports on-line operation without supervision with indicators to show operation status.

6.The machine adopts humanization design with low noise, easy operation, long free-maintenance time and energy saving to lower the operation cost.

7.With electrical control inter-lock design. Vacuum system, oil pump system and heating system are interlocked in control.

8.Equipped with indication for changing filters and automatic stop device for overloaded filters.

9.Equipped with emergency stop for electric leakage and power overload to protect the motor.

10.With phase-sequence, phase lose protection function and safety control for sudden shut-down.

11.Equipped with vacuuming interface for transformer evacuation operation.

12.The outlet and inlet can be interchanged.

1.PLC intelligent control with touch screen operation and operation status dynamic display.

2.Online moisture tester, online particle counter and online flow meter with adding-up function.

3.Frequency converter for free adjustment of flow rate

4.The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of canvas etc.
