Sanitary stainless steel beverage mixing tank

Product details
Brand Name:GORUN beverage mixing tank;beverage mixing tank:stainless steel beverage mixing tank;
Material:Stainless Steel 304/316;Packaging Detail:beverage mixing tank HS:8479820090,8438800000 Pakage: plywood case for tanks smaller than 1500L support and bubble film for big tanks;
Warranty:1 Year;After-sales Service Provided:Engineers available to service machinery overseas;
Model Number:100L-5000L;Voltage:220V/380V/440V;
Usage:mixing,emulsifying;Processing Types:Juice;
Application:paint,fertilizer,chemical etc.;Processing:Emulsifier;
Port:Shanghai, Qingdao, Tianjin, Lianyungang, Ningbo for beverage mixing tank;Advantages:factory design and direct sell;
Delivery Detail:Shipped in 15-30 days after payment;Condition:New;
Mixing type:scraper type/anchor/frame/paddle mixer;Customize:Customizable;
Warranty:1 year;Certification:ISO,Tuv,CE,SGS;
HS code:8479820090,8438800000;Power(W):0.375kw-22kw;
Supply Ability:100 Set/Sets per Month beverage mixing tank;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal, cash etc. for beverage mixing tank;
Weight:Depended Dimension;Place of Origin:Shanghai China (Mainland);
Dimension(L*W*H):Depends;Heating type:steam heating/electric heating;
Production

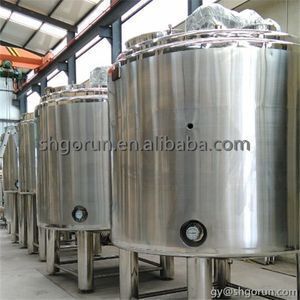

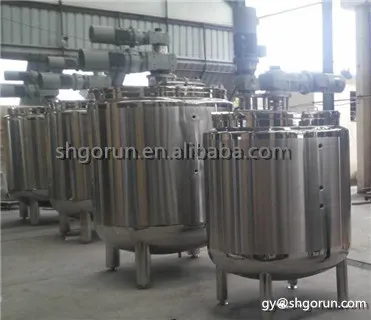

beverage mixing tank

Sample:
shampoo/daily chemical/ BEVERAGE mixing tank




Specification
1.Matreial: ss304
2.Capacity:3000L(Ø1500*1500)
3.Structure:three-layer , with agitator,    head top with manhole cover, with spray ball,inlet&outlet
4.Mixing type:scraper type
5.Surface:interior Ra0.3μm,     exterior matte polish
Application
salad dressing,flavors,beverage,juice,liquid fertilizer, biological liquor, paint,etc.
Cutomize
 service
Can be totally customized,see below

Detailes Pictures:

Safet lock of mixing tank

paddle&scraper type mixer

Optional: paddle type/anchor type/scraper type etc.

Cleaning ball to clean up tank

Slection guide:

Custom Your Products
Mterial
Capacity
Mixing
Layer
Working
Pressure
Usage



ss304/ss316



50L-20000L
Agitator:
Paddle
Anchor
Frame
Scraper

Disperser
Homogenizer

Single layer

Double layer:insulation

Three-layer: heating/cooling jacket or coil+ insultaion
(Heating:steam/hot water/electric
Cooling:water/cooling unit
)

Vacuum

ATM

0-1Mpa

Pharmaceutical
Food
Beverage
Cosmetic
Chemical
etc.

Customize
Customize
Customize
Customize
Case Introduction
shampoo/daily chemical/ juice mixing tank:
with two motors,one for paddle type mixer,one for scraper type mixer;
two mixers with opposite direction;
ABB MOTORS,SIMENS REDUCER
Related Products

Kinds of stainless steel tank

Filter housing&cartridge

CIP system

Other products:
Water purification system:electronic water,food&beverage water,pharmaceutical use water
Tube and shell heat exchanger:using heat exchnage to cool down or heat up
Pumps: centrifugal pump/homogeneous pump/rotor pump/double screw pump
Accessories:pipes,valves,instruments etc.
Processing&Shipping

Raw Material:

Guaranteed stainless steel 304/316(Test acceptable)

Normal Thickness:1.5mm-16mm


Surface Treatment:

Interior Ra0.3µm,Exterior matte polish or mirror polish

Optional:Electrolytic polishing or Acid passivation


EVERY WELD JOINT WILL BE TREATED CAREFULLY.

STEP 1:

Rolling and welding

STEP 2:

Bottom welding

STEP 3:

Jacket making(jacket tank)

STEP 4:

Jacket welding

STEP 5:

Polishing

STEP 6:

Details treatment

Package&Delivery:

Filter cartridge(Few) and small accessories: Carton box

Tanks(50L-1500L) and big accessories: plywood case

Tank(1500L-50000L) and big system:Support and bubble film

YOUR PRODUCTS WILL BE PACKAGED CAREFULLY.

Company Porfile

Shanghai Gorun Machinery Technology Co.,Ltd

Derived from Shanghai Geshi filter company which is founded on 1993.                                                                                Company has more than 3000 square meters dust-free workshop for filter cartridge, and more than 6000square meters machineing workshop.                                                                   Products are widely used in pharmaceutical,food&beverage,cosmetic,chemical indutries.                                                             As for now,more than 1000 enterprises has chose us as  long term partner. Believe there will be more in the future.

Company capability:integrated  research,design,production,installation etc.                                                                                             Both single equipment and production line can be provide.

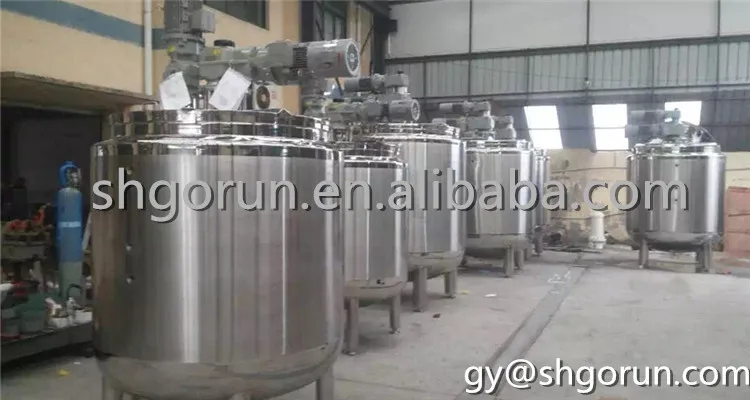

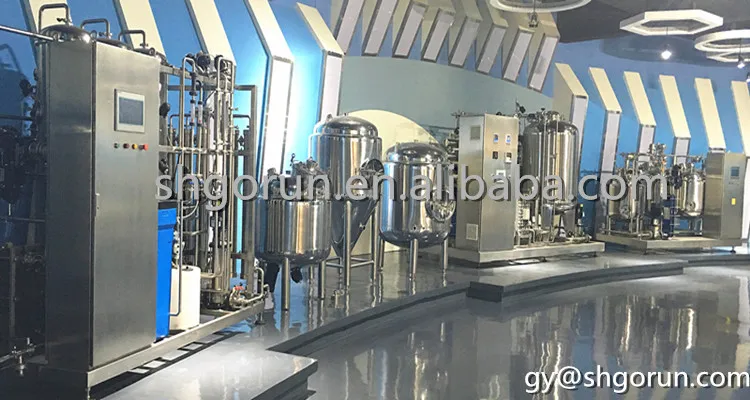

Factory&Workshop Show:



Our Team:

Advantages


Our Advantage, Your Benefit:


Price
We are factory,direct manufacturer,no middle cost

Porducts
1.High quality: every prodcuts will be tested before delivery
2.Products diversification: filter cartridge&housing,stainless steel tank,water purification system,CIP system,heat exchanger,pumps,accessores etc.
3.Wide application: pharmaceutical,food&beverage,cosmetic,chemical etc.
Custom
made
1.Related products can be customized according to customer's requirement
2.Engineering: we can provide whole production line based on our products including pipes, valves and control system
Production
Company has more than 3000 square meters filter cartridge workshop and more than 6000 square meters machining workshop
Service
Your any consultation will be replied within 0-8hours.
Location
We are located in Shanghai of China. It convenient to visit factory
Win customers' approval and trust by quality products and professional&sincerity service.

Our Mission: Win-Win Solution,Grow Up Together.

Our Service

Pre-sale

Any consultation will be replied in hour;

Quotation will be provided in time;

Professional advice and design can be provided.

After-sale

Engineer is available to install and debug;

One year warranty after customer receive products;

Lifetime technical support;
