BC6063 BC6066 BC6085 Metal Shaper Price China Horizontal Shaper Machine
-
Supplier: Shandong Luzhong Machine Tool Co., Ltd. -
Region: Shandong, China -
Contact: Ms Wenjing Pan -
Price: $6150.00 /set -
Min. Order: 1 set
| Applicable Industries: | Manufacturing Plant; | Name: | BC6063 BC6066 BC6085 Horizontal Shaper Machine; |
| Supply Ability: | 100 Set/Sets per Month BC6063 BC6066 BC6085 Metal Shaper Machine Price Horizontal Shape; | Certification: | ISO CE; |
| Power(W): | 4KW; | Condition: | New; |
| Weight: | 1750KG; | After-sales Service Provided: | Online support,Video technical support; |
| Max. shaping length: | 630/660/850mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance; |
| Port: | Any port in China; | Place of Origin: | Shaanxi China; |
| Dimension(L*W*H): | 2000X1300X1550mm; | Warranty: | One Year; |
| Packaging Detail: | Plywood case BC6063 BC6066 BC6085 Metal Shaper Machine Price Horizontal Shaper Machine; | Voltage: | Customer Requireme; |
| Key Selling Points: | Competitive Price; | Brand Name: | Luzhong Machine; |

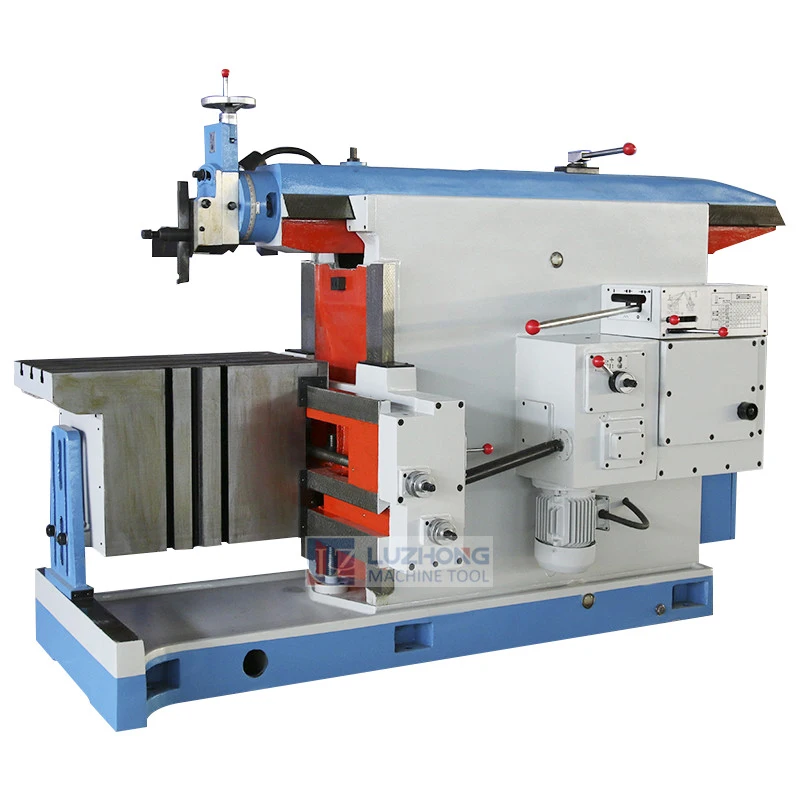

BC6063 BC6066 BC6085 Metal Shaper Price China Horizontal Shaper Machine
Product main technical specifications:
Specifications | Units | BC6063/BC6066 | BC6085 | |
Maximum shaping length | mm | 630/660 | 850 | |
Max.range of the horizontal movement of the table | mm | 385 | 400 | |
Max.distance between he ram bottom and table | mm | 630 | 710 | |
Max.length of the vertical movement of table | mm | 360 | 360 | |
Dimension of table top(L*W) | mm | 630X400/660X400 | 800X450 | |
Travel of tool head | mm | 120 | 160 | |
Number of ram strokes per minute | Times min | 14,20,28,40,56,80 | 17,24,35,50,70,100 | |
Swivel of tool head | ° | +/-60 | +/-60 | |
Maximum size of tool shank(W*T) | mm | 20X30 | - | |
Range of table feed | Horizontal 12 steps | mm | 0.4-5 | 0.25-3 |
vertical 12 steps | mm | 0.08-1.00 | 0.12-1.5 | |
Width of the T-slot for center positioning | mm | 18 | 22 | |
Main motor power | KW | 3 | 5.5 | |
Overall dimension(L*W*H) | mm | 2000X1300X1550 /2357X1225X1480 | 2950X1325X1693 | |
N.w./G.W | kg | 1750/1870 1800/1920 | 2040/3090 | |
 |  |  |  |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
