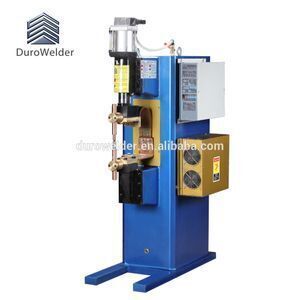

DN Series pneumatic AC spot welding machine and projection welding machine

Supplier: Guangzhou DuroWelder Limited
Region: Guangdong, China
Contact: Ms Kalen Lee
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Wooden case;	Voltage:	380V AC;
Supply Ability:	30 Set/Sets per Week;	Certification:	CE;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Max. Welding Thickness:	0.4-4mm;	Rated Capacity:	25-200KVA;
Weight:	300-800Kg;	Model Number:	DN25-200;
Rated Duty Cycle:	50%;	Usage:	spot welding, metal plate welding;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	guangzhou;
Delivery Detail:	Shipped in 3 days after payment;	Place of Origin:	Guangdong China;
Warranty:	1 Year;	Brand Name:	DuroWelder;

DN Series pneumatic AC spot welding machine and projection welding machine

Model: DN series

Features:

1.Manufactured in accordance with international ISO Standard.

2.European CE Certified.

3.European Type Microprocessor Welding Control has transparent safety cover to protect a keypad and has a lock to allow only authorized personnel to access the program.

4.Welding Control maintains main parameters such as welding current; weld time, off time, etc. with digital accuracy

5.Any of 23 weld schedules can be easily selected for execution.

6.Rigid Frame of the Machine allows the use as Projection or Spot welder.

7.Improved water-cooling system guarantees flawless performance in heavy-duty applications.

8.Machine is painted with Lead-Free paint.

9.All materials used in design are environmentally friendly.

Welding sample:

Pamameters:

Item	Rated Capacity	Rated Primary Voltage	Rated Freguency	Max. Secondary Curent	Rated Duty Cycle	Arm Length	Maximum Force	Electorode Stroke	Cooling Water Flow	Weight	Electrode Size
Model	Rated Capacity	Rated Primary Voltage	Rated Freguency	Max. Secondary Curent	Rated Duty Cycle	Arm Length	Maximum Force	Electorode Stroke	Cooling Water Flow	Weight	Electrode Head	Electrode Holding Rod	Electrode Arm
Model	KVA	V	Hz	A	%	mm	N	mm	L/min	Kg	(mm)	(mm)	(mm)
DN- 25	25	380	50/60	17500	50	380	2500	60	6	300	16	20	45*200
DN-35	35	380	50/60	18500	50	380	4000	60	6	380	16	25	50*200
DN-50	50	380	50/60	20000	50	380	6280	60	6	430	16	25	50*200
DN-75	75	380	50/60	25000	50	380	6280	60	8	500	16	25	60*200
DN-100	100	380	50/60	30500	50	380	6280	60	8	600	16	25	60*200
DN-150	150	380	50/60	38500	50	380	6280	60	12	750	20	30	80*250
DN-200	200	380	50/60	43000	50	380	6280	60	12	800	20	30	80*250
DN-250	250	380	50/60	48000	50	380	6280	60	12	900	20	30	80*250
