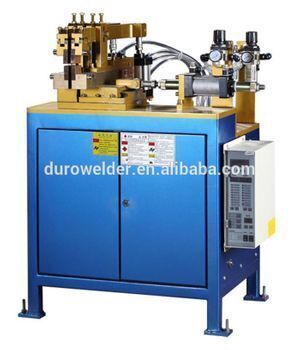

Automatic Steel Plate Butt Welding Machine

Supplier: Guangzhou DuroWelder Limited
Region: Guangdong, China
Contact: Ms Kalen Lee
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Iron Frame and Wooden Case;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Construction works ;
After-sales Service Provided:	Engineers available to service machinery overseas;	Input Voltage:	380;
Payment Terms:	T/T,Western Union,MoneyGram;	Port:	Guangzhou Port;
Current:	19000;	Supply Ability:	100 Set/Sets per Month;
Power:	50;	Condition:	New;
Warranty:	1 Year;	Resistance butt welding machine:	butt welder;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Usage:	Butt weld the wire Frame;
Place of Origin:	Guangdong China (Mainland);	Brand Name:	DuroWelder;

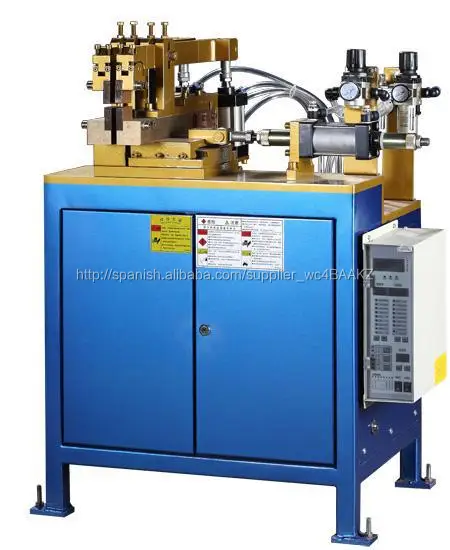

UN1 Series Resistance Butt Welding Machine

The Main Principle of Resistance Butt Welder and Main Advantages:

1.AC Resistance Butt Welding is the welding method that the end surfaces of two parts are pressed tightly,and the resistance heat is used to heat up the surfaces to the plasticized status,then the upsetting force quickly press them together more tight again or without applying the upsetting force pressure,just only hold on the welding pressure to complete the welding.

2.Compared to Flash Butt Welding,Resistance Welding is much easily to for worker use and operate,the cost is much lower,welding productivity is also higher.

3.The welded joint is smooth.and the welding burrs are small.

4. The structure is designed compactly which is very easily to be adjusted to weld different parts. The special butt welding control circuits ensure the welding quality.

5. Mainly used for butt welding various metal material with welding section area less than 250mm,such as iron,wires,pipes,etc.

Main Technical Parameter:

Parameter	Rated Capacity	Rated Input Voltage	Rated Frequency	Max Short Current	Rated Duty Cycle	Max Clamping Force	Max Upsetting Force	Cooling Water Required	Dimensions LWH	Average Weight
Model No.	Rated Capacity	Rated Input Voltage	Rated Frequency	Max Short Current	Rated Duty Cycle	Max Clamping Force	Max Upsetting Force	Cooling Water Required	Dimensions LWH	Average Weight
UN1-25	25KVA	380V	50/60Hz	11000A	50%	3900N	1500N	150L/H	9080120CM	300Kg
UN1-35	35KVA	380V	50/60Hz	15000A	50%	3900N	1500N	150L/H	9080120CM	350Kg
UN1-50	50KVA	380V	50/60Hz	19000A	50%	3900N	1500N	150L/H	9080120CM	400Kg
UN1-75	75KVA	380V	50/60Hz	23500A	50%	6100N	2500N	200L/H	9080120CM	450Kg
UN1-100	100KVA	380V	50/60Hz	26000A	50%	6100N	2500N	200L/H	9080120CM	500Kg
UN1-150	150KVA	380V	50/60Hz	31000A	50%	8000N	3900N	300L/H	13580160CM	550Kg
UN1-200	200KVA	380V	50/60Hz	35000A	50%	8000N	3900N	300L/H	13580160CM	650Kg
