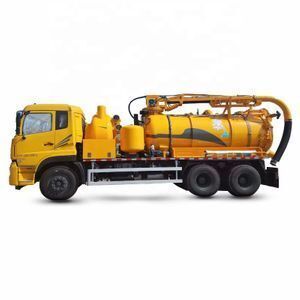

Product name: | High Pressure Industrial Dust Vacuum Truck Vacuum Suction Tank Truck; | Rotate speed: | Max 1000rpm; |
Port: | shanghai; | Suction hose: | 5", 10m; |
Pump: | Special Vacuum Pump; | Vacuum pump: | Liquid ring vacuum pump; |
Dimension (L x W x H): | 9250X2495X3830mm; | Emission Standard: | EURO 5; |
Transmission Type: | Manual; | Telescopic suction boom: | Remote controlled; |
Place of Origin: | Jiangsu China; | Supply Ability: | 5 Unit/Units per Month; |
Packaging Detail: | nude; | Air flow rate: | 2800m3/h; |
Tipping cylinder: | 40° liquid removal; | Payment Terms: | L/C,T/T; |
Gross Vehicle Weight: | 25000; | Tank Volume: | 10,000L; |
Condition: | New; | Horsepower: | 231kw; |
Fuel Type: | Diesel; | Capacity: | Sludge tank 10,000L; |
Control panel: | Manual control and radio remote control; | Brand Name: | Xiang Long; |
What is the main Application of the Combi Truck and Characteristics?
The suction vehicle is suitable for suction from the various o the sewer man-hole,drain wells and sediment wells and transporting,Meanwhile,it is not only used for suction,transportation sewage,oil stain and waste water at large-scale factories and mines,it also can be used as silt remover for cleaning rills and rivers.
Main Technical Parameter Show Blow:
Item | Parameters | |
Vacuum System | Vacuum pump | Liquid ring vacuum pump, provides high air flow along with high vacuum levels for removing materials below liquid surfaces. |
Air flow rate | 2800m3/h | |
Rotate speed | Max 1000rpm | |
Pump cooling | Cooling Water tank in stainless steel 1,000L, mounted just behind the drivers cab | |
Telescopic suction boom | Remote controlled, steel material. Swivel in both the vertical and horizontal plane. 270°horizontal rotation, 6m working radius, vertical lift up to 5.5m above ground and 1350mm extension | |
Suction hose | 5", 10m, can be lengthened, with non-return valves |
Shape | Cylindrical shaped tank with U-sectional external stiffening rings. | |
Sludge tank
| Material | Mild steel |
Capacity | Sludge tank 10,000L | |
Shell thickness | 5mm | |
Dish thickness | 5mm | |
Tank inner filter | Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose | |
Working pressure | -0.95bar | |
Tipping cylinder | Front single acting tipping cylinder with safety support, provided for 40° liquid removal. | |
Liquid level indicator | Glass indicator at the rear of tank. | |
Primary shut off | SS float ball prevents overfilling sludge tank. | |
Secondary shut off | Once the tank’s full, ultrasonic level indicator is activated and vacuum pump is closed automatically, no need to shut it down from the control box | |
Full opening rear lid | Hydraulically opening and locking |
We factory promises the following services:
1.Before sale----
Technical exchanges with customers,demonstrations,explore individual solutions.
2.Insale---
Fully implement the best customized solutions,enhance process control and optimization.
3.After-sale---
Free training,tracking guide,24 hours feedback service program.
Long and Reliable Cooperation Starts from This Moment You Click
What's our factory Professional advantage?
1. Use Split shaft PTO(Transfer case),which is common in Euro and America.Comparing to sandwish PTO used by other Chinese supplier,our method doesn't need to break down transmission box and don't change the transmission accuracy.
2.Jetting water pressure id pneumatically controlled.Avoid the sudden high pressure which may happen if you choose three-way value supplied by other Chinese factory.Our pneumatic safety valve is from Italy together with the water pump.
3.Use Liquid ring vacuum pump.Comparing to air cooling vane pump,air flow up to 2800m3/h,-0.95bar vacuum level and long continuous work time due to water cooling type.
4.Reverse discharge capability discharges water and leaves sludge,reduces round trip times between drainage well and dumping site.
5.Jetting nozzle works with linear high pressure water flow,makes the most effective use the water pressure.
6.Multiple safety protections,includ ultrasonic liquid level indicator,float ball,pressure safety value at the top of tank and vacuum air lines.
Where is need to Use our vehicle?
To unblock and clean sewer. To vacuum suck liquid waste and clean drainage well. Dry material vacuum suction truck suck and transport powder, coal in power plant, dust or cement.
Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...
Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…
Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.
As municipal solution specialist,we factory always focus on Environment protection all around the world with high-end european quality and have already passed the safety approval as ISO9001,GS,SGS .Huaian XiangLong special purpose vehicle Co.,Ltd is a listing in Jiangsu Equity Exchange-stock Company,it's powerful symbols in China.
Our selling point is :Customization,High-end quality,Professional service,Innovation keep moving.
