Place of Origin: | Jiangsu China; | Function: | Separating filtering system; |
Fuel Type: | Diesel; | Drive type: | 4X2; |
Air Flow: | 540 m3/h; | 车身尺寸: | 6000*1990*2560; |
Payment Terms: | L/C,T/T; | Wheelbase: | 3300mm; |
Packaging Detail: | according to your requirements or truck waxing,Naked / container; | Condition: | New; |
Feature: | Emergency safty protection; | Tank volume: | 3,800L; |
Brand Name: | Xiang Long; | Gross Vehicle Weight: | 7360; |
Power: | 118HP; | Horsepower: | 290HP; |
Supply Ability: | 10 Unit/Units per Month; | Port: | Shanghai; |
Engine: | YuChai; | Transmission Type: | Manual; |
Tank Volume: | 4500L; | Emission Standard: | EURO 5,Euro V; |

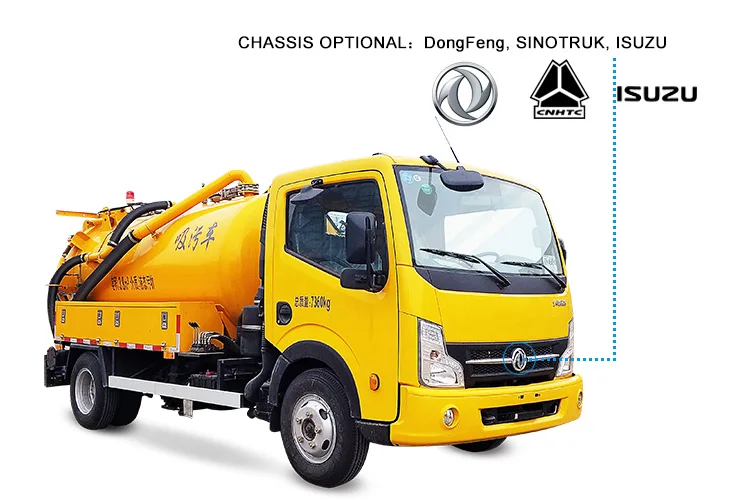

Chassis brand: | DongFeng (Or SINOTRUK, ISUZU); |
What is the main Application of the Combi Truck and Characteristics?
Application-----
1. The vehicle is being widely used in collection and transportation of underground sewerage and industrial waste.
2. By separation and filtering ,the wasted water can be pump pack into underground sewerage pipe,the vehicle can also pump the bulk goods into bucket with certain height.
3. Compact struction is better for being operated on narrow working environment in cities,residential and factories as well rural areas.
4. Easier operation,one operator can fulfill all requirement for driving and operation.
5.Imported well know brand vacuum pump can realize suction distance 50m and depth over 8m.
Main Technical Parameter Show Blow:
Sludge tank
Shape | Cylindrical shaped tank |
Material | Mild steel. |
Capacity . | Sludge tank 4,500L |
Shell thickness | 5mm. |
Dish thickness | 5mm. |
Tank inner filter | Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose |
Working pressure | -0.95bar. |
Tipping cylinder | Italy brand, front single acting tipping cylinder with safety support, provided for 40° liquid removal. |
Liquid level indicator | Glass indicator at the rear of tank. |
Primary shut off | SS float ball prevents overfilling sludge tank. |
Secondary shut off
| Once the tank’s full, ultrasonic level indicator is activated and vacuum pump is closed automatically, no need to shut it down from the control box |
Full opening rear lid | Hydraulically opening and locking |
Outlet Valve | One 4" ball valve, manual operation.
|
Vacuum System
Vacuum pump | Air cooling vane pump. |
Brand | JUROP |
Max vacuum level | -0.9bar |
Air flow rate | 540m3/h. |
Protection | 1. filter 2. Vacuum pressure relief valve |
Suction hose | 4", 10m, can be lengthened, with non-return valves |
Control panel
Controls | Manual control and radio remote control are both included |
Click here for More Information!!!
We factory promises the following services:
1.Before sale----
Technical exchanges with customers,demonstrations,explore individual solutions.
2.Insale---
Fully implement the best customized solutions,enhance process control and optimization.
3.After-sale---
Free training,tracking guide,24 hours feedback service program.
Long and Reliable Cooperation Starts from This Moment You Click
WANNA KNOW MORE?
For More 2019 New Design, Please Feel Free To Contact ^_^
Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...
Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…
Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.
Where is need to Use our vehicle?
To unblock and clean sewer. To vacuum suck liquid waste and clean drainage well. Dry material vacuum suction truck suck and transport powder, coal in power plant, dust or cement.
