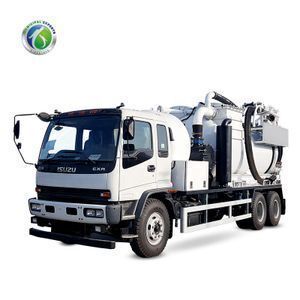

15,000L Dry Material Vacuum Suction Truck for Sucking Dust or Powder

Product details
Power:221kw;Product name:15,000L dry material vacuum suction truck for sucking dust or powder;
Tank Tipping angle:50degree;Suction hose:10m;
Air flow:5700CBM/h;After-sales Service Provided:Online support;
Brand Name:Xiang Long;车身尺寸:10850X2490X3140mm;
Condition:New;Roots blower Brand:HIBON France;
Transmission Type:manual;Gross Vehicle Weight:25000;
Payment Terms:L/C,D/P,D/A,T/T;Emission Standard:EURO 5;
Bag filter unit:heat-resistant and anti-corrosion;Suction boom:Remote controlled;
Packaging Detail:Polish with wax before painting;Fuel Type:Diesel;
Rear door:Hydraulically open and lock;Horsepower:300;
Place of Origin:Jiangsu China;Port:Shanghai;
Supply Ability:5 Unit/Units per Month;Tank Volume:15,000L,15000L;

15,000L Dry Material Vacuum Suction Truck for Sucking Dust or Powder

Product Description





Item

Description

  1

Make

DongFeng, SINOTRUK, ISUZU

2

PTO



Famous brand

3

Powder tank

Volume

10,000L

Material

16Mn mild steel

Tank shell thickness

6mm

Manhole

450mm

Designed pressure

-0.9bar

Inlet valve

6inch

Tipping angle

≥50degree

Rear door

Hydraulically open and lock



4



3 grades shut off

Float ball

SS304

solid material amount measurer



ultrasonic liquid level indicator

Works as double float ball, cut off vacuum pump once tank is full



5

Suction filtration system

Bag filter unit

32units of filters, with heat-resistant and anti-corrosion

Manhole

450mm



Filter mesh





6



Vacuum system

Brand

Hibbon

Type

Roots Blower

Power source

Driven by PTO

Vacuum level

-0.5bar

Air flow

5700cu.m3/h

Material dimension

15mm

Suction horizontal distance

≥50m

Silencer



7

Discharge system

Compressor brand

Outstanding brand

Working pressure

2bar

Discharge flow

500m3/h

Discharge ability

30-70t/h

Discharge height

15-30m

Outlet valve

4inch, SS304

Material left

≤2‰

Butterfly valves

SS304



8

Suction boom

Operation

Remote controlled retractable boom, 300degree horizontal rotation, max 6m working radius



Material

SS304

Knife valve

SS304, pneumatic control

Diameter

6inch

Suction hose

10m, can be lengthened to be above 50m

9

Hydraulic control

Pressurized oil pipe

SS304 pipe

10

Control box

Manual control and radio remote control

Pump and engine speed meters, pressure meters, switches, emergency stop,  boom control, English labels...



11

Painting

All steel parts are sand blasted before painting.

Passiviation

One coat of anti rust primer inside and outside of the tank

Two coat of finish painting.

Heat dry process

Color and logo on truck body advised by customer.



Related Products

Our Services

We factory promises the following services:



1.Before sale----

  Technical exchanges with customers,demonstrations,explore individual solutions.



2.Insale---

   Fully implement the best customized solutions,enhance process control and optimization.



3.After-sale---

   Free training,tracking guide,24 hours feedback service program.





 Long and Reliable Cooperation Starts from This Moment You Click



Company Information

Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...

Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…

Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.







Why choose us

What's our factory Professional advantage?



1.We established joint venture with one EURO company in 2003. By introducing high-end municipal trucks design and manufacture philosophy, our trucks meet EURO level with more advancement and stability.
2. Strict quality control process and humanized designed details.  Raw material purchased under normative QC. Every process required by manufacture standard. Every detail focuses on humanization.
3.Original chassis from China famous manufacturer.
2. Use split shaft PTO (Transfer case), which is common in Euro and America. Comparing to sandwich PTO used by other Chinese suppliers, our method doesn’t need to break down transmission box and don’t change the transmission accuracy.
3.Use Liquid ring vacuum pump. Comparing to air cooling vane pump, air flow up to 2800m3/h, -0.95bar vacuum level and long continuous work time due to water cooling type.
4.Reverse discharge capability discharges water and leaves sludge,  reduces round trip times between drainage well and dumping site.
