Potable Spectrometer OHSP350P LED Plant Light Spectrum Analyzer

Product details
Place of Origin:Zhejiang China;Brand Name:HOPOOCOLOR;
Illuminance Range:5lx~200klx;Wavelength accuracy:+ 0.5nm;
Model Number:OHSP350P;Packaging Detail:PACKING : Selling Units: Single item Carton size:29*17*20cm Bag size:23*18*8cm Package Type:In standard export carton packing;
Port:Any Sea Or Port In China;Spectral bandwidth (FWHM):2nm;
stray light:≤0.3%;Supply Ability:2000 Piece/Pieces per Week;
Chromaticity coordinate accuracy:±0.0025;Spectral resolution:0.2nm X, Y repetitive ±0.0005;
Type:spectrometer;Product name:Portable Spectrum Analyzer;
Illumination accuracy:±4% Reading +1 Digital;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
CCT range:1,000K~ 100,000K;Using T / H range:(-10 ~ 40), RH <70% (no condensation);
Product Description

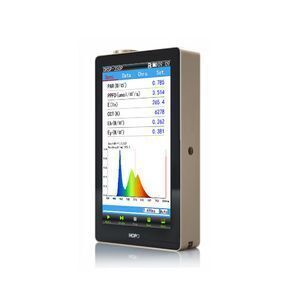

OHSP350P PLANT LIGHTING ANALYZER

Wavelength range: 350-800nm



This tester is for plant growth lamp parameters PAR, PPFD tesing,it is dedicated to plant lighting measurement,integrated with intelligent professional portability,the measurement is based on the method of long focal length spectral.Measuring parameters like light intensity, radiation intensity, chromaticity coordinates, color temperature, color rendering index, photosynthetic photon flux density, photosynthetic radiation (shoot), far red irradiance etc. It an be widely used in plant lamp manufacturers, plant soilless cultivation, greenhouse and other plant growth of optical radiation field monitoring etc.



1,characteristic:

  • Long focal length optical system, 2 nm optical resolution
  • High performance linear CCD sensor 3648 points;
  • Automatic zero and zero compensation technology, boot no manual zero;
  • Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
  • Quick switch machine, a key test, the use of more convenient
  • 5 inch high-definition IPS screen, capacitive touch screen, display more content;
  • Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
  • Illumination and radiation measurement
  • CCD with long focal length and wide spectrum, intelligent and portable
  • Automatic zero calibration
  • Low power consumption large capacity battery
  • Wide range of wavelengthscan test various types of light sources
  • SD cardcan save a variety of formats Excel data analysis
  • Be Suitable for different site test
  • A millisecond key switchingmakes it more convenient forusing

CHARACTERISTICS AND SPECIFICATIONS

  • Correlated color temperature (CCT)               Illumination  candlelight  Spectral Irradiance
  • Chromaticity Coordinates                               The Relative Spectral power distribution
  • Color Rendering Index                                   Rf,Rg as per IES TM-30
  • SDCM  Color Tolerance                                   Dominant Wavelength Peak Wavelength
  • PAR       PPFD     YPFD     Eb    Ey    Er    Erb_Ratio

application:

    Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc





Company Information



HOPOOCOLOR located in one of the most developed economic circles in China,which is a professional manufacturer with more than 10 years experience in this field .We provide led test instrument supply, integrating sphere supply and other light test solutions. The products are widely used in industry, agriculture, home, lighting, laboratory and etc.

with the customers PHILIPS, OSRAM, GE and other companies and domestic lighting enterprises in cooperation , and exported to the America, Brazil, South Korea and other regions. By the certification of CE Certificate and ISO9001 quality management system, we always try to provide the best solutions with higher quality to our customers at a lower price.
