OHSP350 Led Light Spectrometer

Product details
Model Number:OHSP350C;stray light:≤0.3%;
Brand Name:Hopoocolor;Color:Golden;
Packaging Detail:PACKING : Selling Units: Single item Carton size:29*17*20cm Bag size:23*18*8cm;Port:Any sea or port in China;
storage capacity:8G;Item:Led Light Spectrometer;
Color temperature range:1,000K~ 100,000K;photosurface:10mm;
Package Preview:;Weight:430g;
Focal Length:42mm;Size:138.5*81*23mm;
Wavelength Range:380nm-780nm;Material:Metal Alloy;
integration time:50μs~10000ms;Supply Ability:2000 Piece/Pieces per Week;
Accuracy of illumination:4%;Place of Origin:Zhejiang China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Wavelength accuracy:+ 0.5nm;

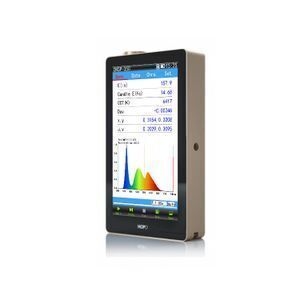

OHSP350C SPECTRAL LUX METER

Application: the illumination and spectrum measurement of light source like LED,OLED,CFL energy saving lamp and HID high low pressure sodium lamp etc.

1,characteristic:

  • Long focal length optical system, 2 nm optical resolution
  • High performance linear CCD sensor 3648 points;
  • Automatic zero and zero compensation technology, boot no manual zero;
  • Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
  • Quick switch machine, a key test, the use of more convenient
  • 5 inch high-definition IPS screen, capacitive touch screen, display more content;
  • Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
  • Illumination and radiation measurement
  •  CCD with long focal length and wide spectrum, intelligent and portable
  •  Automatic zero calibration
  • Low power consumption large capacity battery
  • Wide range of wavelengthscan test various types of light sources
  • SD cardcan save a variety of formats Excel data analysis
  • Be Suitable for different site test
  • A millisecond key switchingmakes it more convenient forusing

2,CHARACTERISTICS AND SPECIFICATIONS

  • Correlated color temperature (CCT)               Illumination  candlelight  Spectral Irradiance
  • Chromaticity Coordinates                               The Relative Spectral power distribution
  • Color Rendering Index
  • SDCM  Color Tolerance                                   Dominant Wavelength Peak Wavelength

3,application:

    Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc





Model

OHSP-350C Economic Version(NO PC SOFTWARE)

Wavelength range

380nm~780nm



Splitting mode

Long-focus cross asymmetric CT optical system

Sensor

High-precision CCD

Spectral resolution

0.2nm  X, Y repetitive ±0.0005

Wavelength accuracy

±0.5nm

Illumination accuracy

(±4% Reading +1 Digital)

Spectral bandwidth (FWHM)

2nm

Accuracy of chromaticity coordinates

±0.0025(Relative to the standard light source whose stability is

better than ±0.0005and NIM traceable calibrated value)

CCT range

1,000K~100,000K

Stray light

≤0.3%

Illuminance  range

5lx~200klx

Integration time

50µs~10000ms

Communication interface

Micro USB Interface

Screen size

5.0"IPS HD LCD touch screen

Communication mode

Host -PC:USB

Storage capacity

factory standard 8G TF card(Micro SD)

Power supply mode

Built in lithium battery / power adapter

Host Size/ Weight

138.5mm*81mm*23 mm /without attachment about 430g(Contain the battery)
