OHSP350S 350-950nm Portable Nir Spectrometer

Product details
Illuminance Range:5lx~200klx;Product name:led spectrometer;
Wavelength accuracy:+ 0.5nm;Illumination accuracy:±4% Reading +1 Digital;
Spectral bandwidth (FWHM):2nm;CCT range:1,000K~ 100,000K;
Size:138.5*81*23mm;Weight:0.43KG;
Stray light:≤0.3%;Frequency range:25-1KHz;
Frequency sampling rate:1-10KHz;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Chromaticity coordinate accuracy:±0.0025;Model Number:OHSP350S;
Packaging Detail:PACKING : Selling Units: Single item Carton size:29*17*20cm Bag size:23*18*8cm Package Type:In standard export carton packing;Place of Origin:Zhejiang China;
Port:Any Sea Or Port In China;Supply Ability:2000 Piece/Pieces per Week;
Brand Name:HOPOOCOLOR;Wavelength Range:350-950nm;
Focal Length:42mm;



Product Description



Product Name
Portable Spectrometer
Material
Metal Alloy
Function
Lighting test
Package
30cm*20cm*18cm
Wavelength range
350nm-950nm

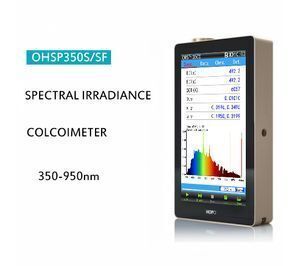

OHSP Advanced Technology Handheld Spectrometer

Design concept: [All in One ], focus on lightweight and intuitive design, you may use it standalone, also support computer connection needed and check the test data immediately. In addition, SD card storage function may help you to use the measurement data freely such like process big data analysis on Spectrum PC software.





Measurable parameters:

1.CCT Tc (K) and blackbody deviating Duv

2. light illumination E (LX), candlelight E (Fc) spectral irradiance Ee (W/m2)

3. chromaticity coordinates (x, y), (U, V), (U ', V')

4. relative spectral power distribution P (lambda)

5. color index Ra, Ri (i=1 ~ 15)

6. color tolerance (SDCM, CIE and Macadam rectangle u 'V' round)

7. Dominant wavelengths, peak wavelengths

8. light and dark visual ratio S/P

9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z

10. blue light hazard weighted irradiance (mW/m2), safe allowed exposure time (S), hazard level

11. PAR ,PPFD, YPFD, radiation of Eb \Ey \Er \Erb \Ep, Kppfv



OHSP wishes to provide a handheld spectrometer with high flexibility for different kind of places, different use purposes and different usage scenarios to help you work more efficiently.

Features of OHSP handheld spectrometer

1. The lightweight and easy to carry handheld spectrometer makes impossible to possible.

2. Standalone and support PC connection, measure the light as you wish at anytime.

3. Intuitive user interface design, simple to use and makes professional data easy to learn.

  •  In-house RD team, one step production and direct sale service.
  •  Spectrum the professional spectrometer tool with Own software.
  •  Integration ability on optical, mechanical and electronic for customized service.
Packaging & Shipping

 PACKING :                                                                            SHIPPING:
Selling Units: Single item                                                                        DHL
Carton size:29*17*20cm                                                                         Fedex
Bag size:23*18*8cm                                                                               EMS
Package Type:In standard export carton packing                                  TNT.....
