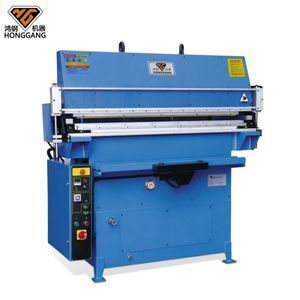

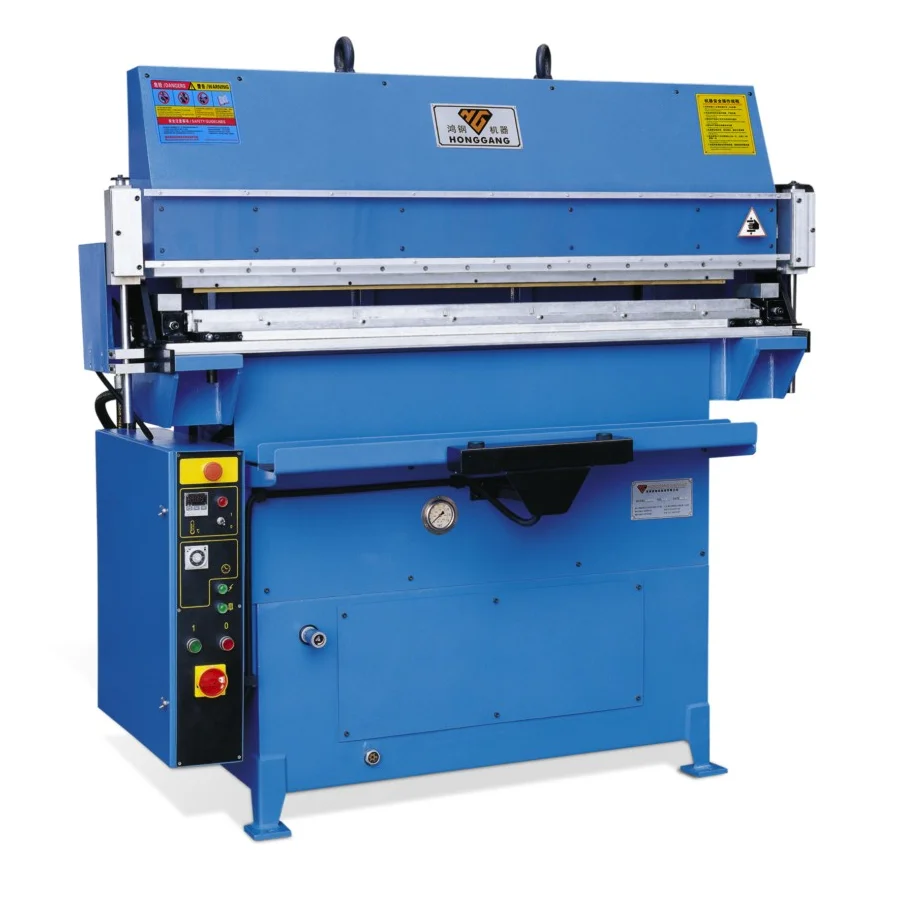

Belt Making Machine,belt plating machine

Product details
Place of Origin:Guangdong China;Port:guangzhou foshan shenzhen;
Dimension:1660*940*1810mm;Model Number:HONGGANG;
Power(W):4KW;Weight:1610KG;
cutting area:1350*60mm;Name:belt plating machine;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:Packaging Details: plastic film&wood case..;
Dimension(L*W*H):HG-E230T/A;Warranty:1.5YEARS;
Brand Name:HONGGANG;Voltage:220V/380V/415V;
motor:3kw;length:1350mm;
Payment Terms:L/C,T/T,Western Union;pressure:120tons;
Supply Ability:10 Set/Sets per Month belt machine;net weight:1610kg;
Certification:CE;Heater:0-135℃;
Delivery Detail:Shipped in 7 days after payment;Condition:New;

Belt Making Machine,belt plating machine

What Features of our belt plating machine ?

product:Belt plating Machinery/leather belt embossing machine/leather belt machinery/belt machine

Applications:it mainly appricable to leather belt,bag industry,special for leather belt steering wheel cover embossing.

pressure:120tons

motor:4kw

dimension:1650*1150*1700mm

net weight:1610kg

length:1350mm or 1600mm



     In order to save time, belt embossing machine is suitable for the full length belt embossing that is made by genuine leather or synthetic. You can get different designs by making moulds. This machine is with hydraulic system, simple structure, less problem or noise.Belt Making Machine,belt plating machine



Features:

1.Heating molds by heater to emboss.

2.Allowing belt designed into any unique patterns.

3.Heating time, heating temperatrue, pressure force, feeding rate can be adjusted.

4.Easy to set and unload plates.

What Specifications of our belt plating machine ?

ModelPressureMotorDimensionNet WeightLengthHeater
HG-E120T/A120TONS4KW1650*1150*1700MM1610KG1350MM2.1KW
HG-E120T/B120TONS4KW1900*1150*1700MM1810KG1600MM2.4KW

The Product Photos of  belt plating machine ?

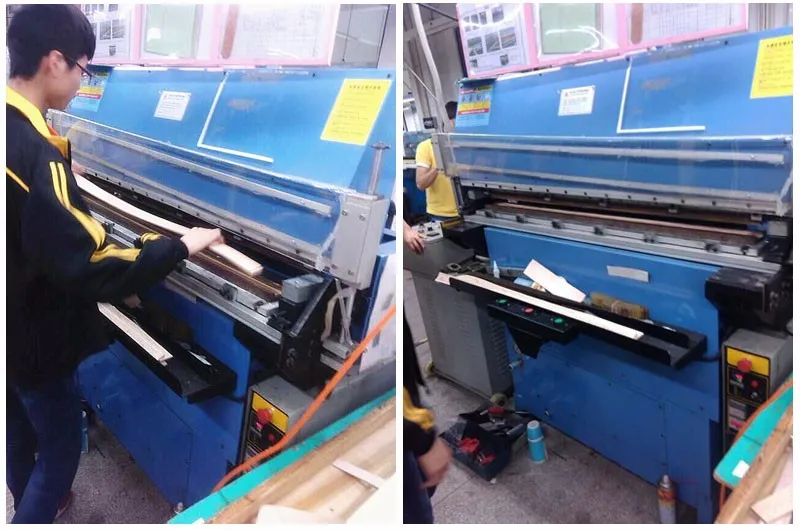

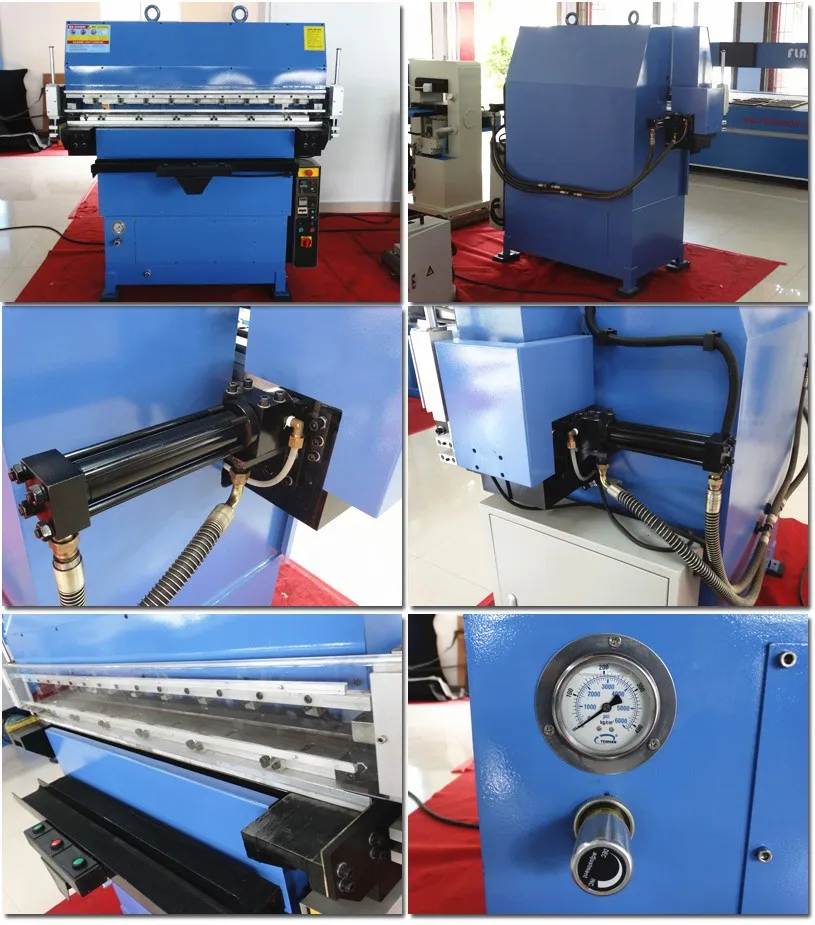

Detail:



Factory:

 Belt Making Machine,belt plating machine

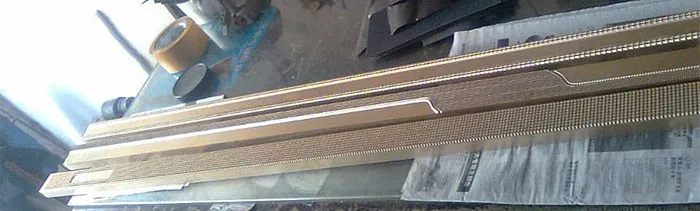

Embosssing Mould:

 Belt Making Machine,belt plating machine

 Belt Making Machine,belt plating machine

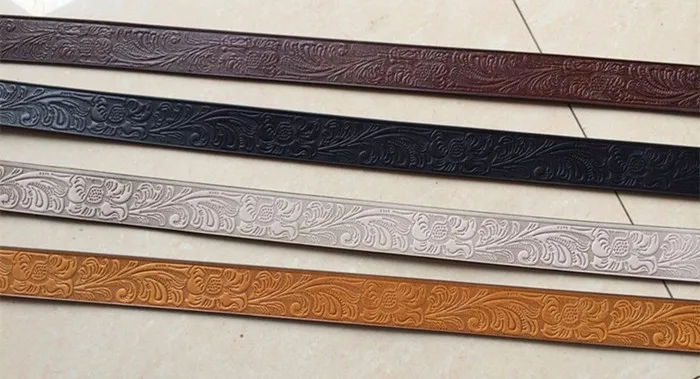

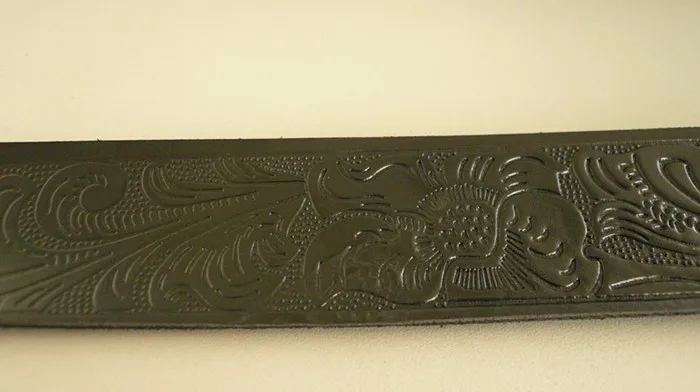

Product sample:

 Belt Making Machine,belt plating machine

 Belt Making Machine,belt plating machine
