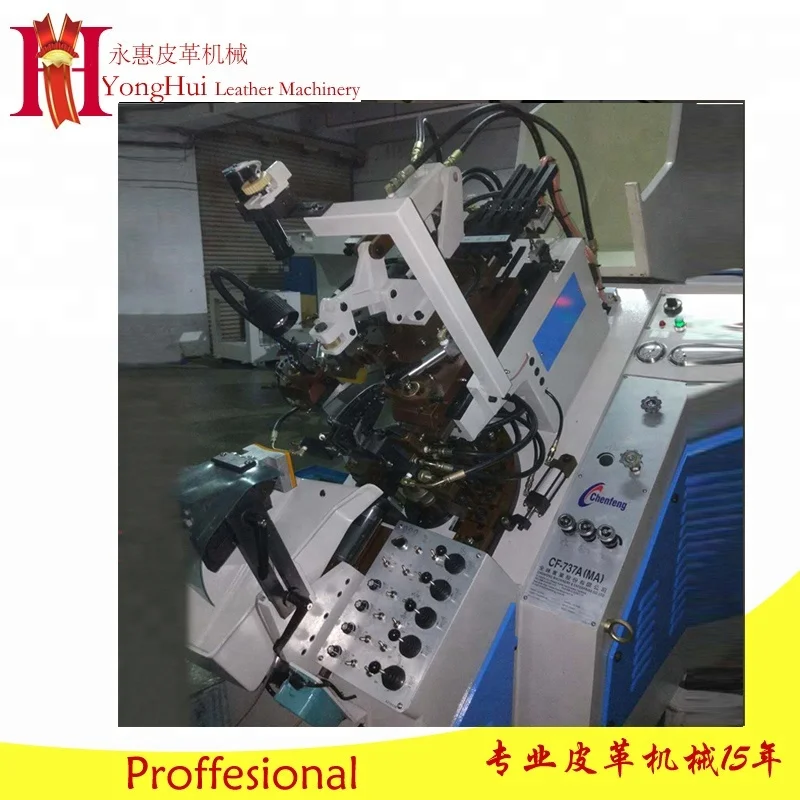

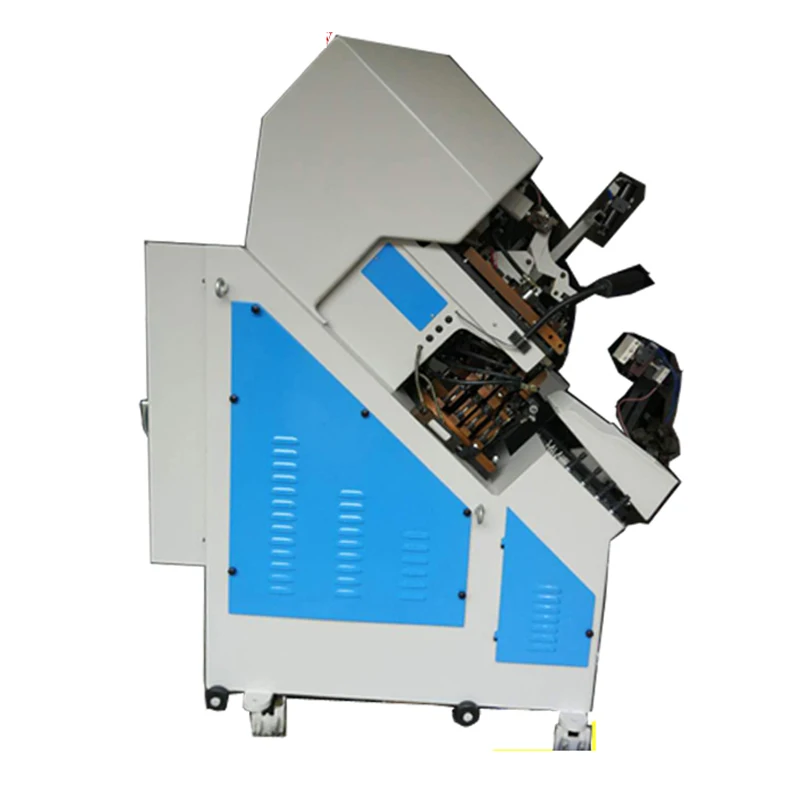

Chenfeng automatic glue toe lasting cementing machine 9 pincers CF737MA Shoe machine

hydraulic automatic toe lasting cementing machine CF-738MA shoe making machine

Product Description
Taiwan original toe last machine for shoes
Model number:CF-737A(MA)
Brand : Chen Feng







Widely used for all kinds of sports shoes toe lasting

1.      Computerized, it can save 100 groups shoes styles
2.      Auto-cementing
3.      Mid-pincer open fast
4.      Inner support rise speed can be adjusted
5.      Pressing-head floating can be adjusted
6.    Full-feature tensioner and wiper with special trace can ensure that the shoe surface presses tightly against the last after bonding without any angles, therefore adding to beauty and enhancing the bonding quality.

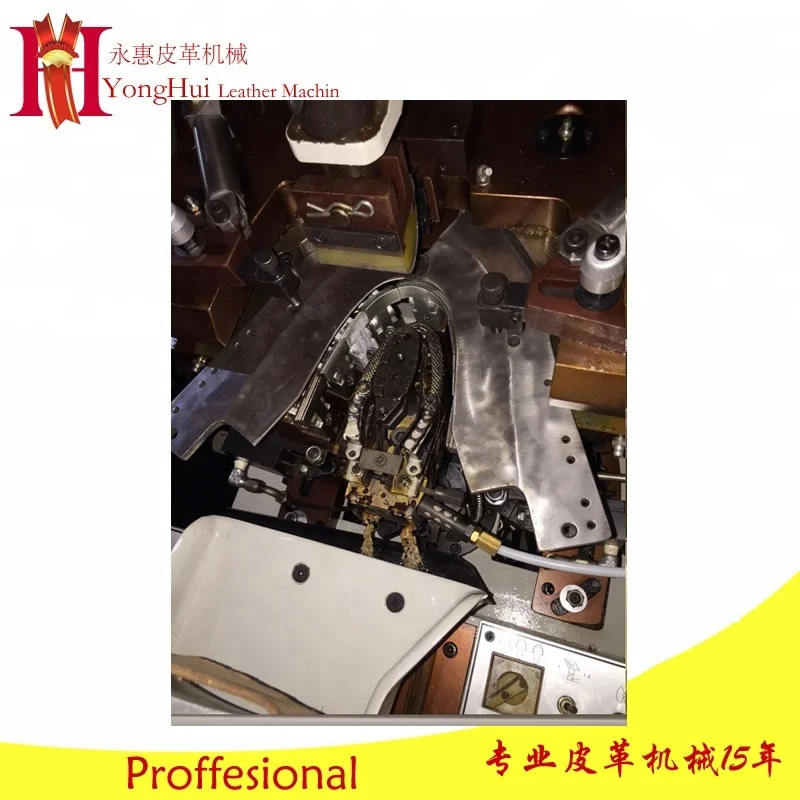

7.  The toe cap pressing mechanism adopts adjustable two-section type pressure with the design of master and slave cylinders, which enables the attaching during the lasting process of shoes and wipers and the final pressing of pressing head for one time pressing can make the lasting process be smooth. When locating, in comparison with soft leather materials, the occurrence of lengthening lasting distance and pull-down of front stop is not so easy to happen

8. Each group of claws has independent automatic pull-down function. According to the tightness of shoe surface, the required claws can be selected for automatic pull-down action and the pull-down depth can be adjusted if necessary

9. The nine-claw independent design can be separately adapted to the lasting of toe cap of any form. The principle of automatic balancing and automatic descending when the wiper moves forward is also the feature to increase product quality and enhance output.

10. The internal and external supporting tables have the functions of two-section rising for coordinating with heel seat supporting operation to prevent the occurrence of sliding of shoe last.

11. No tools is required during the adjustment of lasting action. It is provided with scale and location rule indication.

12. The selector switches for various actions are necessary for operations, and can be rapidly switched

13. The accessorial wiper is used to coordinate the nine-claw toe cap to make the lasting length of toe cap be lengthened to the front middle turning corner. After the lasting, the toe cap and shoe surface can be more tightly attached with the shoe last

14.Automatic gluling function for far lasting .

15.The nine claws can separately adjust the pressure,whih can be adjusted according to the tensile rength of shoe surfaceand it is not easy to damage the shoe surface.The pressure of the whole machine can be also adjusted on the external surface of the machine.

16.the claw disc has the two-section adjusting function,the two part can be automaticlly switched according to the parts of shoes .

Packaging & Shipping
a.The packing will use standard wooden case to ensure item not be damaged.
b.The shipping will confirm once the order is confirmed.




Company Information

Dong Guan Yong Hui Leather Machinery Co.,Ltd, was founded in 2005, and registed as a limited company in 2016. Located in the world's famous footware manufacturing base---Houjie Town Dongguan Guangdong province China.
We specialized in all kinds of computerized sewing machiney, and reconditioned Iitalian Atom
 leather cutting machiner, together with other brand, such as Camoga and Fortuna leather machine, embossing machinery and other related shoes making machinery. we have proffesional production team, high quality suppler,experienced maintenance and recondition
staff. We have our own warehouse,it's taking up about 1200 square meters. And we have a physical
 store which takes up about 200 square meters. We provide high quality machinery with reasonable price and perfect after-sales service.

Contact:

DongGuan YongHui Leather machinery Co., Ltd.
International department:
Features:

1. Hydraulic operation system.
2. Each set of pincer can be setting with automatic pulling or manual operation.
3 .This machine is suitable for lasting the shoes with general and soft midsoles and with the heels less than 180mm.
4. This machine is equipped with micro switch of lasting height, which makes the machine easily adjusted and find position accurately.

 We can supply all the equipments for Shoe factory. Whatever machine you want for shoe makingplease contact us.

All machines are reconditioned and in very good working conditioned

Application:

Shoe factory

Package and shipping:

Standard packing

Dong Guan Yong Hui Leather Machinery Co., Ltd, was founded in 2002, and registed as a limited company in 2016. Located in the world's famous footware manufacturing base---Houjie Town Dongguan Guangdong province China.

We are mainly supply with shoe making machine and bag making machine. We have our warehouse and selling team in China. Our warehouse is taking up about 1200 square meters. And we have a physical store which takes up about 200 square meters. Our main products are leather cutting machine, sewing machine, and all kinds of shoe making machines.We are also agent of new JUKI sewing machine and reconditioned Italian Atom Leather cutting machine, embossing machine, oil edge machine, skiving, splitting and hammer punching machine, together with other brand, such as Camoga and Fortuna leather machine, embossing machinery and other related shoes making machinery. We can provide full set machines for shoe factory and bag/case luggage making factory.


Our company has consistently adhered to a "customer first, quality first, reputation first,serve first"  principle
