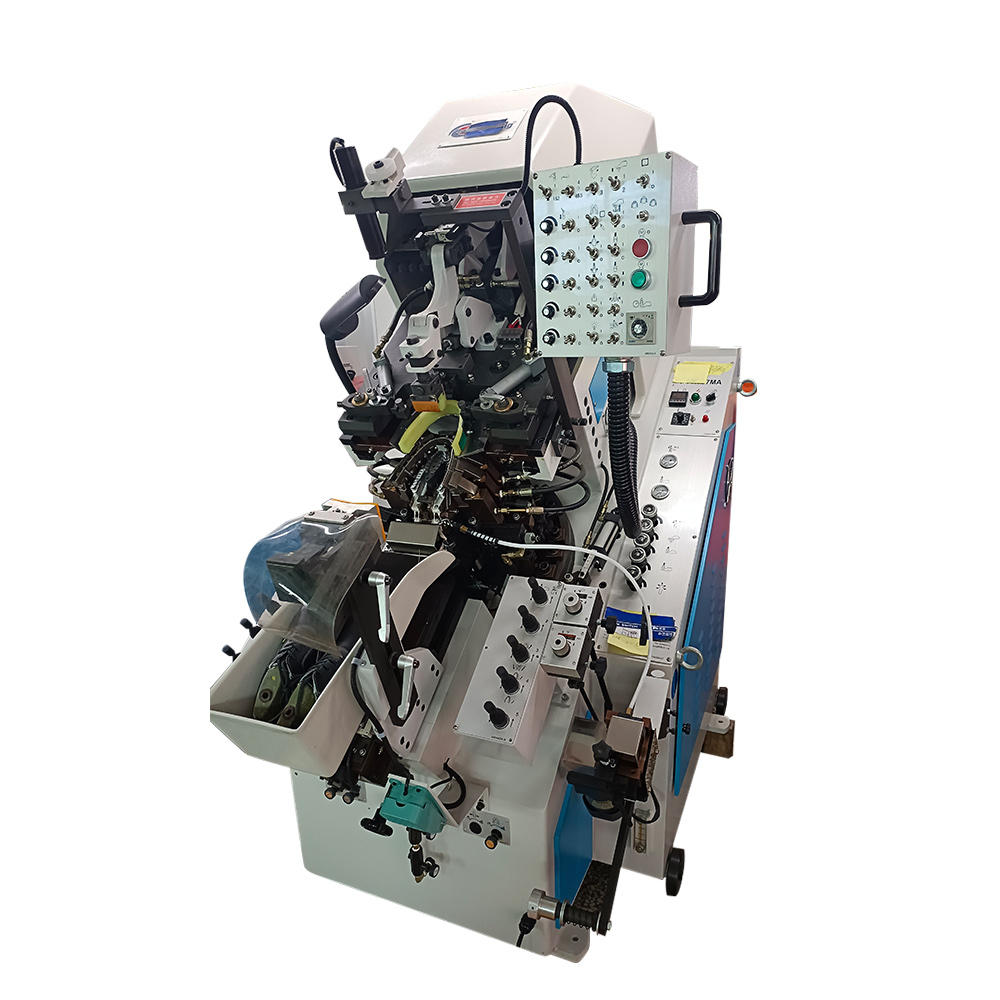

Hydraulic Automatic Sports Shoes School Shoes Back Knot Shoe Making Machine

Widely used in the back of various sports shoes 1. Computer control, can save 100 sets of shoe shapes 2. Automatic gluing 3. Quick opening of the middle clamp 4. The rising speed of the inner support is adjustable 5. The pressure head can be adjusted by floating 6. The full-featured tensioner and the special textured scraper ensure that the vamp is close to the shoe tree after being fitted, without any angle, which is both beautiful and improves the fitting quality. 7. The Baotou pressing mechanism adopts an adjustable two-stage pressure, and the master-slave oil cylinder is designed to make the shoes and wipers fit together in the process of forming the upper. When positioning, compared with soft leather materials, it is less prone to elongation, elongation and pull-down of the front block. 8. Each set of claws has an independent automatic pull-down function. According to the degree of tightness of the upper, you can select the desired claws for automatic pull-down action, and the pull-down depth can be adjusted according to your needs. The principle of automatic balance and automatic descent when the wiper advances is also a feature to improve product quality and increase output. 10. The inner and outer support platforms have a two-stage rising function, which cooperates with the heel seat support operation to prevent the shoe last from sliding. 11. No tools are required for upper movement adjustment. It has proportional and positional rule indications. 12. Various action selection switches are necessary for operation and can be switched quickly. 13. The supporting wiper is matched with the nine-claw Baotou, so that the lasting length of the Baotou is extended to the front middle corner. After persistence, to
