Slider Stroke (mm): | 300; | Main Motor: | Siemens; |
CNC system: | Delem/Estun; | Key Selling Points: | Competitive Price; |
Single gross weight: | 6,000 KG; | Length of Working Table (mm): | 6000; |
Condition: | New; | Applicable Industries: | Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining; |
After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Material / Metal Processed: | Brass / Copper,Stainless Steel,ALLOY,Carbon Steel,Aluminum; |
Selling Units: | Single item; | Automation: | Automatic; |
Certification: | ce; | Throat Depth (mm): | 400; |
Brand Name: | Huantu Machinery; | Nominal Pressure (kN): | 1000; |
Hydraulic system: | Bosch Rexroth; | Weight (KG): | 7000; |
Warranty: | 5 years; | Dimension: | Model Different; |
Single package size: | 330X180X200 cm; | Width of Working Table (mm): | 450; |
Automatic Level: | Fully Automatic; | Machine Type: | Torsion Bar; |
Extra Services: | End Forming; | Package Preview: | https://sc01.alicdn.com/kf/HTB1eUf0aIfrK1RkSmLyq6xGApXa7.jpg_640x640.jpg; |
Motor Power (kw): | 7.5; | Electric system: | Siemens; |
Place of Origin: | Shanghai China; |

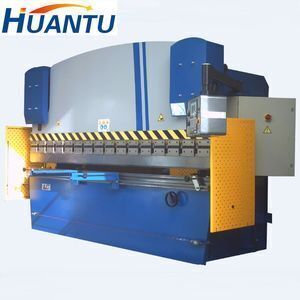

WC67Y full cnc press brake, guillotine hydraulic press brakes, hand bend tool
1. steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity
2. hydraulic top-drive,steadiness and reliability, mechanical stop,steel torsion bar to maintain synchronization
3. motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel, numerical display
4. using travel limit protection, full machine guarding with safety interlocker
5. two cylinders controlling beams vertical moving
6. using mechanical torsion synchronization
7. using Integration hydraulic system
8. using standard punches and dies
9. using hanging arm control panel
10. using foot pedal with emergency stop
WC67Y full cnc press brake, guillotine hydraulic press brakes, hand bend tool
Model WC67Y | Nominal Pressure | Length of Working Table | Distance between uprights | Throat depth | Ram Stroke | Main Motor Power |
(kn) | (mm) | (mm) | (mm) | (mm) | (kw) | |
63/2500 | 630 | 2500 | 2020 | 250 | 120 | 5.5 |
63/3200 | 630 | 3200 | 2520 | 250 | 120 | 5.5 |
80/3200 | 800 | 3200 | 3020 | 320 | 120 | 7.5 |
100/3200 | 1000 | 3200 | 2520 | 320 | 120 | 7.5 |
125/4000 | 1250 | 4000 | 3020 | 400 | 120 | 7.5 |
160/3200 | 1600 | 3200 | 2520 | 320 | 200 | 11 |
160/6000 | 1600 | 6000 | 4850 | 400 | 200 | 15 |
200/4000 | 2000 | 4000 | 3020 | 400 | 200 | 15 |
200/6000 | 2000 | 6000 | 4850 | 400 | 200 | 15 |
250/3200 | 2500 | 3200 | 2520 | 400 | 250 | 18.5 |
250/4000 | 2500 | 4000 | 3020 | 400 | 250 | 18.5 |
300/4000 | 3000 | 4000 | 3020 | 400 | 250 | 22 |
300/6000 | 3000 | 6000 | 4850 | 400 | 250 | 22 |
400/6000 | 4000 | 6000 | 4850 | 400 | 250 | 30 |
500/6000 | 5000 | 6000 | 4850 | 400 | 300 | 37 |
600/7000 | 6000 | 7000 | 5600 | 400 | 300 | 45 |
1000/8000 | 10000 | 8000 | 6000 | 500 | 450 | 2*37 |
